Fuel Tank Heat Shield Replacement

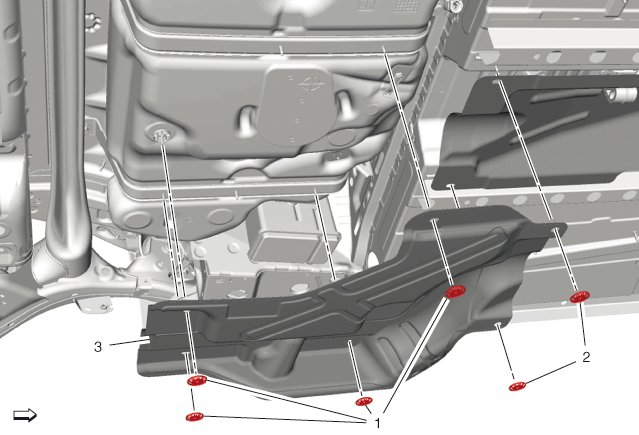

| Callout | Component Name |
|---|---|
| Preliminary Procedure Exhaust System Replacement |
|
| 1 | Fuel Tank Heat Shield Retainer [4x] |
| 2 | Exhaust Heat Shield Retainer [2x] |
| 3 | Fuel Tank Heat Shield Procedure Take care and slightly bent down the rear of the exhaust muffler heat shield in order to remove the fuel tank heat shield. |
