Installation Procedure

  1. Install the battery vent tube along with the grommet (2) to the battery tray.

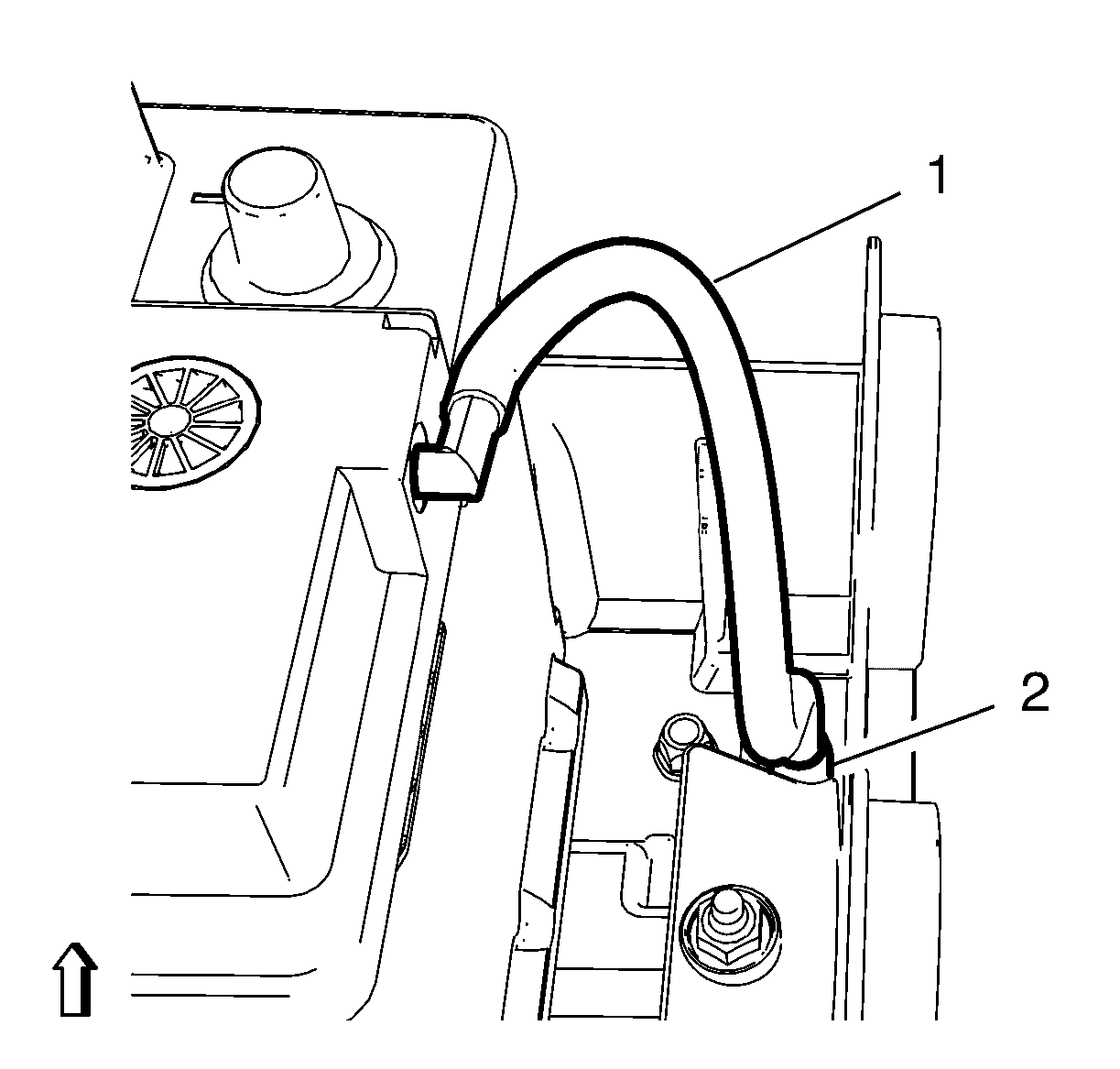

    Fig 1: Battery Vent Tube
    GM3684429Courtesy of GENERAL MOTORS COMPANY
  2. Install the battery tray along with the vent tube. Refer to Battery Tray Replacement .
  3. Install the battery vent tube (1) to the battery.
  4. Battery Negative Cable Disconnection and Connection » Install
