Radio Control Switch Replacement - Steering Wheel

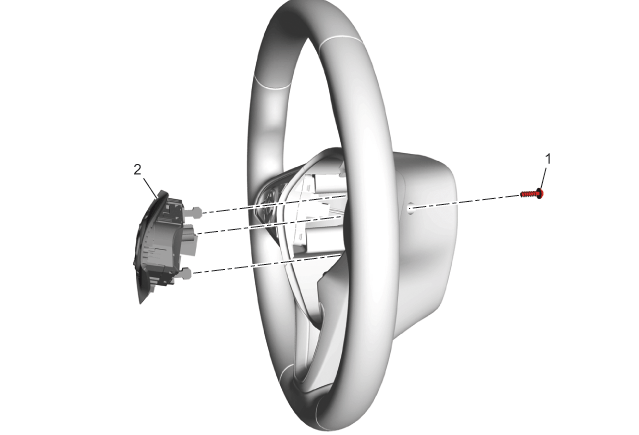

Fig 1: Radio Control Switch - Steering Wheel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Steering Wheel Airbag Replacement
1	Radio Control Switch Bolt CAUTION: Fastener Caution Tighten 0.8 N.m (7.1 lb in)
2	Radio Control Switch Procedure Unlock the retaining tabs. [2x] Disconnect the electrical connector.

Callout

Component Name

Radio Control Switch Bolt

CAUTION: Fastener Caution

Tighten
0.8 N.m (7.1 lb in)

Radio Control Switch

Procedure
