Installation Procedure

  1. Position the NEW wheel stud (1) in the flange on the hub assembly.

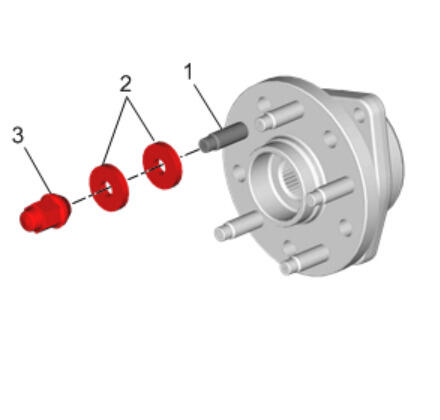

    Fig 1: Wheel Stud, Flat Washers And Wheel Nut
    GM3989815Courtesy of GENERAL MOTORS COMPANY
  2. Install flat washers (2) and an OLD wheel nut (3) on the wheel stud.
  3. Use a suitable tool to prevent the flange on the hub assembly from rotating.
  4. Tighten the wheel nut until the wheel stud is firmly seated.
  5. Remove the wheel nut and flat washers.
  6. Front Wheel Bearing and Hub Assembly» Install - Front Wheel Bearing and Hub Replacement
