Driver or Passenger Seat Lumbar Control Switch Replacement
WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the driver or passenger seat outer recliner finish cover. Refer to Driver or Passenger Seat Outer Recliner Finish Cover Replacement (Power) and Driver or Passenger Seat Outer Recliner Finish Cover Replacement (Manual) |
|

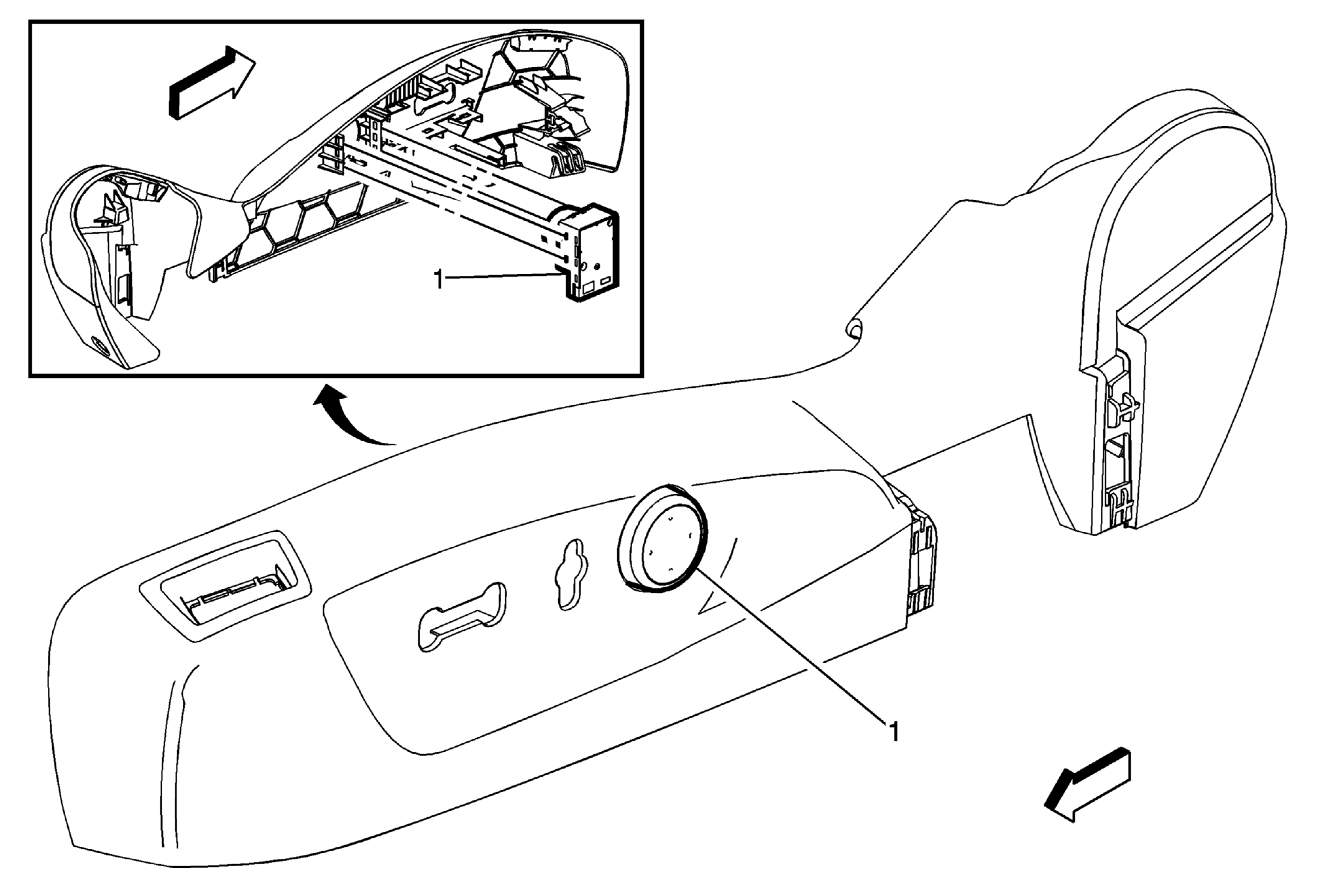

| 1 | Driver or Passenger Seat Lumbar Control Switch Procedure Use a flat-bladed tool to release the lumbar control switch from the adjuster finish cover. |
