Section 56 (Secondary And Configurable Customer Control System)
>>
Schematic Wiring Diagrams
>>
Steering Wheel Secondary/Configurable Control Wiring Schematics
>>
Steering Wheel Secondary/Configurable Controls
Steering Wheel Secondary/Configurable Controls
WARNING:
This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

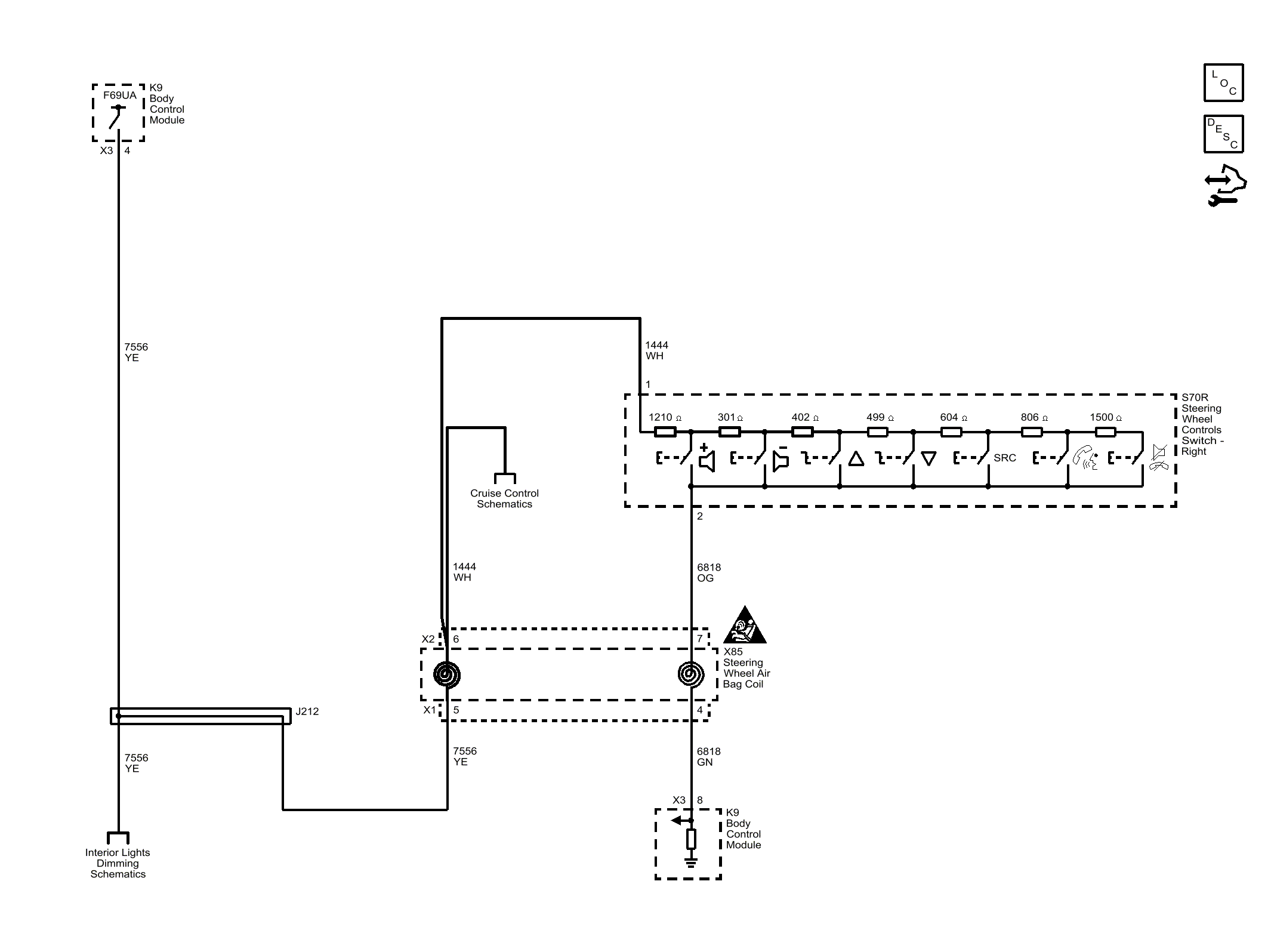

Fig 1: Steering Wheel Secondary/Configurable Controls
Courtesy of GENERAL MOTORS COMPANY
