Installation Procedure
WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.
- If installing a new brake rotor, clean the friction surfaces of the brake rotor with denatured alcohol or equivalent.
- Using the CH-42450-A Wheel Hub Resurfacing Kit, thoroughly clean any rust or corrosion from the mating surface of the hub/axle flange.
- Using the CH-41013 Rotor Resurfacing Kit, thoroughly clean any rust or corrosion from the mating surface of the rotor to the hub/axle flange.

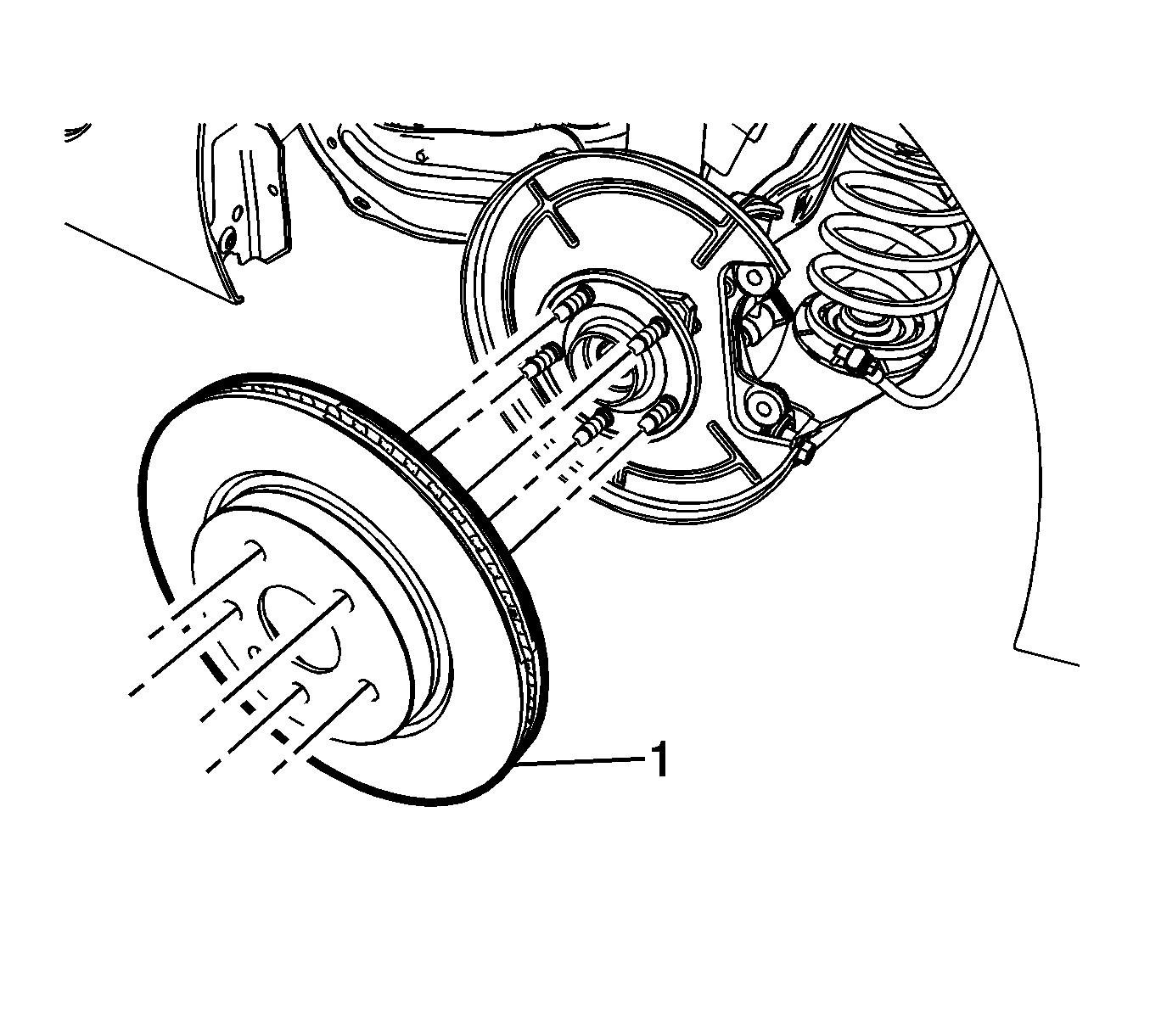

- Install the rear brake rotor (1).

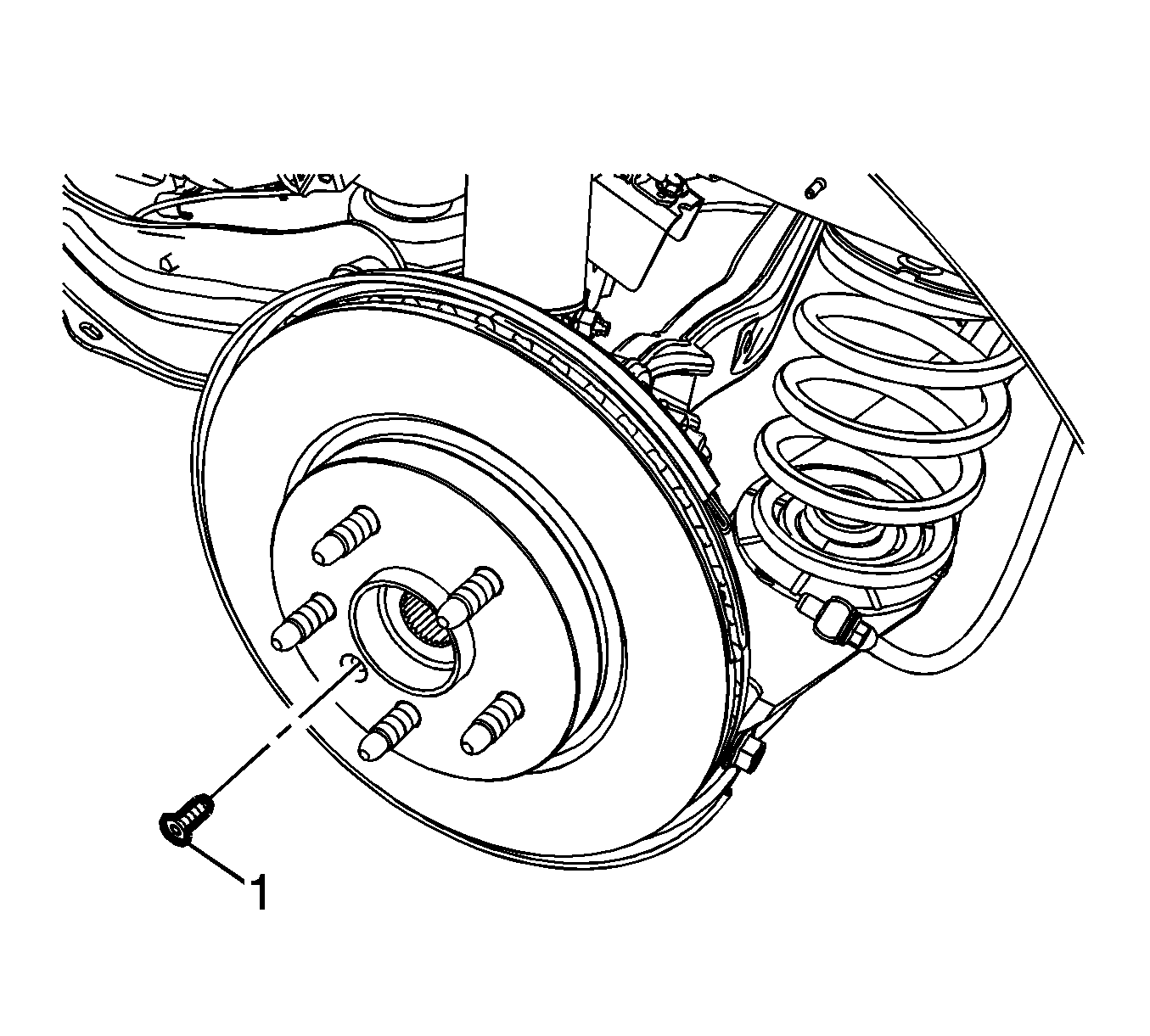

- Install the brake rotor bolt (1) and tighten to 7 N.m (62 lb in).
CAUTION: Refer to Fastener Caution .
- Install the brake caliper and bracket assembly.
- Install new brake caliper bracket bolts (1) and tighten to 100 N.m + 60 degrees (74 lb ft + 60 degrees).
NOTE: Do not reuse the brake caliper bracket bolts.
- Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
- Burnish the brake pads and rotors. Refer to Brake Pad and Rotor Burnishing .
