Installation Procedure

WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

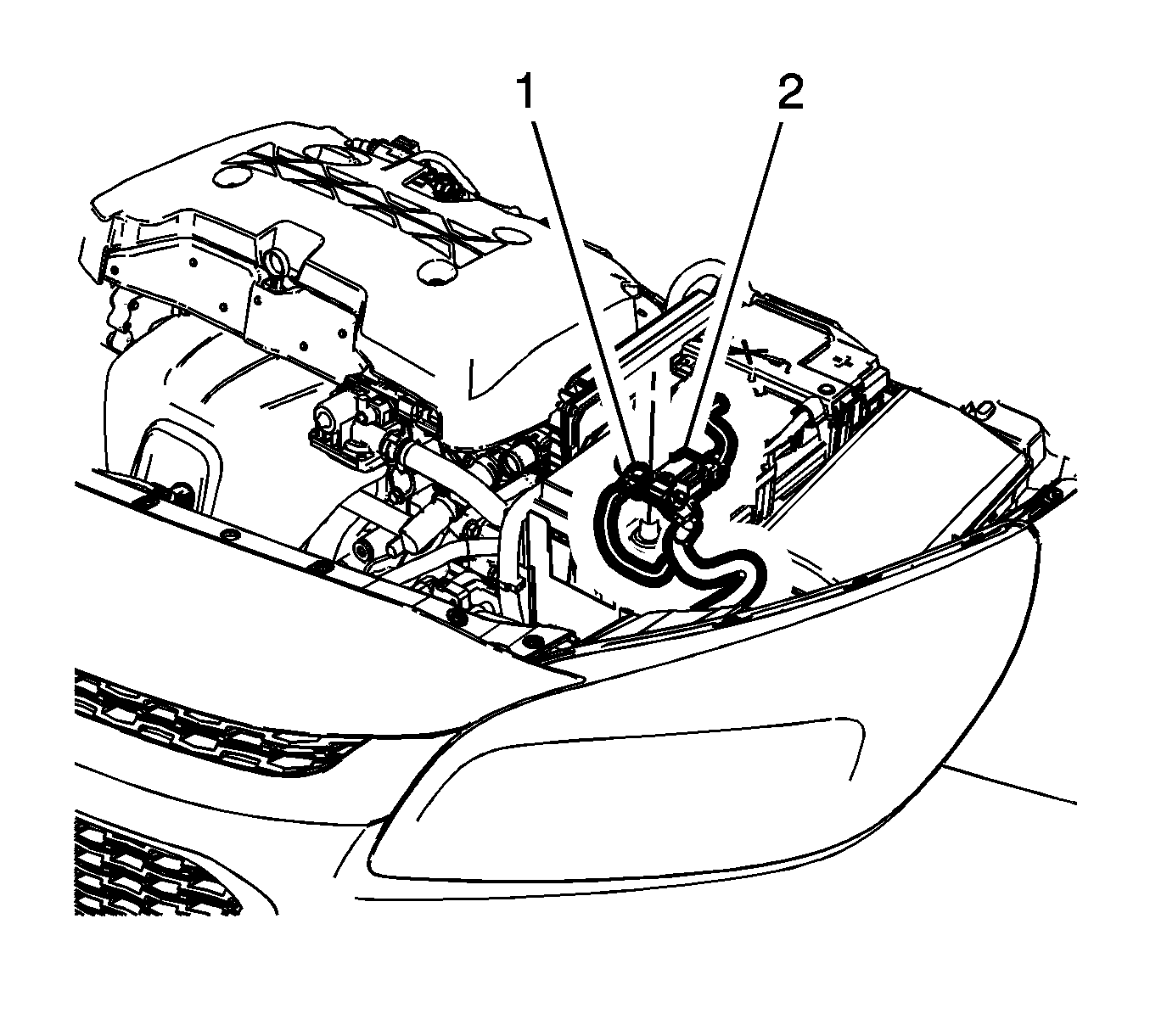

Install the battery negative cable (2) to the negative battery post and tighten the clamp fastener (1) to 6 N.m (53 lb in).

Fig 1: Battery Negative Cable & Clamp Fastener
Courtesy of GENERAL MOTORS COMPANY

CAUTION: Refer to Fastener Caution .
Install the battery cover (1).

Fig 2: Battery Cover
Courtesy of GENERAL MOTORS COMPANY

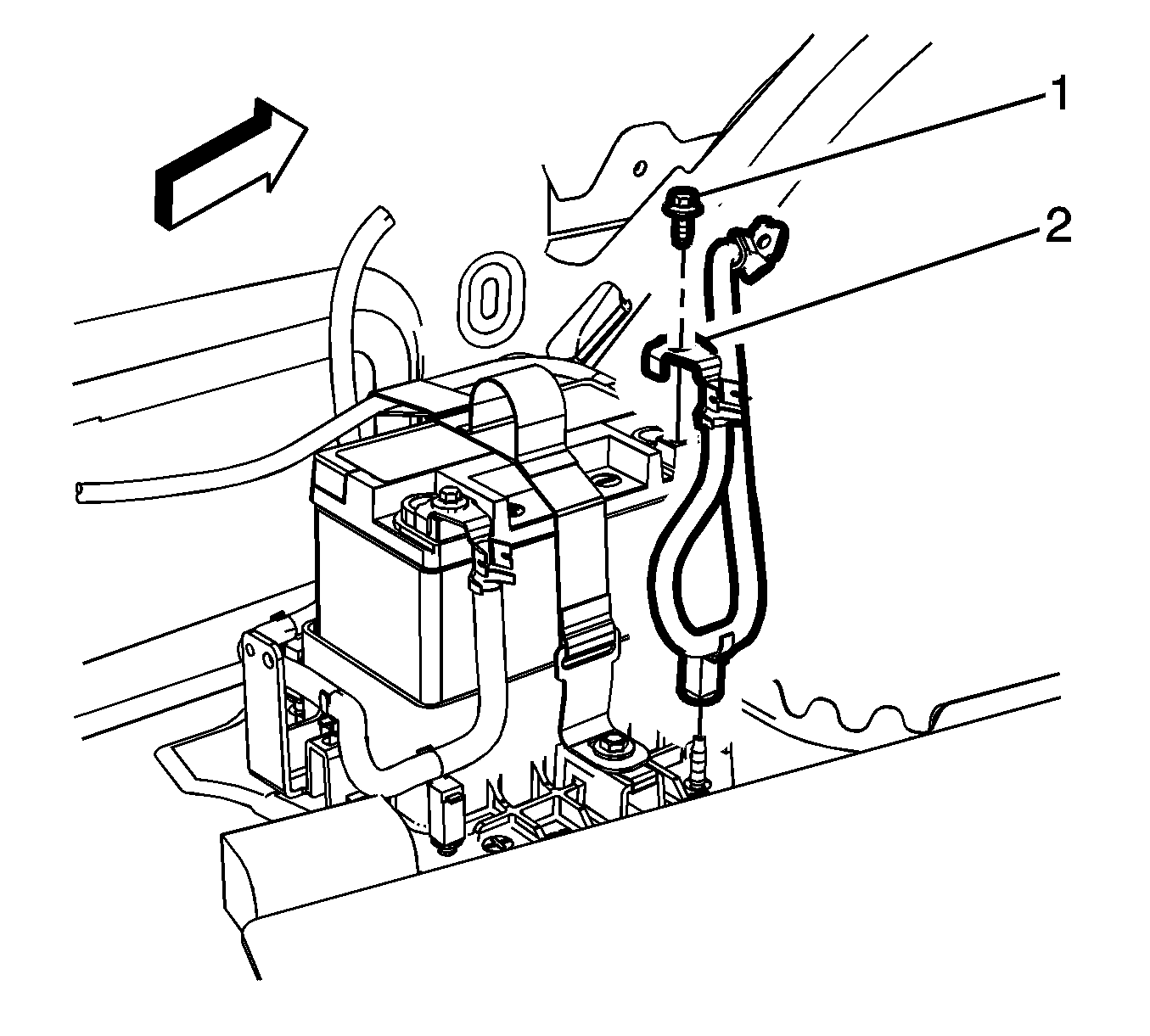

Install the auxiliary battery negative cable (2), to the battery negative post and tighten the fastener (1) to 4.5 N.m (40 lb in).

Fig 3: Auxiliary Battery Negative Cable & Fastener
Courtesy of GENERAL MOTORS COMPANY
Install the rear compartment side trim battery access cover.
Set the engine oil life and radio station pre-sets.
