Windshield Wiper and Washer Switch Replacement

WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

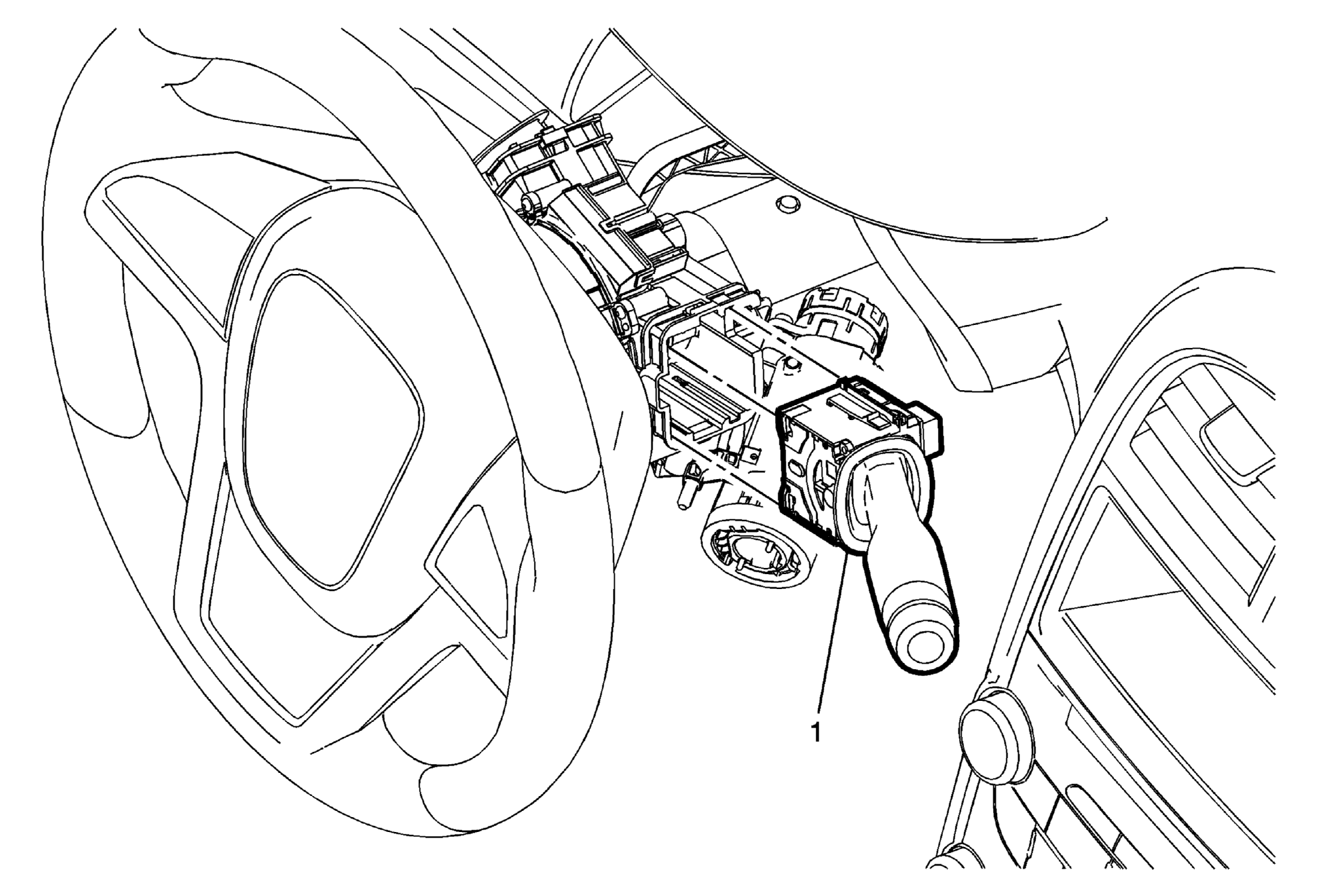

Fig 1: Windshield Wiper and Washer Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the steering column upper trim cover. Refer to Steering Column Upper Trim Cover Replacement . If equipped with BTM, remove the steering column lower trim cover. Refer to Steering Column Lower Trim Cover Replacement . If not equipped with BTM, remove the ignition lock cylinder bezel. Refer to Ignition Lock Cylinder Bezel Replacement (Without BTM) .
1	Windshield Wiper and Washer Switch Procedure Disconnect any electrical connectors. Release the retaining tabs and remove the windshield wiper and washer switch from the turn signal switch bracket.

Callout

Component Name

Preliminary Procedures

Remove the steering column upper trim cover. Refer to Steering Column Upper Trim Cover Replacement .
If equipped with BTM, remove the steering column lower trim cover. Refer to Steering Column Lower Trim Cover Replacement .
If not equipped with BTM, remove the ignition lock cylinder bezel. Refer to Ignition Lock Cylinder Bezel Replacement (Without BTM) .

Windshield Wiper and Washer Switch

Procedure

Disconnect any electrical connectors.
Release the retaining tabs and remove the windshield wiper and washer switch from the turn signal switch bracket.
