Installation Procedure

Install the turbocharger wastegate regulator solenoid valve (1).

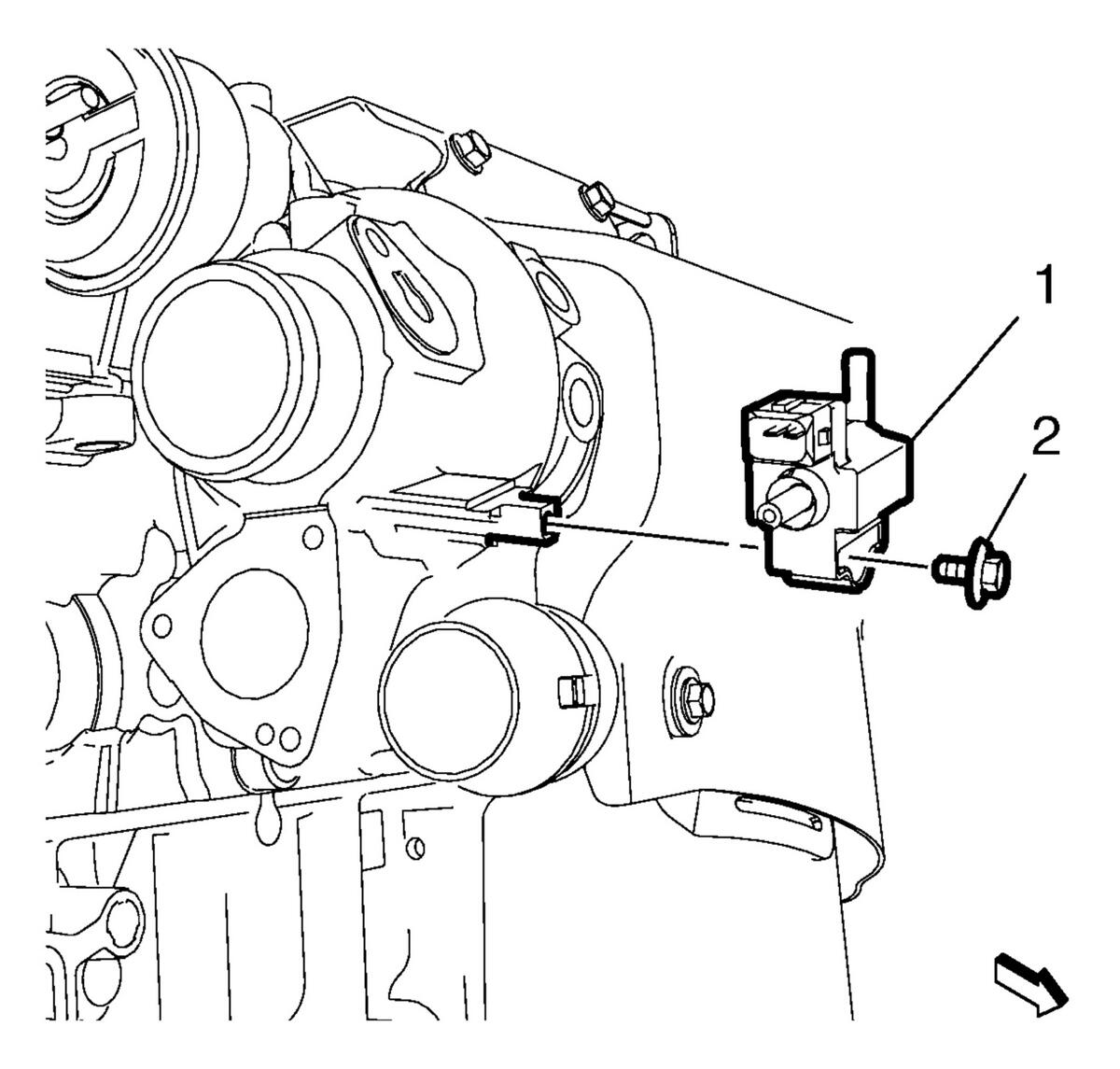

Fig 1: Turbocharger Wastegate Regulator Solenoid
Courtesy of GENERAL MOTORS COMPANY
Install the turbocharger wastegate regulator solenoid valve bolt (2) and tighten to 5 N.m (44 lb in).
CAUTION: Refer to Fastener Caution .
Install the 3 turbocharger wastegate regulator solenoid valve hoses (1, 3, 7) to the turbocharger wastegate regulator solenoid valve (5).

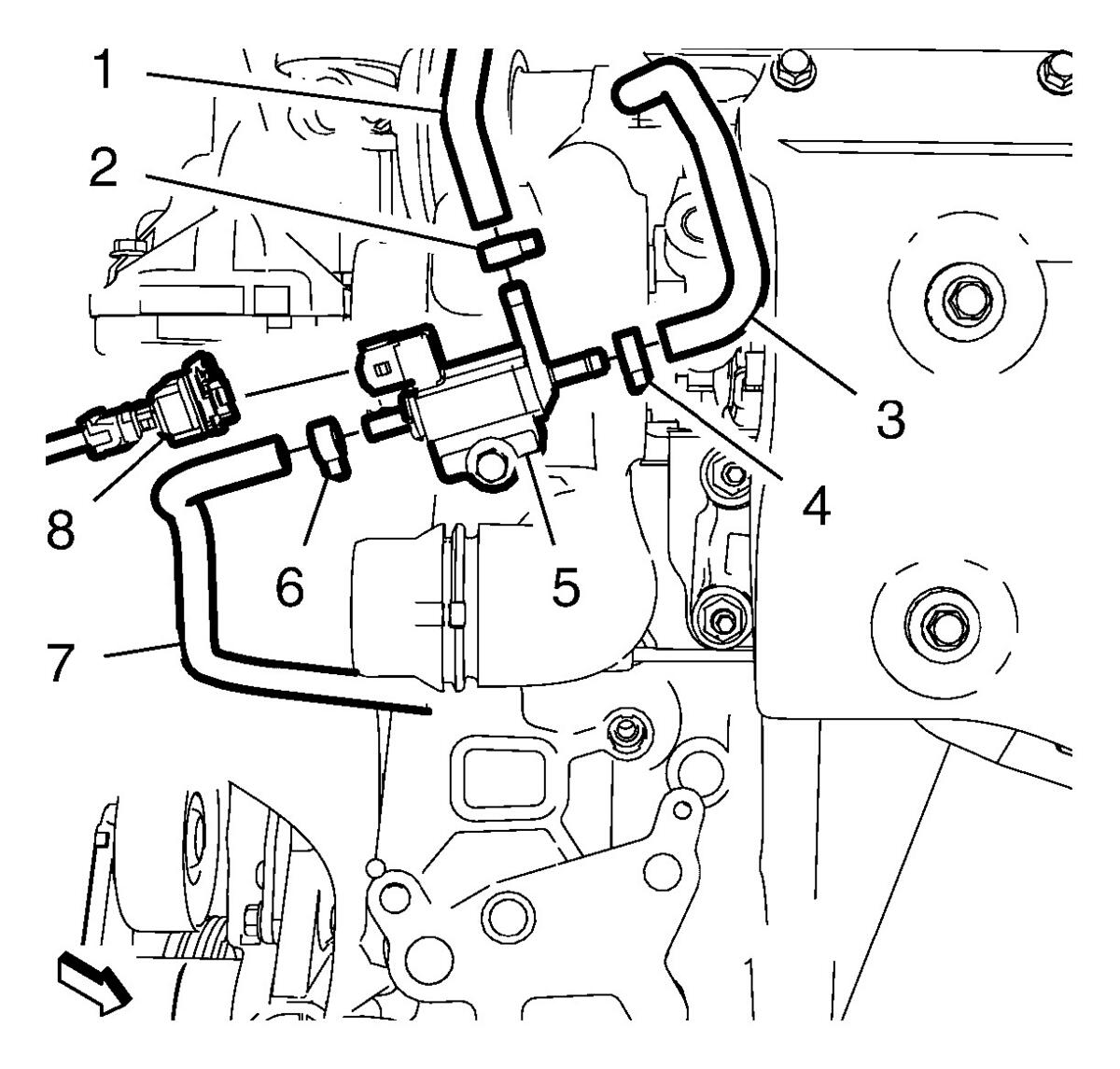

Fig 2: Turbocharger Wastegate Regulator Solenoid Valve Components
Courtesy of GENERAL MOTORS COMPANY
Install the 3 turbocharger wastegate regulator solenoid valve hose clamps (2, 4, 6).
Connect the turbocharger wastegate regulator solenoid valve wiring harness plug (8) to the turbocharger wastegate regulator solenoid valve (5).
Air Cleaner Outlet Duct Replacement » Install
Battery Negative Cable Disconnection and Connection » Connect
