Turbocharger Bypass Valve Solenoid Replacement

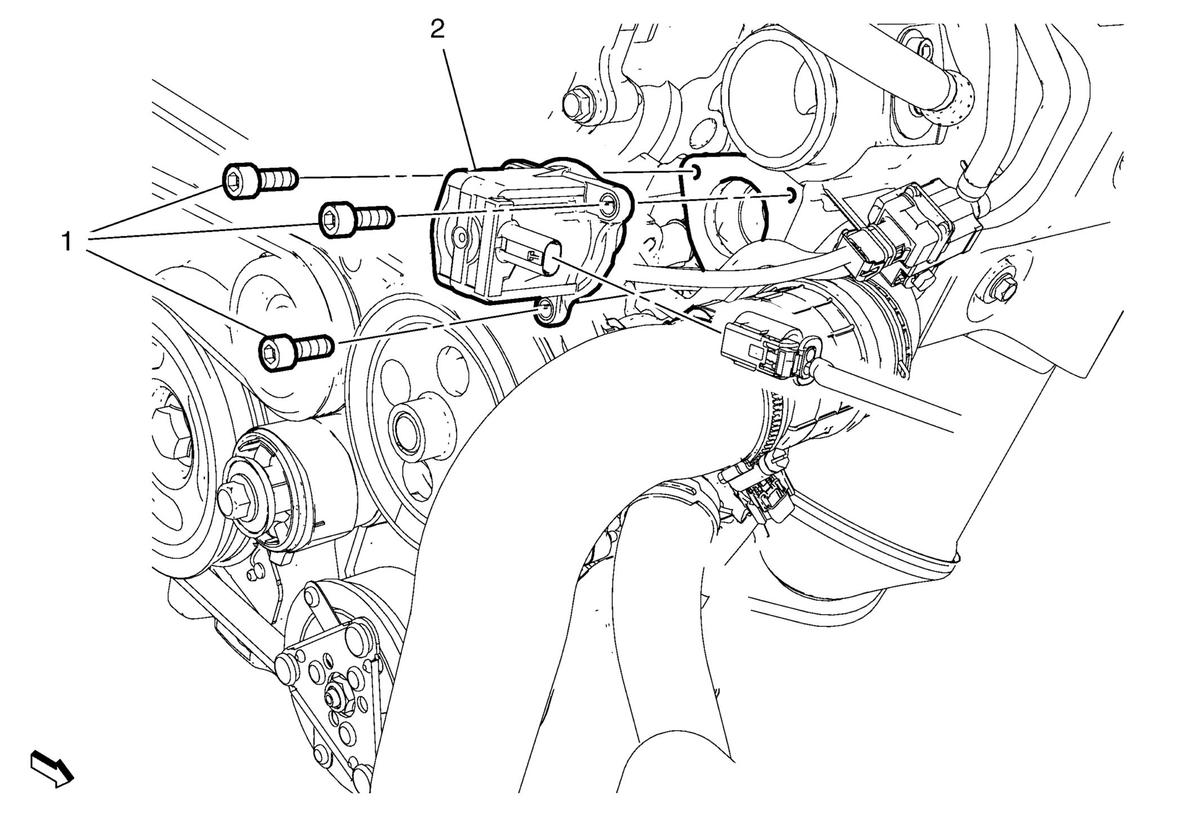

Fig 1: Turbocharger Bypass Valve Solenoid

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Air Cleaner Outlet Duct Replacement
1	Turbocharger Bypass Valve Solenoid Bolt [3x] CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
2	Turbocharger Bypass Valve Solenoid Procedure  Disconnect the electrical connector.
