Installation Procedure

Position the charge air cooler inlet hose (3) to the engine.

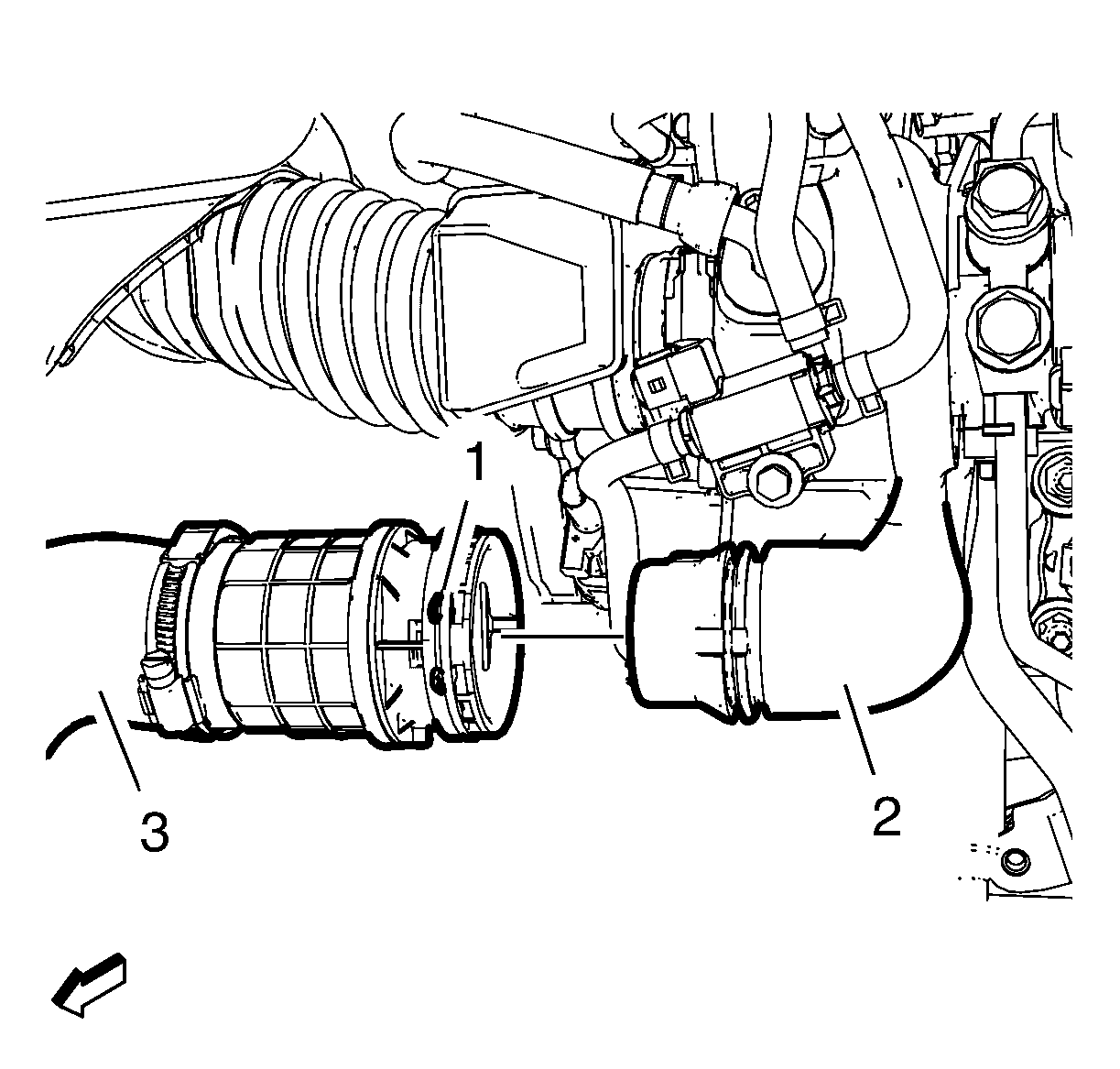

Fig 1: Charge Air Cooler Inlet Hose And Quick Connector
Courtesy of GENERAL MOTORS COMPANY
Charge Air Cooler Inlet Hose (3) @ Turbocharger (2)» Install
Charge Air Cooler Inlet Hose Quick Connector (1)» Connect
Charge Air Cooler Inlet Hose (3) @ Charge Air Cooler (1)» Install

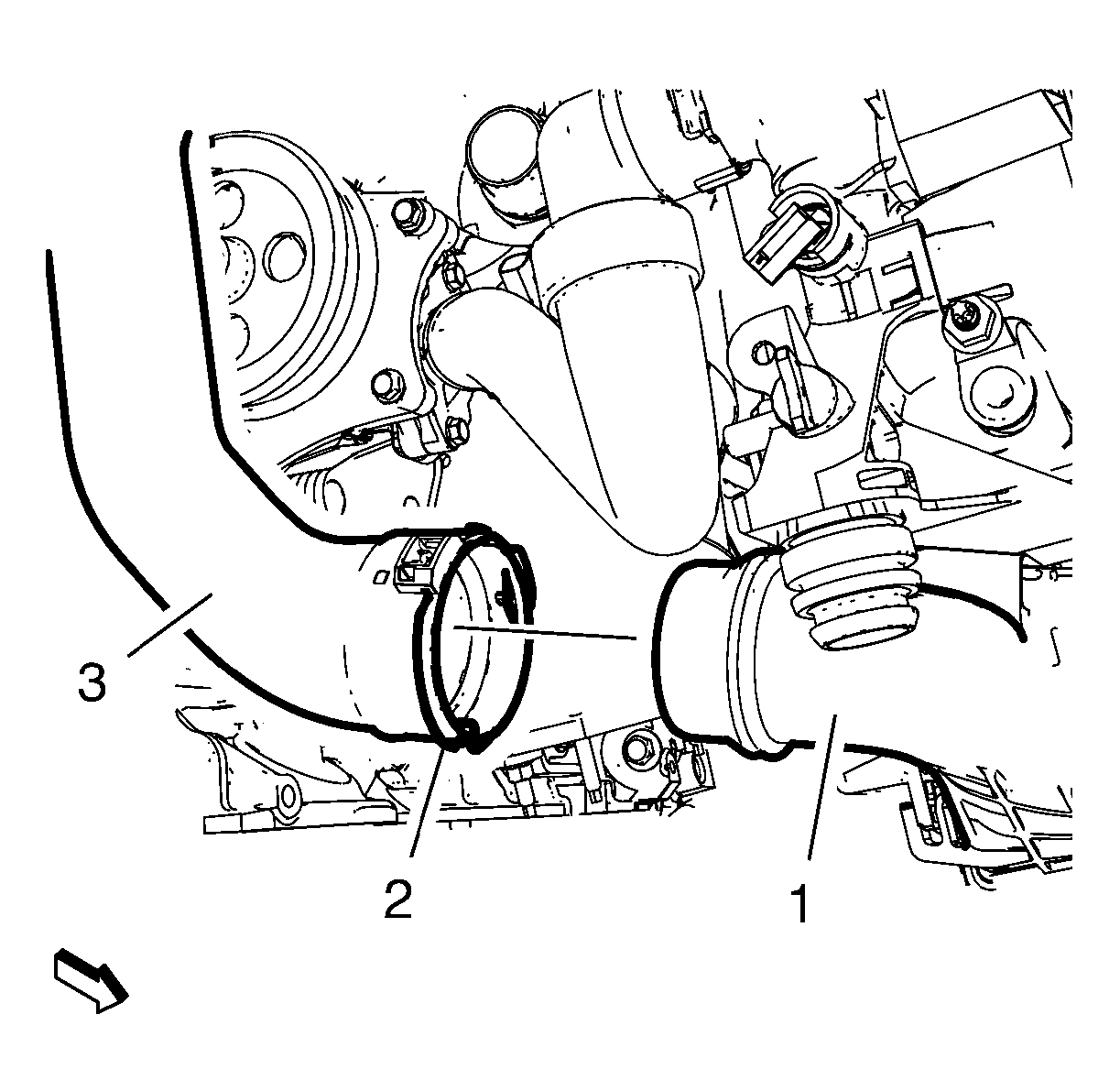

Fig 2: Charge Air Cooler, Inlet Hose And Quick Connector
Courtesy of GENERAL MOTORS COMPANY
Charge Air Cooler Inlet Hose Quick Connector (2)» Connect
Front Bumper Fascia Extension Replacement » Install
Front Compartment Splash Shield Replacement » Install
Battery Negative Cable Disconnection and Connection » Connect
