Installation Procedure

  1. Exhaust Front Pipe Gasket (1)» Install NEW

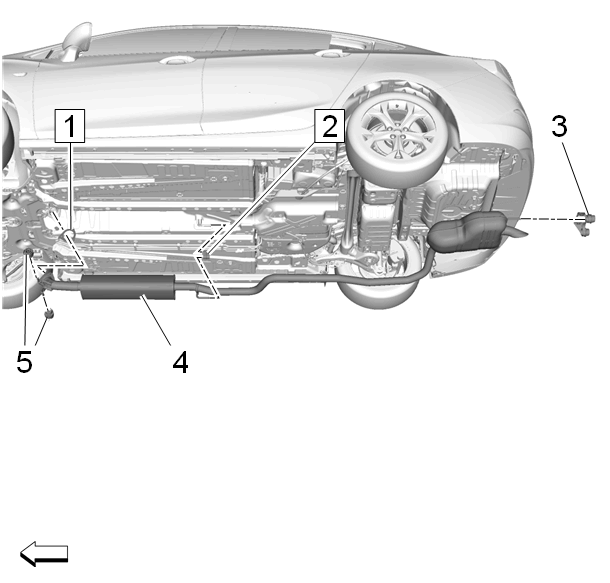

    Fig 1: Exhaust System, Exhaust Muffler Insulator, Exhaust Rear Muffler Insulator And Exhaust Front Pipe Gasket
    GM4704329Courtesy of GENERAL MOTORS COMPANY
  2. Exhaust Rear Muffler Insulator (3)» Install NEW
  3. Exhaust Muffler Insulator (2, 5)» Install NEW [3x]
  4. Exhaust System (4)» Install
    NOTE: A second technician is required.
  5. Support the exhaust system.
  6. Install the 2 exhaust muffler hanger bracket nuts (1) and tighten to 22 N.m (16 lb ft).
    Fig 2: Exhaust Muffler Hanger Bracket Nuts
    GM4247020Courtesy of GENERAL MOTORS COMPANY
    CAUTION: Fastener Caution
  7. Exhaust Muffler Insulator Nut (2)» Install and tighten 22 N.m (16 lb ft) [2x]
    Fig 3: Front Exhaust Flange Nuts And Exhaust Muffler Insulator Nuts
    GM4121564Courtesy of GENERAL MOTORS COMPANY
  8. Install the 3 front exhaust flange nuts (1) and tighten to 22 N.m (16 lb ft).
  9. Lower the vehicle.
