Removal Procedure

Battery Negative Cable» Disconnect - Battery Negative Cable Disconnection and Connection
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
Exhaust Front Pipe» Remove - Exhaust Front Pipe Replacement
Disconnect the starter wiring harness plug (2).

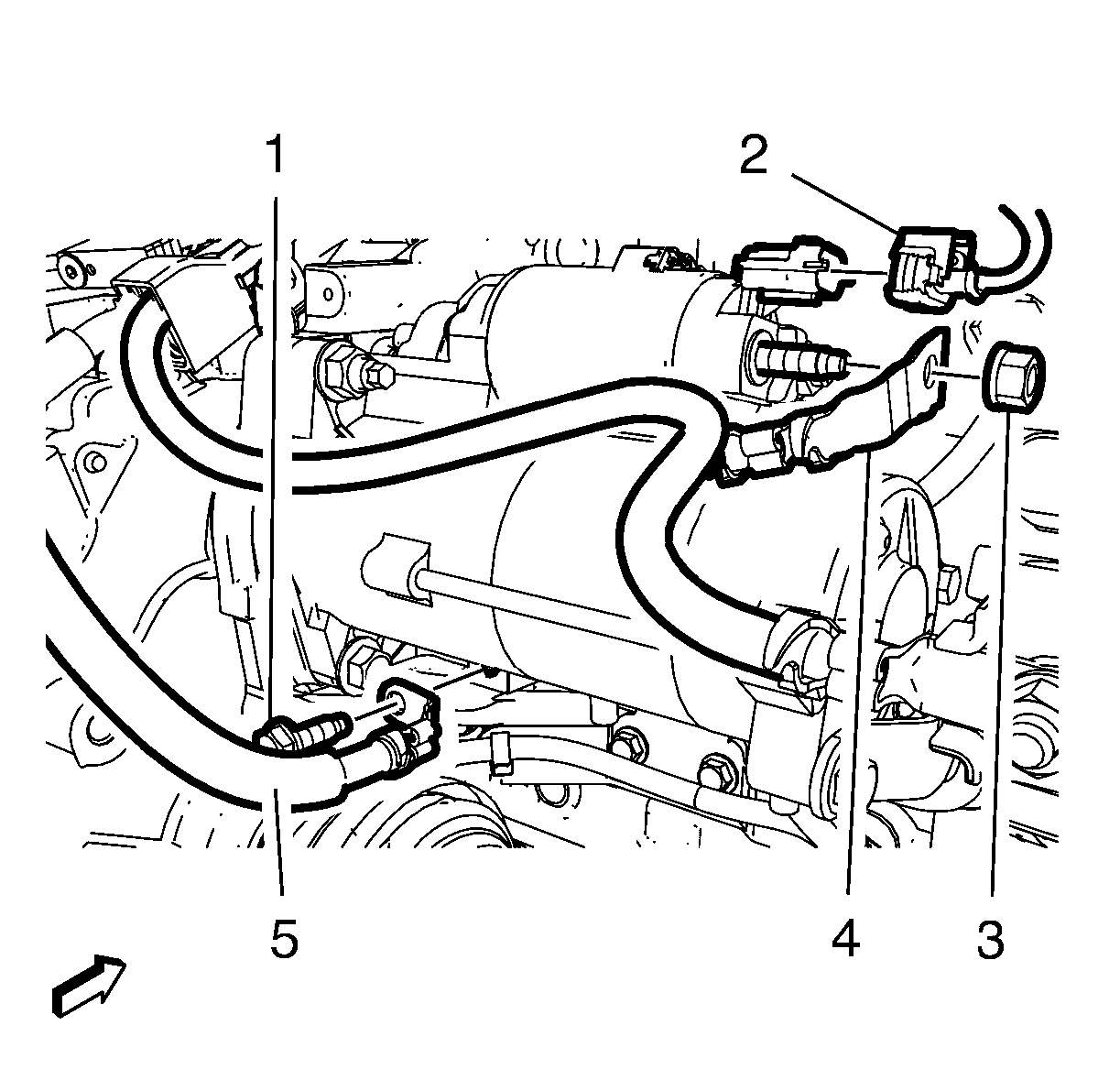

Fig 1: Starter Wiring Harness Plug, Generator And Starter Cable Start Lead Nut With Starter Ground Cable And Bolt
Courtesy of GENERAL MOTORS COMPANY
Remove the generator and starter cable start lead nut (3).
Generator and Starter Cable (4)» Remove
Remove the starter ground cable bolt (1).
NOTE: Remove the starter ground cable (5) for a better access to the starter bolt.
Starter Ground Cable (5)» Remove
Wiring Harness Retainer (2)» Unclip

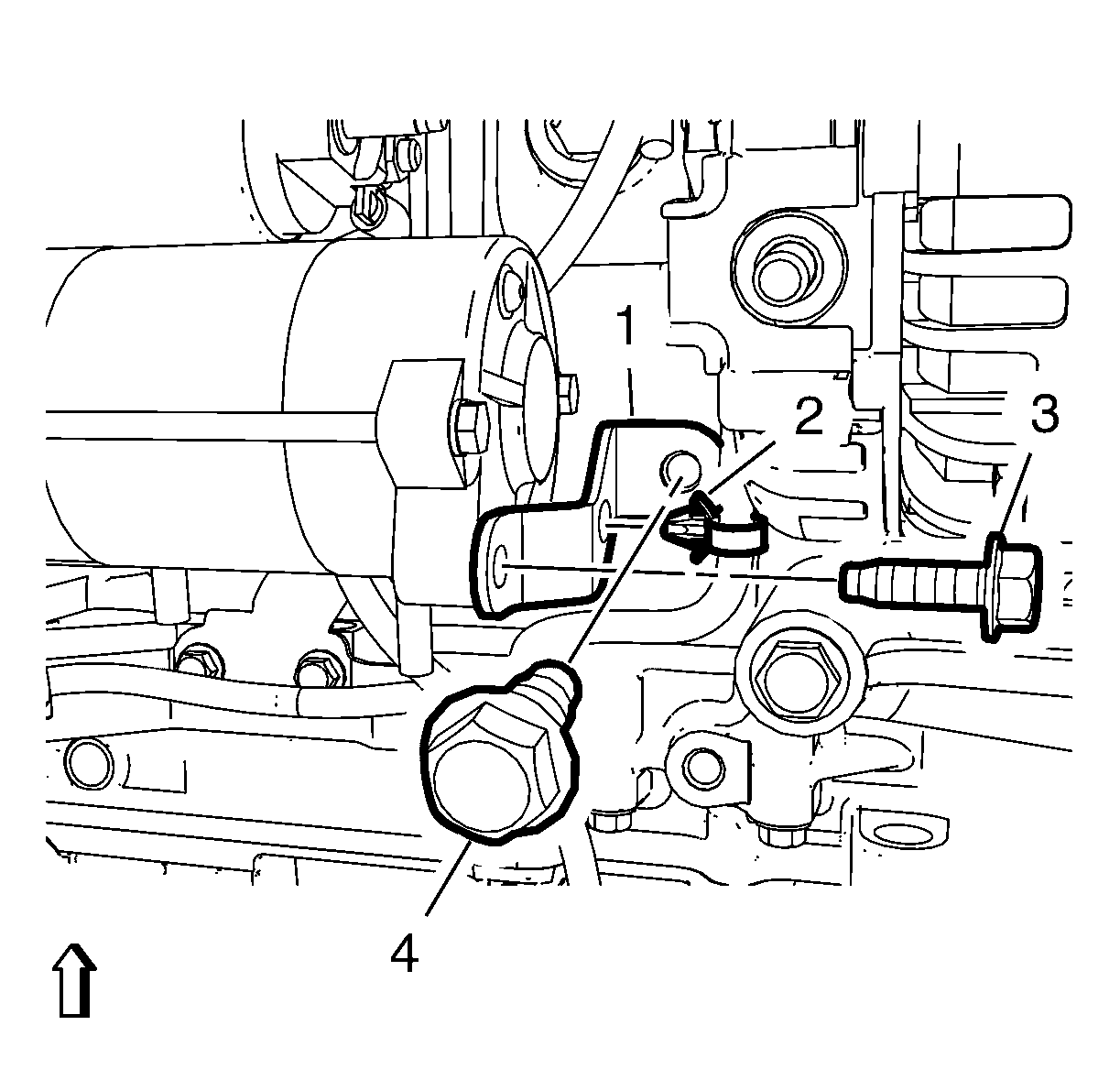

Fig 2: Wiring Harness Retainer, Starter Bracket and Bolts
Courtesy of GENERAL MOTORS COMPANY
Remove the 2 starter bracket bolts (3, 4).
Starter Bracket (1)» Remove
Starter Bolt (3)» Remove

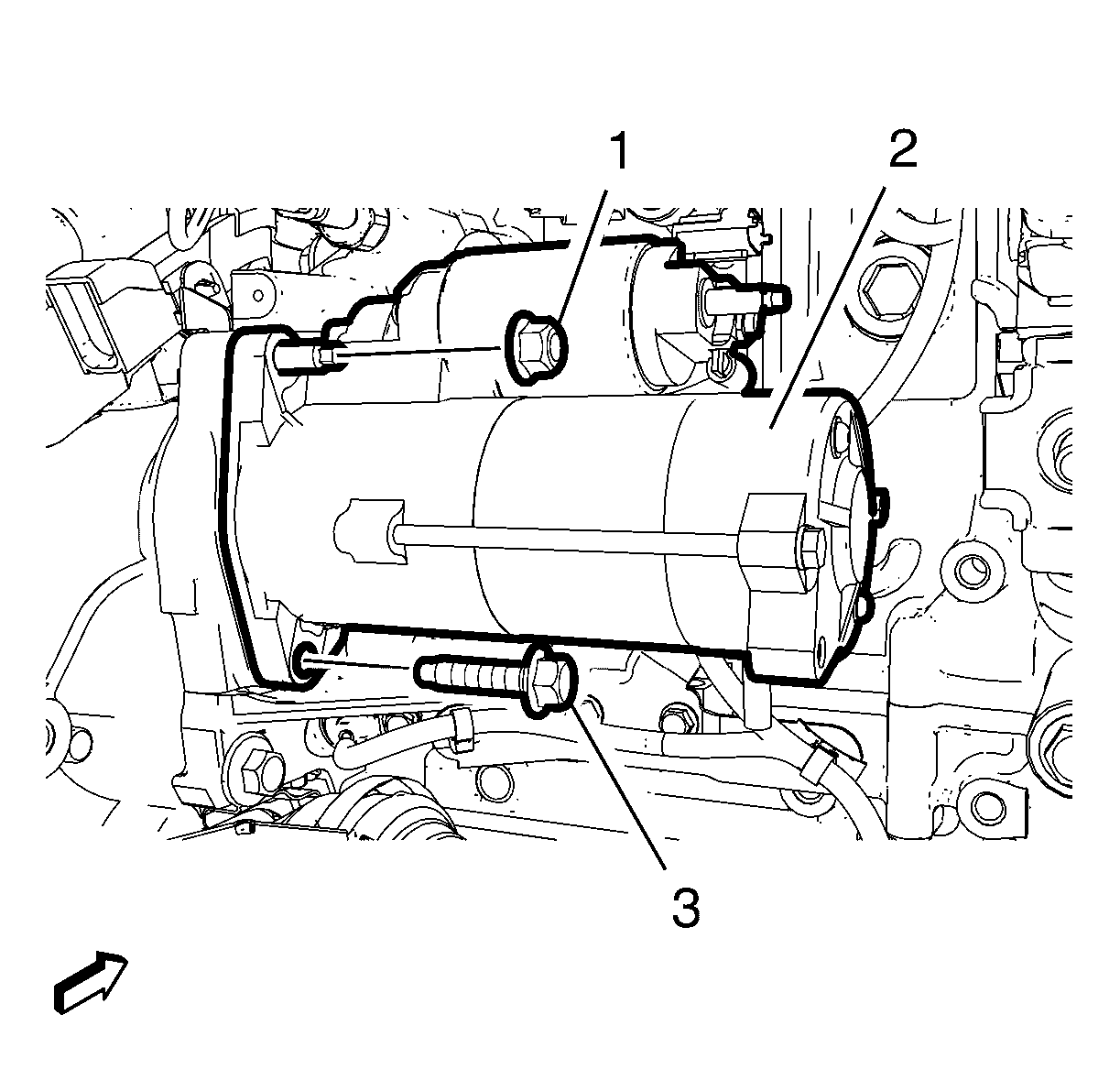

Fig 3: Starter With Nut And Bolt
Courtesy of GENERAL MOTORS COMPANY
Starter Nut (1)» Remove
Starter (2)» Remove
