Rear Side Door Window Weatherstrip Replacement

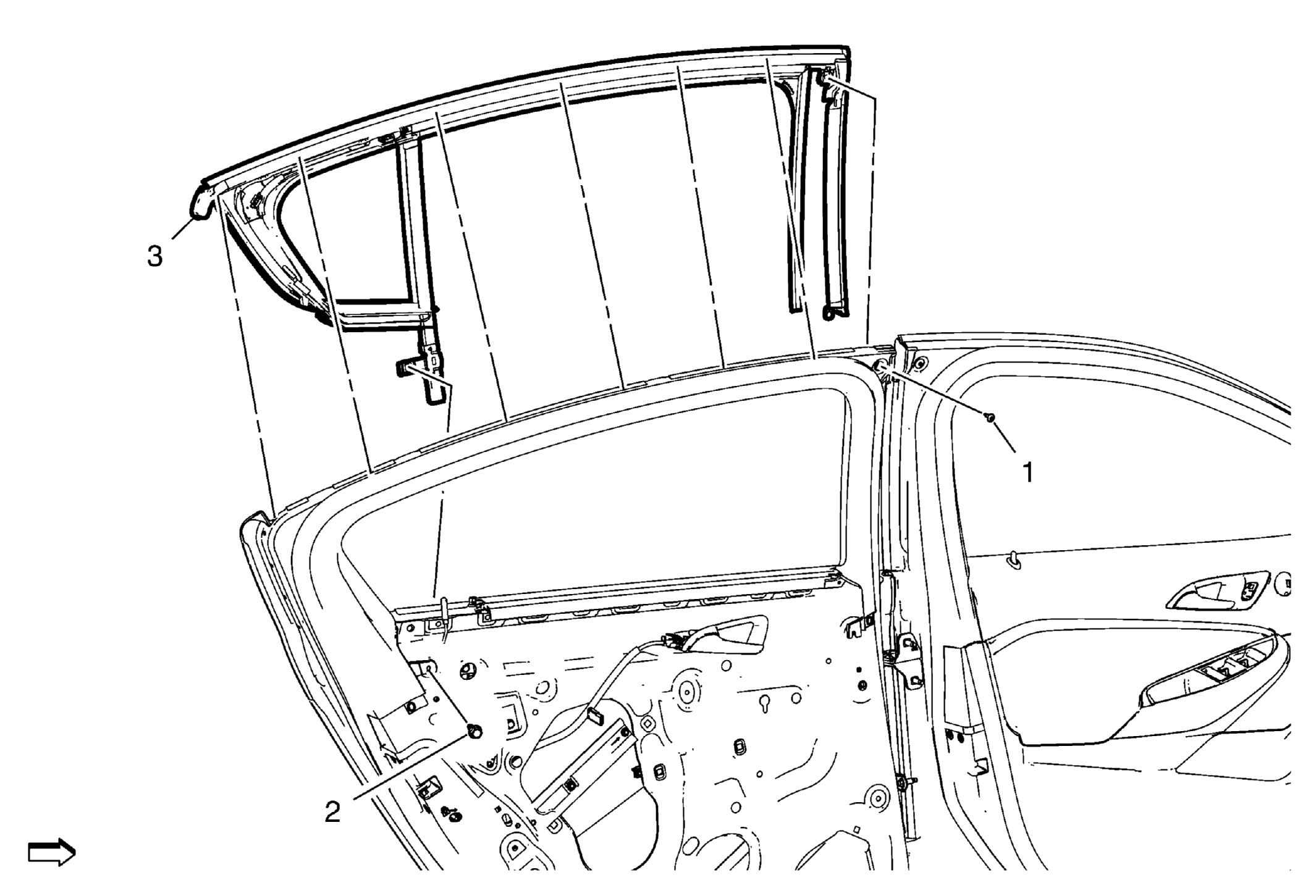

Fig 1: Rear Side Door Window Weatherstrip

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Rear Side Door Window Upper Reveal Molding Replacement Rear Side Door Window Replacement
1	Rear Side Door Window Weatherstrip Fastener CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Rear Side Door Window Weatherstrip Fastener Tighten 11 N.m (97 lb in)
3	Rear Side Door Window Weatherstrip Procedure Pull the rear side door window weatherstrip away from the outer window flange to remove.
