Front Compartment Insulator Replacement

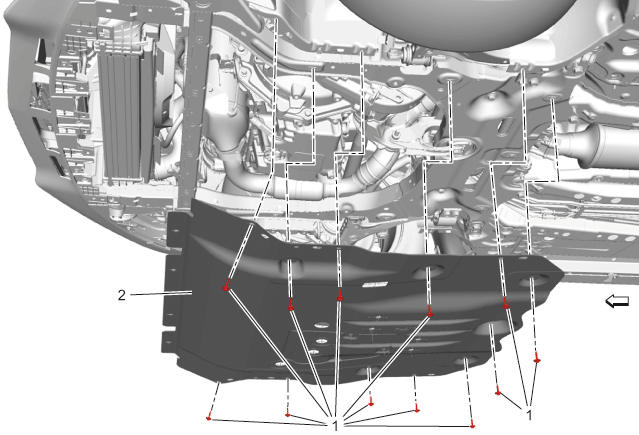

Fig 1: Front Compartment Insulator

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Compartment Insulator Bolt [12x] CAUTION: Fastener Caution Tighten  2.5 N.m (22 lb in)
2	Front Compartment Insulator
