Radio Antenna Amplifier Replacement

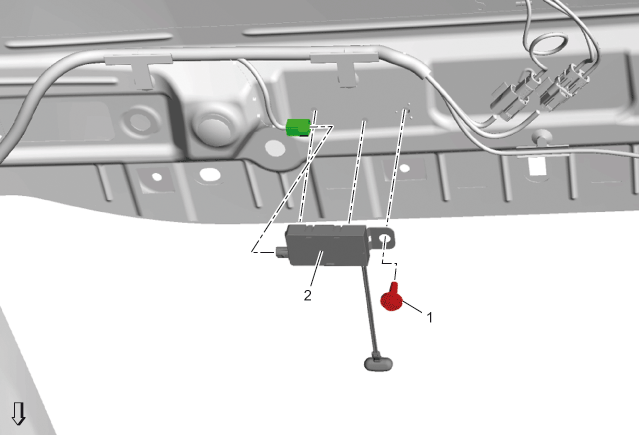

Fig 1: Radio Antenna Amplifier

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Lower the rear side of the headlining trim panel. Refer to Headlining Trim Panel Replacement .
1	Radio Antenna Amplifier Fastener CAUTION: Fastener Caution Tighten 9 N.m (80 lb in)
2	Radio Antenna Amplifier Procedure Disconnect the electrical connectors.
