Engine Oil Pressure Sensor Replacement

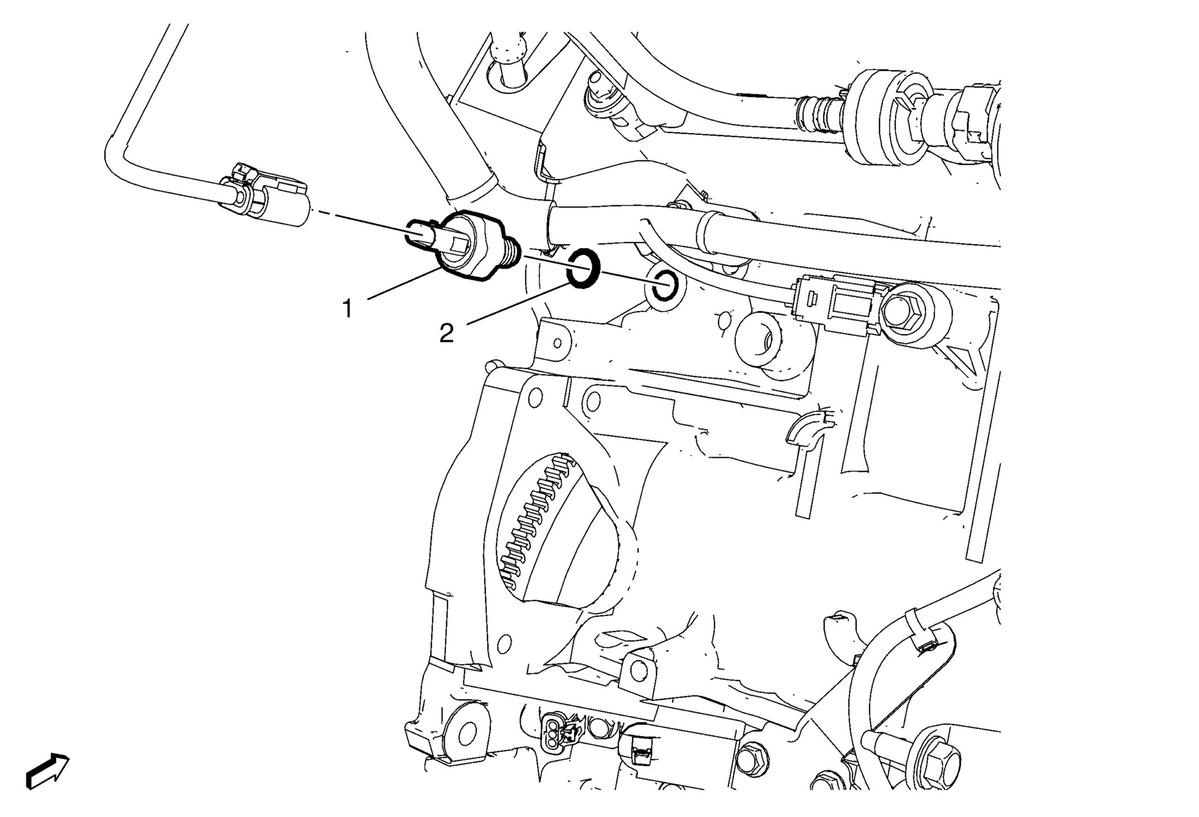

Fig 1: Engine Oil Pressure Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Starter Replacement
1	Engine Oil Pressure Sensor CAUTION: Refer to Fastener Caution . Procedure  Disconnect the electrical connectors. Tighten  35 N.m (26 lb ft)
2	Engine Oil Pressure Sensor Seal
