Front Lower Control Arm Bumper Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front tire and wheel assembly. Tire and Wheel Removal and Installation |
|

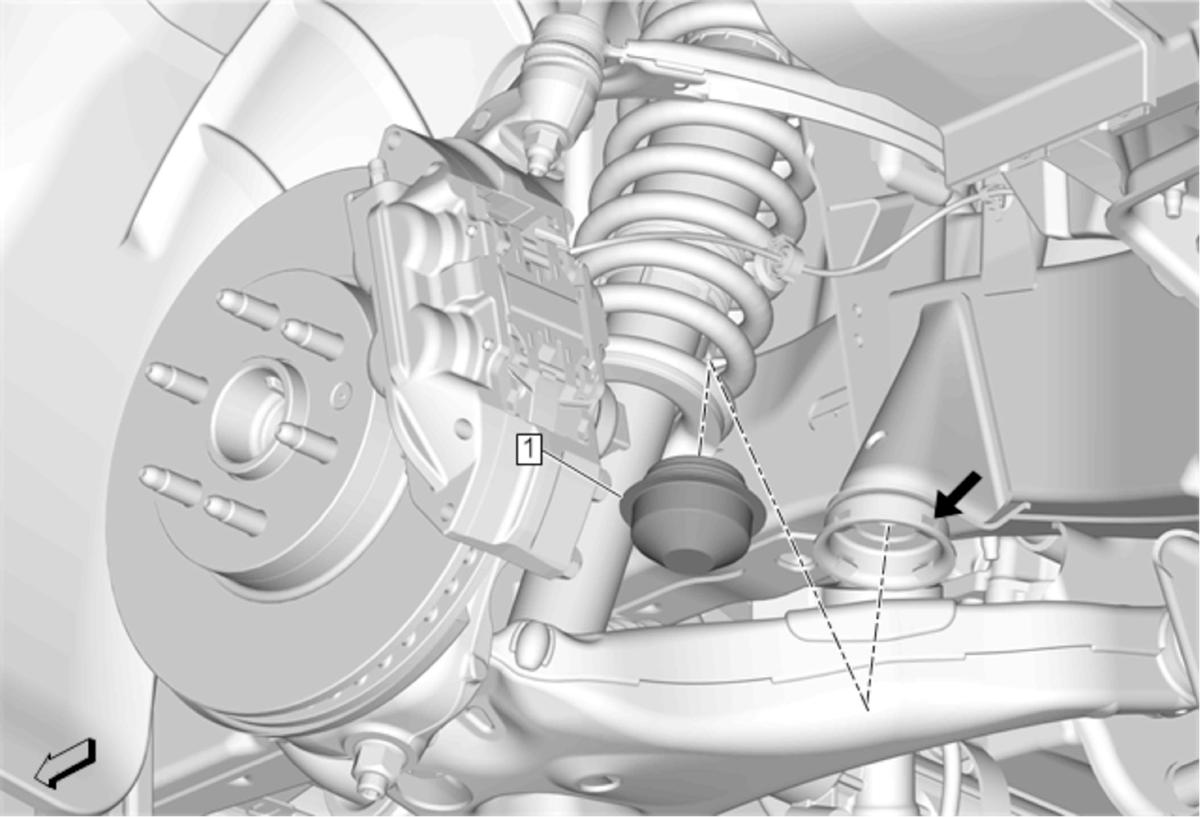

| 1 | Front Lower Control Arm Bumper Procedure Use an appropriate tool to pry the front lower control arm bumper from the front frame mount cup.
NOTE:
Use a small amount of grease to help install the front lower control arm bumper in the front frame mount cup. |
