Steering Wheel Replacement

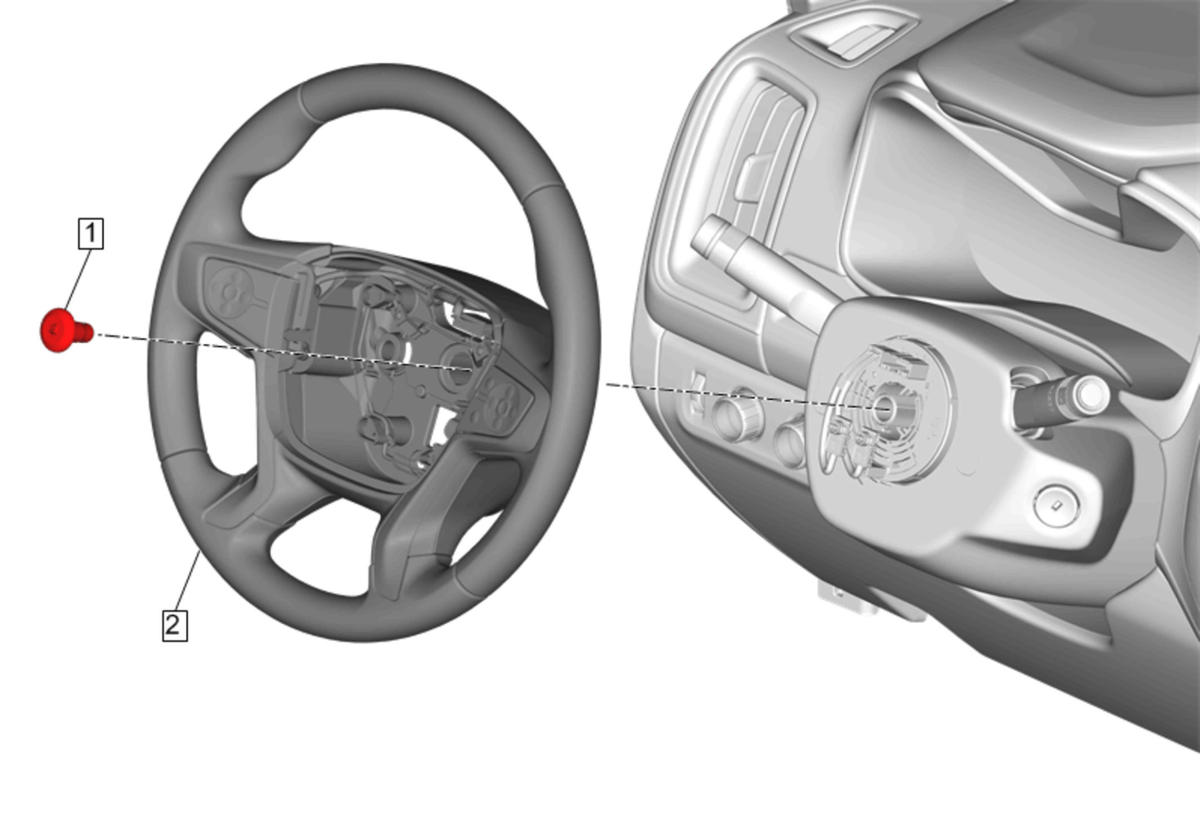

Fig 1: Steering Wheel
GM3688950Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Steering Wheel Airbag Replacement
1 Steering Wheel Bolt
CAUTION:

Refer to Fastener Caution .

Procedure

  1. Clean the threads of the bolt with denatured alcohol or equivalent and allow to dry.
  2. Apply thread locking adhesive to the bolt. Adhesives, Fluids, Lubricants, and Sealers

Tighten
45 N.m (33 lb ft)
2 Steering Wheel

Procedure

  1. Disconnect the electrical connectors.
  2. Install the steering wheel bolt until 2 to 3 threads are engaged.
  3. Wiggle the steering wheel until the wheel disengages completely.
  4. Steering Wheel Bolt»Remove
  5. Steering Wheel»Remove
  6. Transfer components as necessary.
