Removal Procedure

  1. Remove Instrument Panel Assembly. Instrument Panel Assembly Replacement
  2. Remove Instrument Panel Steering Column Opening Closeout. Instrument Panel Steering Column Opening Closeout Replacement

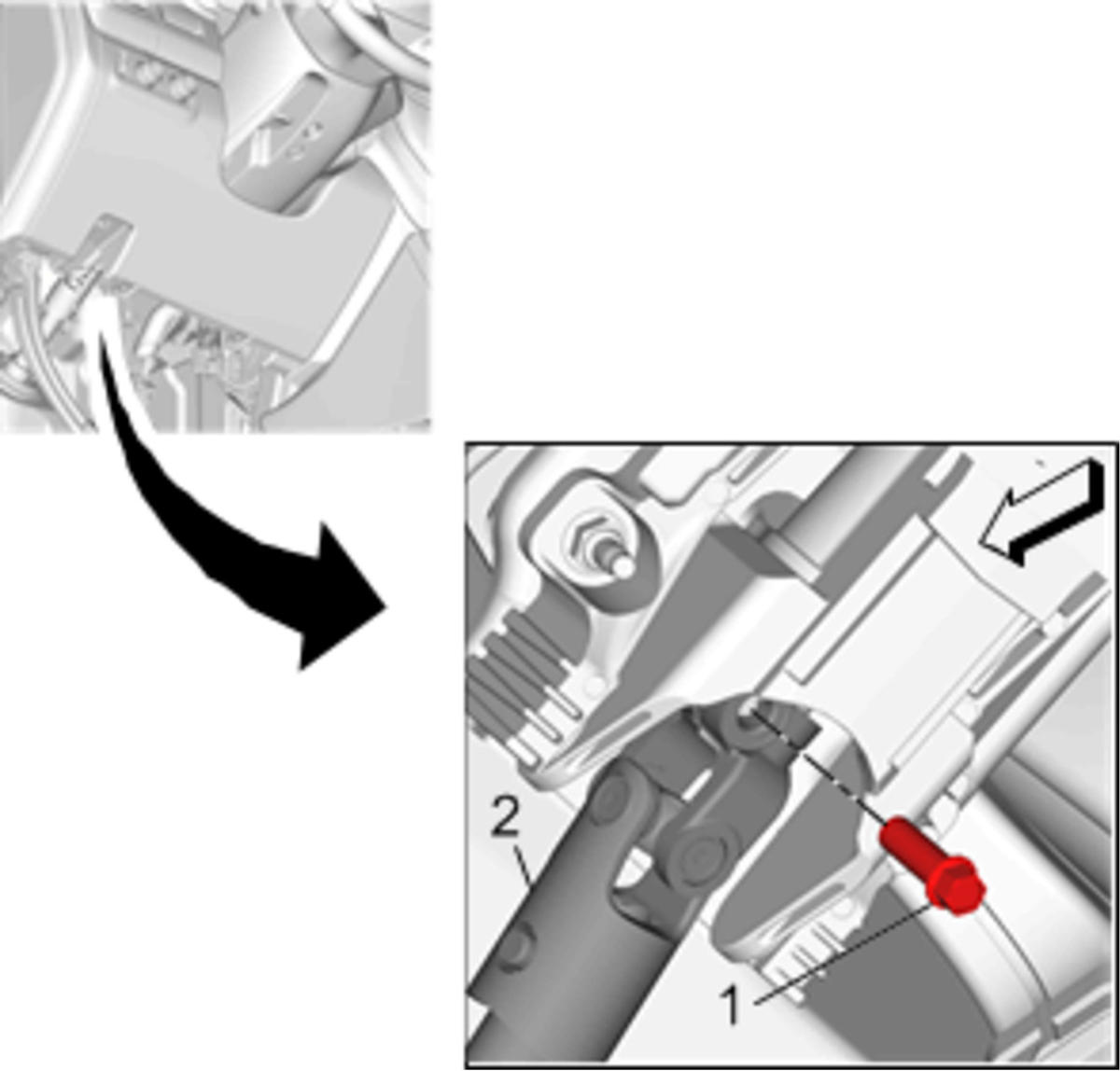

    3. Fig 1: Intermediate Steering Shaft And Upper Bolt
    GM3742737Courtesy of GENERAL MOTORS COMPANY
  3. Seperate Intermediate Steering Shaft (1) @Steering Column.Intermediate Steering Shaft Replacement
  4. Remove Steering Column Lower Trim Cover. Steering Column Lower Trim Cover Replacement
  5. Disconnect the steering column electrical connectors as necessary.

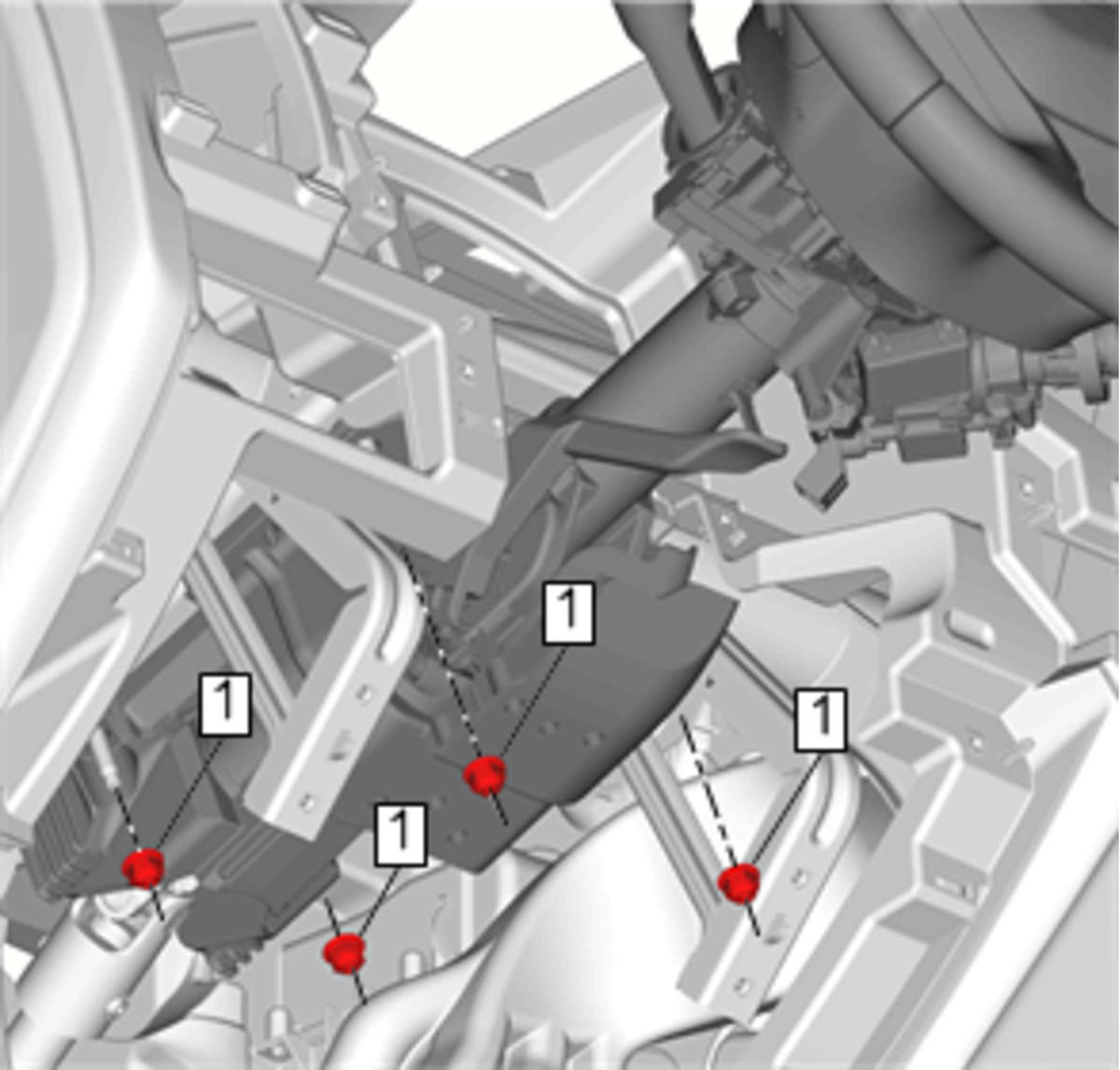

    6. Fig 2: Steering Column Nut
    GM3742754Courtesy of GENERAL MOTORS COMPANY
  6. Remove Steering Column Nut (1).

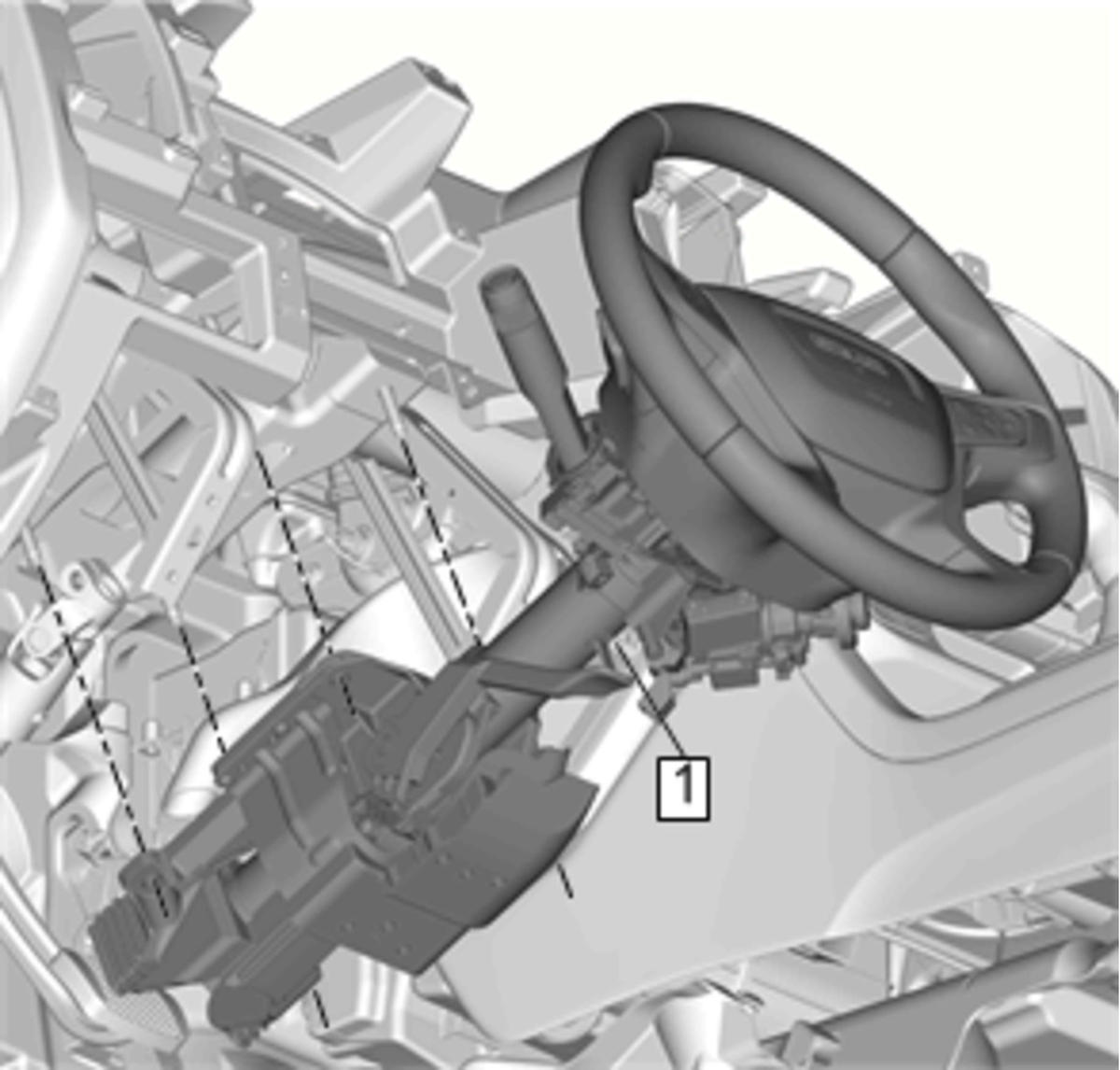

    7. Fig 3: Steering Column
    GM3742758Courtesy of GENERAL MOTORS COMPANY
  7. Remove the steering column (1) from the vehicle.
  8. Transfer components as necessary.
