Multimedia Receptacle Replacement
WARNING: This page is about a different car, the 2017 GMC Canyon and 2017 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front floor console accessory trim plate. Refer to Front Floor Console Accessory Trim Plate Replacement . |
|

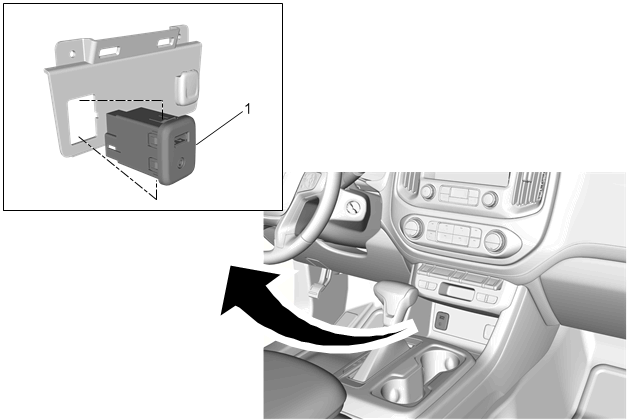

| 1 | Multimedia Receptacle Procedure Depress the tabs on the receptacle to remove. |
