Audio Disc Player and USB Receptacle Replacement
WARNING: This page is about a different car, the 2017 GMC Canyon and 2017 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front floor console compartment. Refer to Front Floor Console Compartment Replacement (Automatic Transmission)Front Floor Console Compartment Replacement (Manual Transmission) . |
|

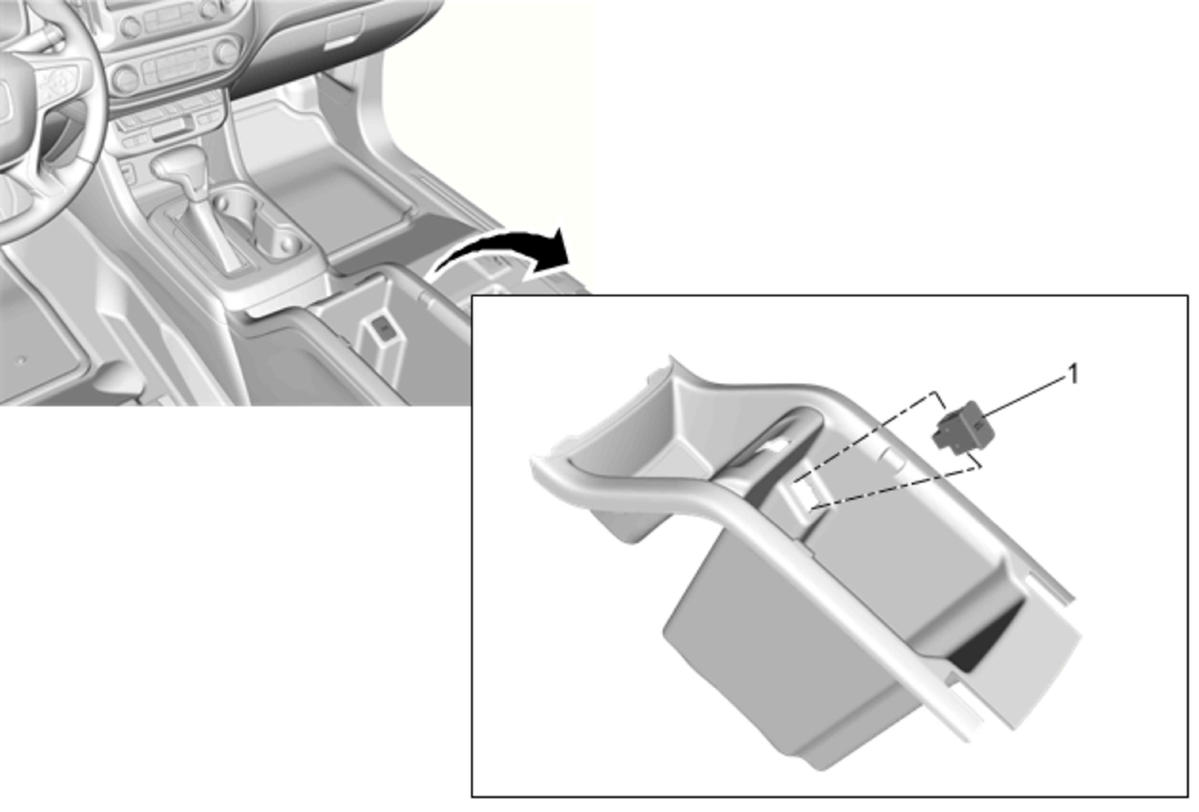

| 1 | Audio Disc Player and USB Receptacle Procedure Using the appropriate tool, depress the tabs on the receptacle to remove. |
