Rear License Plate Lamp Replacement

WARNING: This page is about a different car, the 2017 GMC Canyon and 2017 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

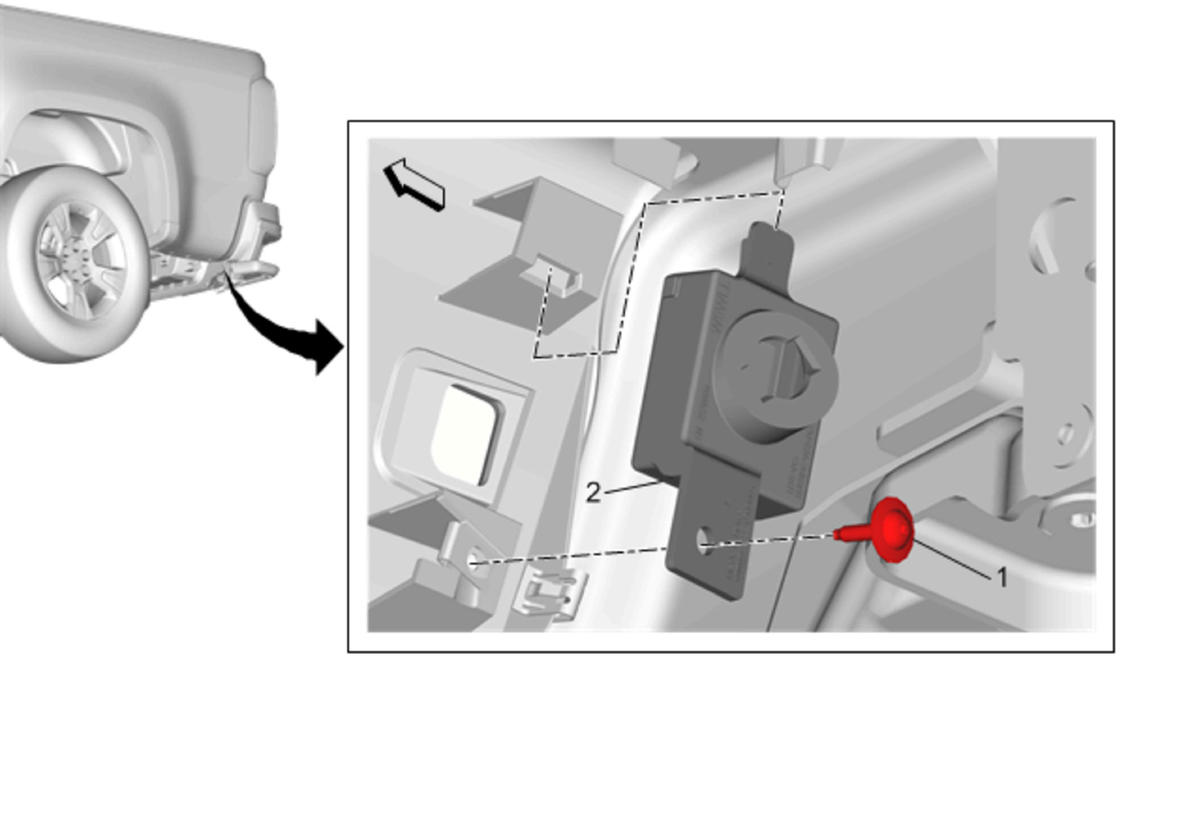

Fig 1: Rear License Plate Lamp

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear License Plate Lamp Screw CAUTION: Refer to Fastener Caution .
2	Rear License Plate Lamp Procedure Disconnect the electrical connector. Depress the locking tab on the rear license plate lamp and pull from the rear bumper impact bar. Transfer parts as necessary.

Callout

Component Name

Rear License Plate Lamp Screw

CAUTION:

Refer to Fastener Caution .

Rear License Plate Lamp

Procedure

Disconnect the electrical connector.
Depress the locking tab on the rear license plate lamp and pull from the rear bumper impact bar.
Transfer parts as necessary.
