Rear Body Structure Stop Lamp Replacement (GMC)

WARNING: This page is about a different car, the 2017 GMC Canyon and 2017 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

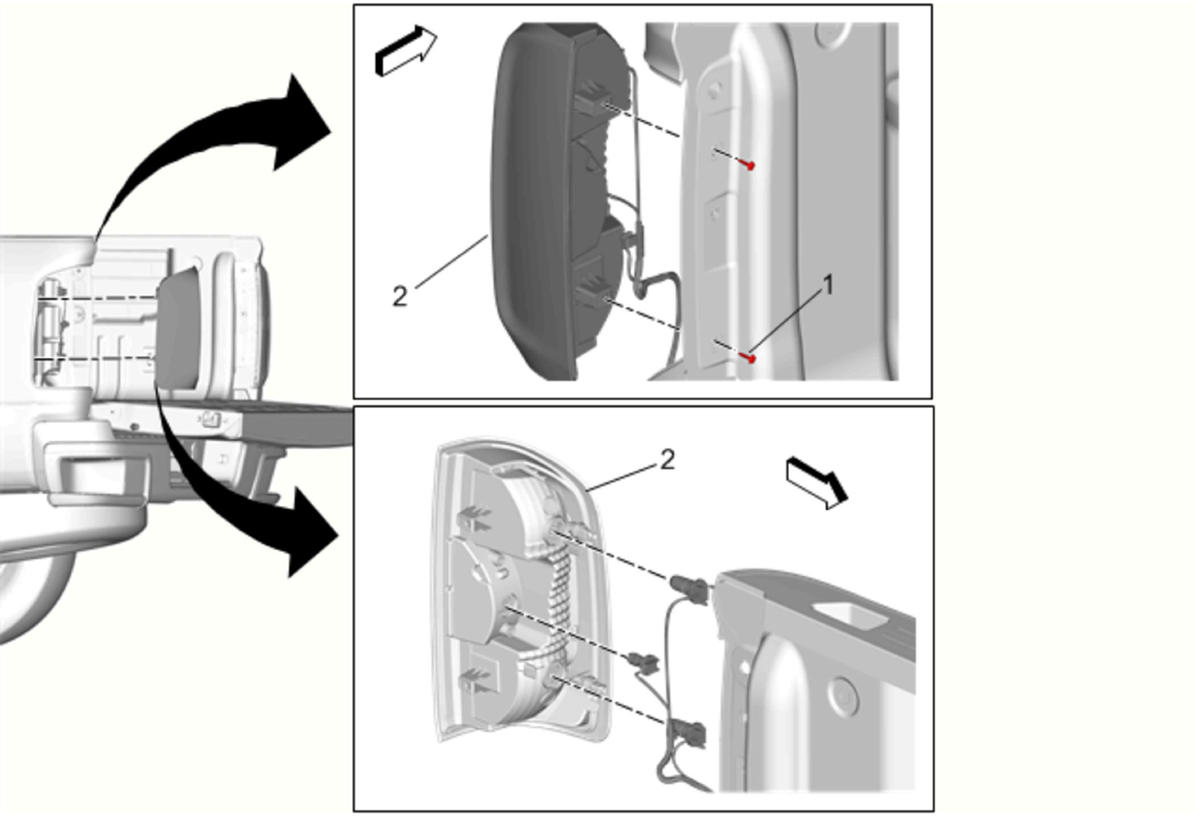

Fig 1: Rear Body Structure Stop Lamp (GMC)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Lower the pickup box endgate.
1	Rear Body Structure Stop Lamp Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Rear Body Structure Stop Lamp Procedure Carefully pull the rear body structure stop lamp straight outward from the panel to release the two outer retainers. Disconnect the bulb sockets from the rear body structure stop lamp housing. Compress the spring clip and remove the rear lamp monitor light conductor harness from the rear body structure stop lamp.

Callout

Component Name

Preliminary Procedure
Lower the pickup box endgate.

Rear Body Structure Stop Lamp Screw (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Rear Body Structure Stop Lamp

Procedure

Carefully pull the rear body structure stop lamp straight outward from the panel to release the two outer retainers.
Disconnect the bulb sockets from the rear body structure stop lamp housing.
Compress the spring clip and remove the rear lamp monitor light conductor harness from the rear body structure stop lamp.
