High Mount Stop Lamp Bulb Replacement (Cargo)
WARNING: This page is about a different car, the 2017 GMC Canyon and 2017 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

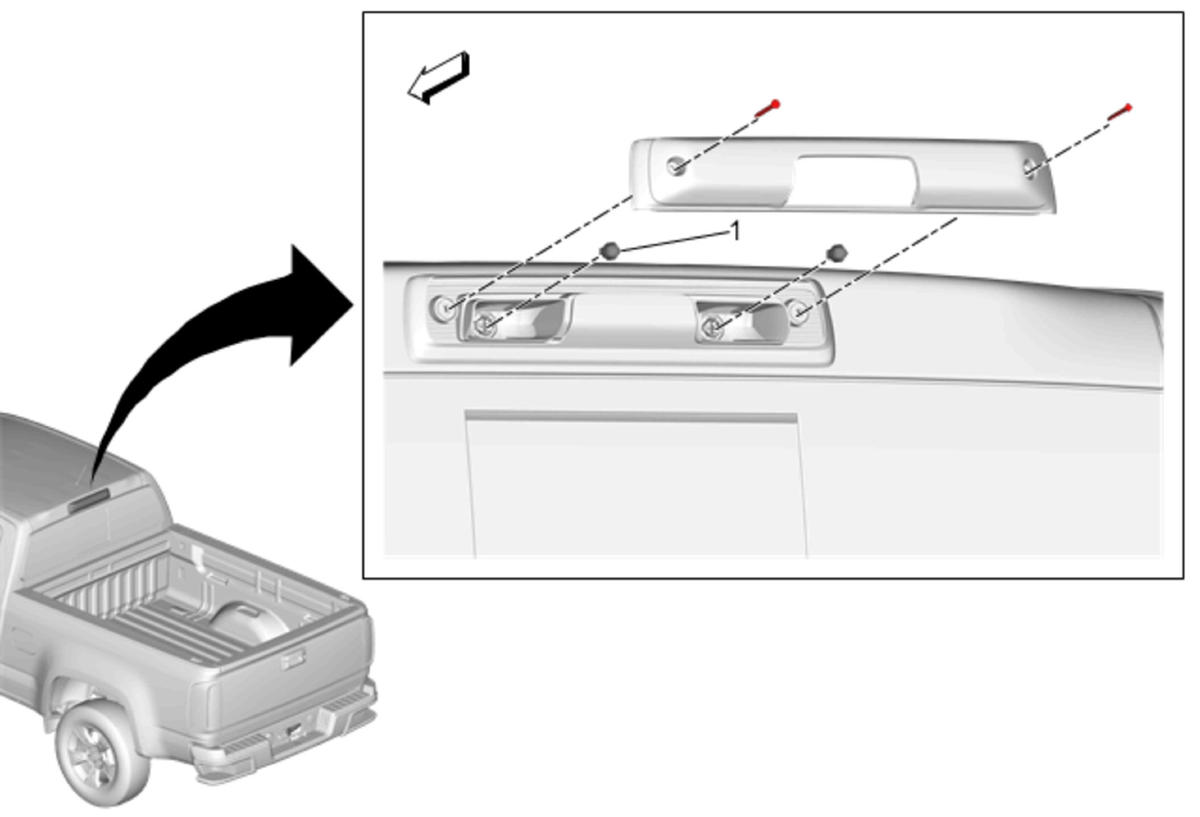

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the high mount stop lamp. Refer to High Mount Stop Lamp Replacement . |
|
| 1 | High Mount Stop Lamp Bulb (Cargo) Procedure Remove the high mount stop lamp bulb from the high mount stop lamp housing. |
