Front Fog Lamp Opening Cover Replacement (GMC)
WARNING: This page is about a different car, the 2017 GMC Canyon and 2017 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front wheelhouse liner on the side the front fog lamp opening cover will be serviced. Refer to Front Wheelhouse Liner Replacement (without ZR2)Front Wheelhouse Liner Replacement (with ZR2) . |
|

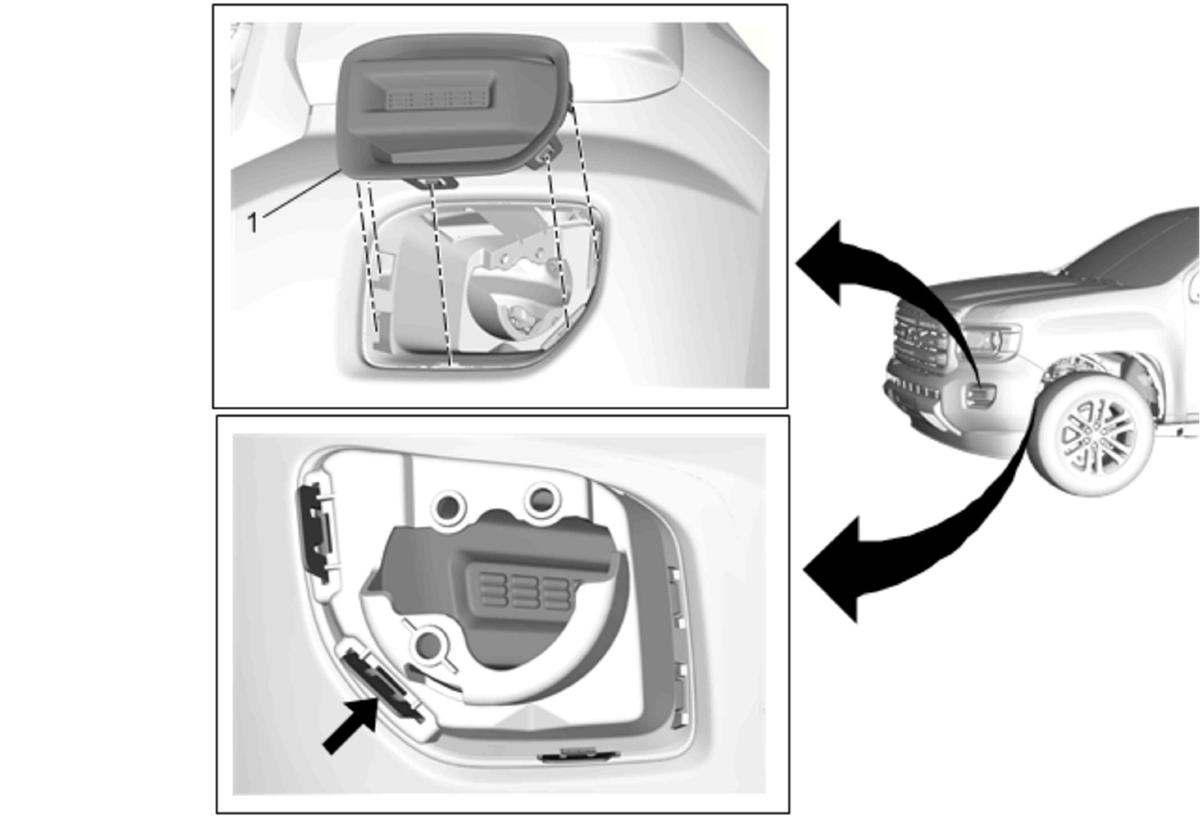

| 1 | Front Fog Lamp Opening Cover Procedure Release all tabs holding the front fog lamp opening cover to the fascia from the rear side of the fascia, access to these tabs is available through the wheelhouse opening. |
