Windshield Wiper Blade Replacement

WARNING: This page is about a different car, the 2017 GMC Canyon and 2017 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

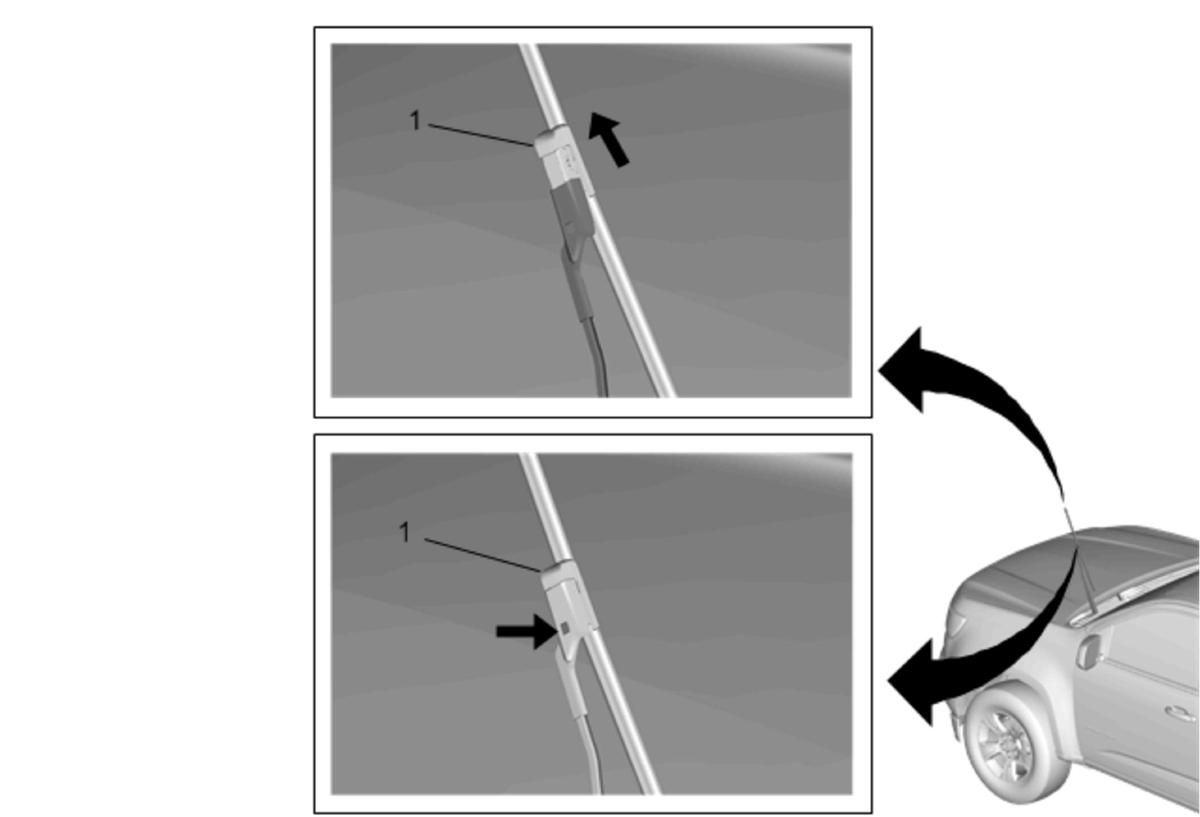

Fig 1: Windshield Wiper Blade

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
NOTE: When installing, ensure the wiper blade is securely in place and the release button is in the lock position.
1	Windshield Wiper Blade Procedure Lift the windshield wiper arm from the windshield. NOTE: It is a two step process to release the wiper blade from the wiper arm. To release the wiper blade from the wiper arm, do the following: Press the button down to allow the blade to slide parallel to the arm to disengage the first lock. To clear the secondary lock the tip of the blade needs to be rotated upward to disengage from the wiper arm.

Callout

Component Name

NOTE:

When installing, ensure the wiper blade is securely in place and the release button is in the lock position.

Windshield Wiper Blade

Procedure

Lift the windshield wiper arm from the windshield.

NOTE:

It is a two step process to release the wiper blade from the wiper arm.

To release the wiper blade from the wiper arm, do the following:
1. Press the button down to allow the blade to slide parallel to the arm to disengage the first lock.
2. To clear the secondary lock the tip of the blade needs to be rotated upward to disengage from the wiper arm.
