Left Sliding Door Components

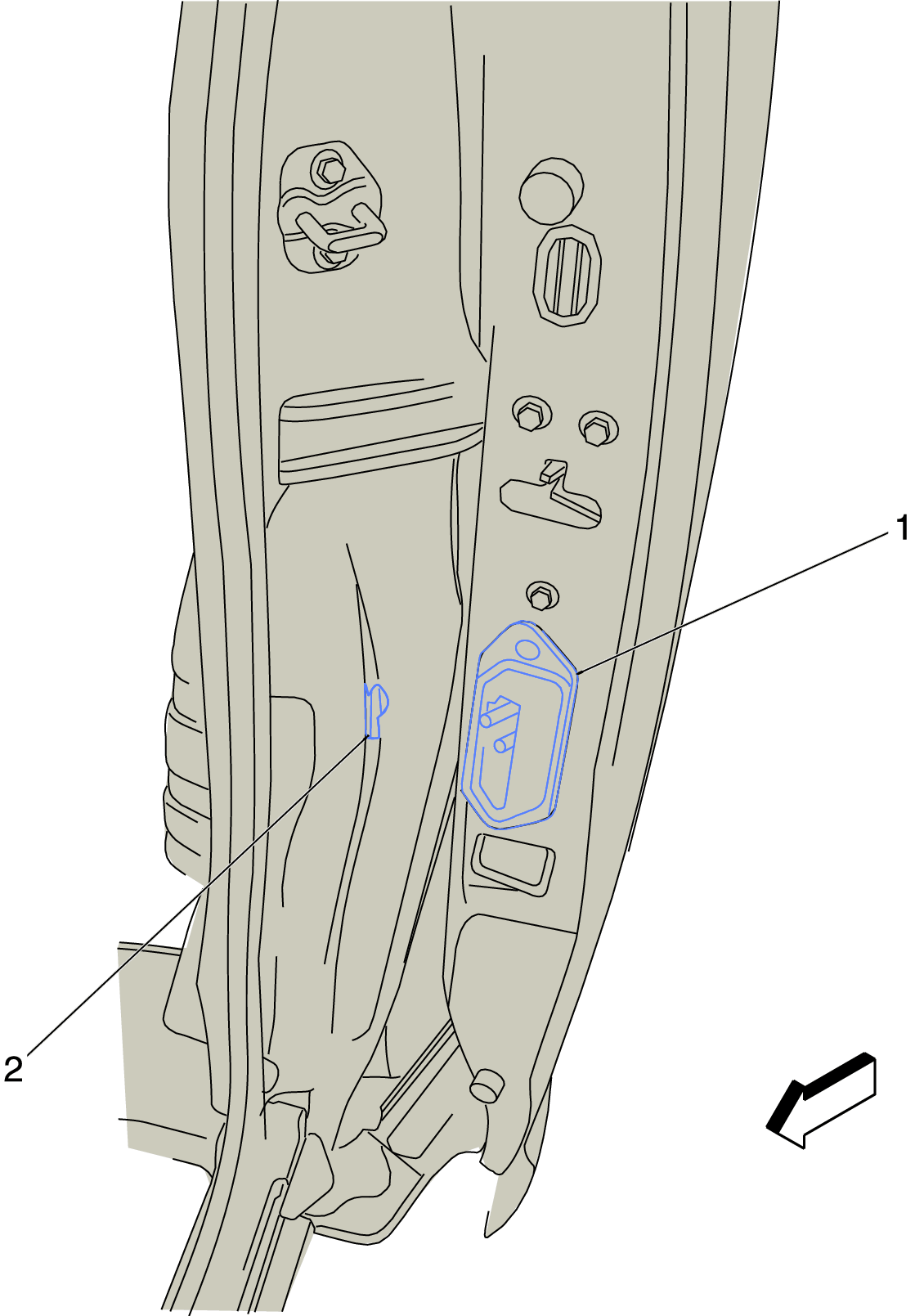

GM3946488Courtesy of
NOTE: Callouts in the following chart represent components shown in graphic above.
Left Sliding Door Components

Items Callout
X87LD Sliding Door Jamb Contact Plate - Left Door (1)
B28E Door Ajar Switch - Left Sliding CONNECTOR VIEW (2)
