Steering Gear Rack Replacement

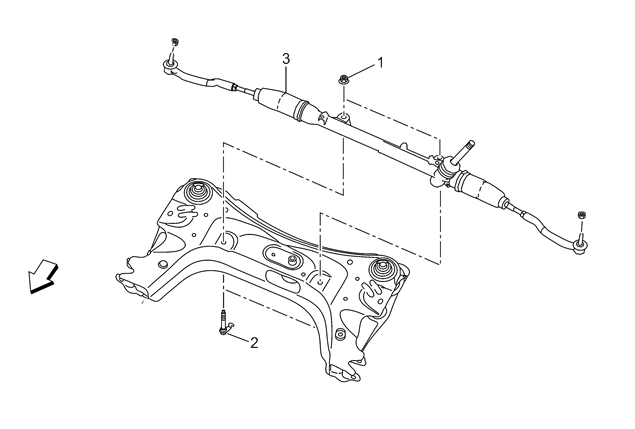

Fig 1: Steering Gear Rack Replacement Components With Torque Specifications

Courtesy of

Callout	Component Name
CAUTION: With wheels of the vehicle facing straight ahead, secure the steering wheel utilizing steering column anti-rotation pin, steering column lock, or a strap to prevent rotation. Locking of the steering column will prevent damage and a possible malfunction of the SIR system. The steering wheel must be secured in position before disconnecting the following components: The steering column The steering shaft coupling The intermediate shaft(s) After disconnecting these components, do not rotate the steering wheel or move the front tires and wheels. Failure to follow this procedure may cause the SIR coil assembly to become un-centered and cause possible damage to the SIR coil. If you think the SIR coil has became un-centered, refer to your specific SIR coil's centering procedure to re-center SIR Coil. Preliminary Procedures With the wheels of the vehicle in the straight ahead position, LOCK the steering column. Raise and support the vehicle. Lifting and Jacking the Vehicle Remove the front tire and wheel assemblies. Tire and Wheel Removal and Installation Disconnect the outer tie rod from the steering knuckle. Steering Linkage Outer Tie Rod Replacement Disconnect the stabilizer shaft link from the stabilizer shaft and reposition away. Stabilizer Shaft Link Replacement Intermediate Steering Shaft @ Steering Gear Rack - Disconnect Intermediate Steering Shaft Replacement
1	Steering Gear Nut [2x] Procedure DISCARD the old steering gear nut. Install a NEW steering gear nut.
2	Steering Gear Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 94 N.m (69 lb ft)
3	Steering Gear Procedure Transfer components as necessary. Measure and adjust the wheel alignment. Wheel Alignment Specifications (Wheel Alignment Specifications (Front)) and Wheel Alignment Specifications (Wheel Alignment Specifications (Rear))
