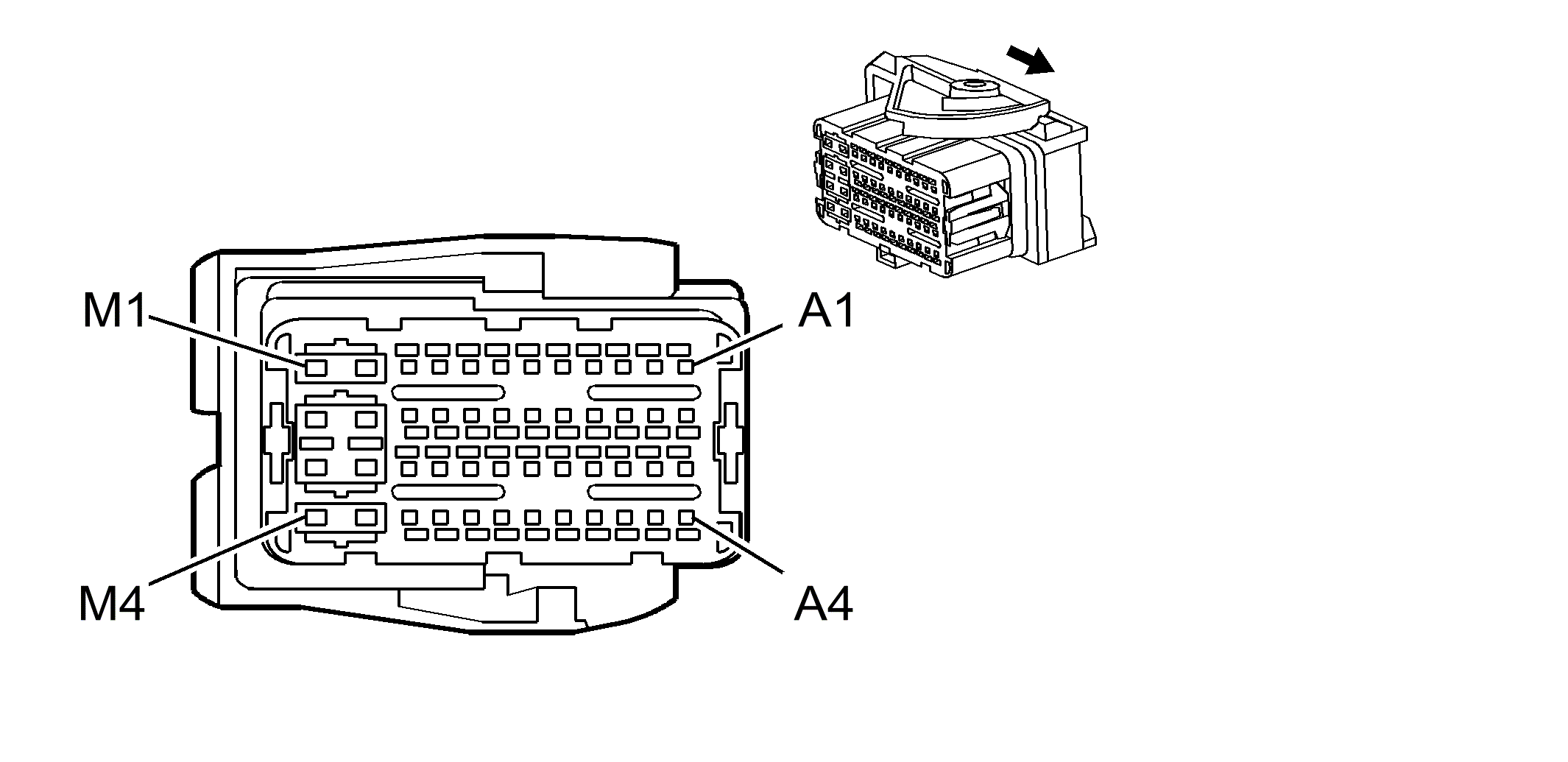

K20 Engine Control Module X2

Connector Part Information

Harness Type: Engine
OEM Connector: RH40FBR-RZ8 - L-RH
Service Connector: Service by Harness - See Parts Catalog
Description: 48-Way F, Sealed (BN)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray	Core Crimp	Insulation Crimp
I	Not Available	Not Available	Not Available	Service by Harness - See Parts Catalog	Not Available	Not Available	Not Available

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
A1	-	D-BU	AC77	Throttle Position Sensor Signal (1)	I	-
A2	-	BN	AC79	Throttle Position Sensor Signal (2)	I	-
A3	-	-	-	Not Occupied	-	-
A4	-	YE	AC76	Throttle Position Sensor Low Reference	I	-
B1	-	WH	AA60	Knock Sensor Signal	I	-
B2	-	PK	AC39	Engine Coolant Temperature Sensor Signal	I	-
B3	-	-	-	Not Occupied	-	-
B4	-	BARE	ABE5	Knock Sensor Low Reference	I	-
C1	-	-	-	Not Occupied	-	-
C2	-	D-BU	AB43	Fuel Temperature Sensor 5 Volt Reference	I	-
C3	-	L-GN	AC81	Fuel Tank Pressure Sensor Signal	I	-
C4	-	BK	AC41	Coolant Temperature Sensor Low Reference	I	-
D1	-	D-GN	AC34	Mass Air Flow Sensor Signal	I	-
D2	-	PU	AC72	Intake Air Temperature Sensor Signal	I	-
D3	-	WH	AA50	Oil Pressure Sensor Low Reference	I	-
D4	-	-	-	Not Occupied	-	-
E1	-	D-BU	AC27	Heated Oxygen Sensor Heater Low Control Bank 1 Sensor (1)	I	-
E2	-	WH	AC86	Heated Oxygen Sensor High Signal Bank 1 Sensor (2)	I	-
E3	-	-	-	Not Occupied	-	-
E4	-	L-GN	AC40	Mass Air Flow Sensor Low Reference	I	-
F1	-	PK	AC30	Heated Oxygen Sensor High Signal Bank 1 Sensor (1)	I	-
F2	-	OG	AB32	Oil Temperature Sensor Low Reference	I	-
F3	-	L-GN	AC47	Intake Air Temperature Sensor Low Reference	I	-
F4	-	-	-	Not Occupied	-	-
G1	-	YE	AB31	Oil Temperature Sensor Signal	I	-
G2	-	D-GN	AI02	Current Sensor Signal	I	-
G3	-	D-BU	AC89	Heated Oxygen Sensor Heater Low Control Bank 1 Sensor (2)	I	-
G4	-	D-GN	AA51	Oil Pressure Sensor Signal	I	-
H1	-	WH	AC35	Crankshaft Position Sensor Signal	I	-
H2	-	RD	AC36	Crankshaft Position Sensor Low Reference	I	-
H3	-	BK	AC38	Camshaft Position Sensor Low Reference	I	-
H4	-	-	-	Not Occupied	-	-
J1	-	RD	AC37	Camshaft Position Sensor Signal	I	-
J2-J3	-	-	-	Not Occupied	-	-
J4	-	BN	AC80	Sensor 5 Volt Reference	I	-
K1	-	L-GN	AC95	Transmission Park/Neutral Signal	I	-
K2	-	-	-	Not Occupied	-	-
K3	-	BK	AC82	Sensor Low Reference	I	-
K4	-	VT	AC78	Throttle Position Sensor 5 Volt Reference	I	-
L1	-	PK	AC49	Camshaft Phaser Intake Solenoid Control	I	-
L2	-	RD	AA49	Oil Pressure Sensor 5 Volt Reference	I	-
L3	-	BK	AC45	Crankshaft Position Sensor 5 Volt Reference	I	-
L4-M1	-	-	-	Not Occupied	-	-
M2	-	D-BU	AC44	Camshaft Position Sensor 5 Volt Reference	I	-
M3-M4	-	-	-	Not Occupied	-	-
