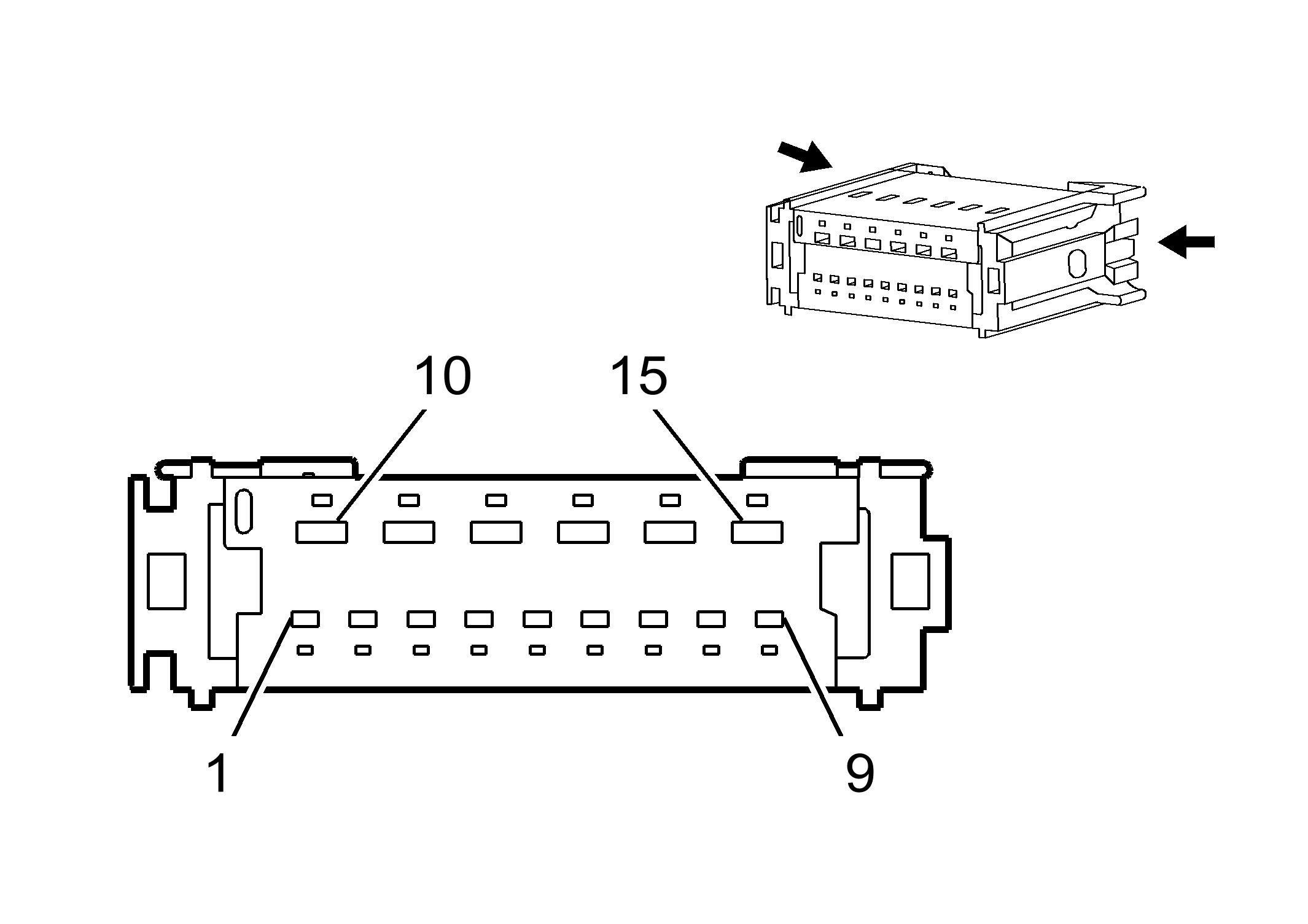

K9 Body Control Module X3
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: FEA09FB-FHA6 - SA
- Service Connector: Service by Harness - See Parts Catalog
- Description: 15-Way F (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Available |
Not Available |
Not Available |
Service by Harness - See Parts Catalog |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
- |
- |
Not Occupied |
- |
- |
| 2 |
- |
L-GN |
PD15 |
Right Sliding Door Ajar Switch Signal |
I |
- |
| 3 |
- |
GY |
PD16 |
Left Sliding Door Ajar Switch Signal |
I |
- |
| 4 |
- |
BN |
PD13 |
Driver Door Ajar Switch Signal |
I |
- |
| 5 |
- |
L-BU |
PD14 |
Passenger Door Ajar Switch Signal |
I |
- |
| 6 |
- |
- |
- |
Not Occupied |
- |
- |
| 7 |
- |
WH |
PD40 |
Rear Cargo Door Ajar Switch Signal |
I |
- |
| 8 |
- |
WH |
LD09 |
Right Turn Signal Lamp Supply Voltage |
I |
- |
| 9 |
- |
PU |
LD10 |
Left Turn Signal Lamp Supply Voltage |
I |
- |
| 10-15 |
- |
- |
- |
Not Occupied |
- |
- |
