Electronic Brake Control Vehicle Yaw Sensor Replacement

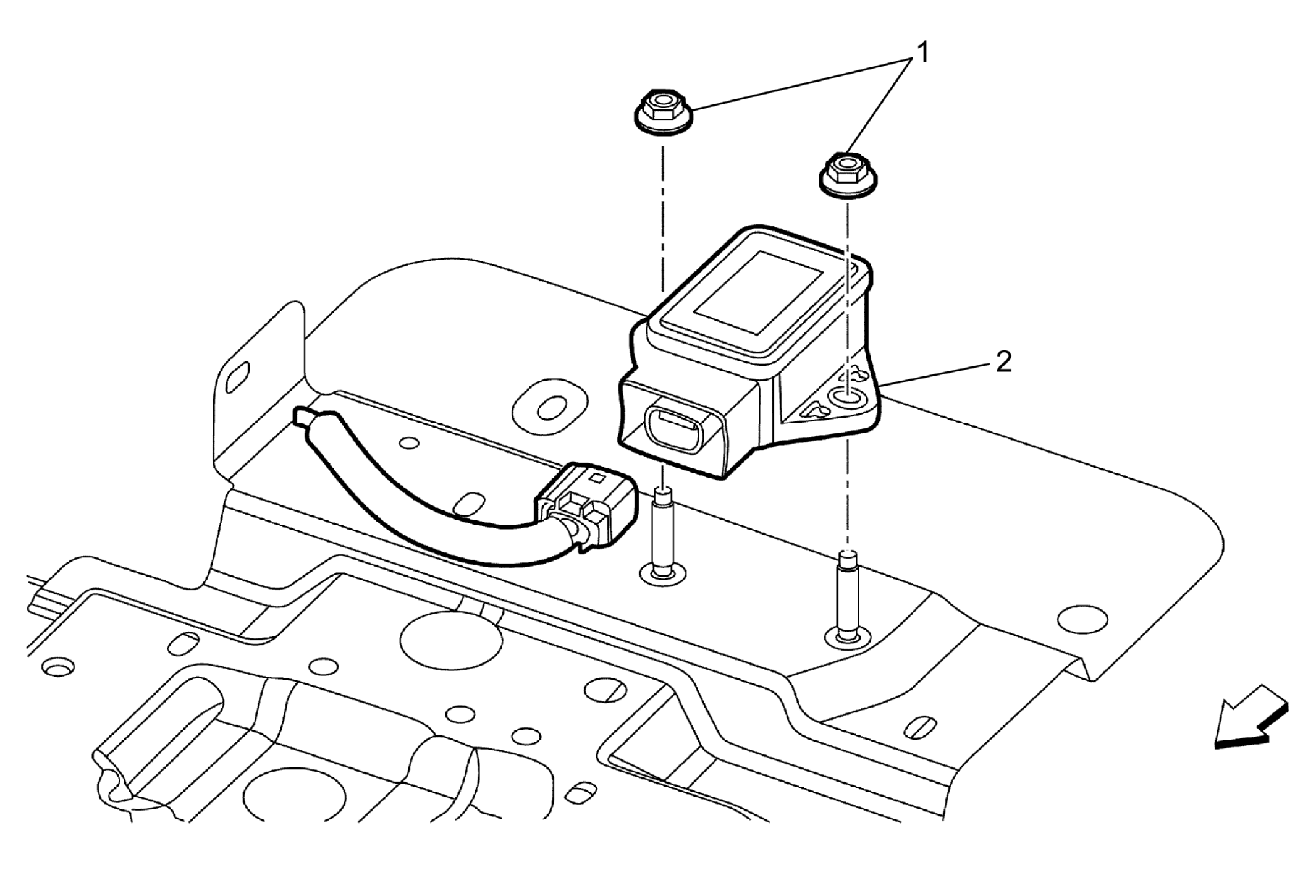

Fig 1: Electronic Brake Control Vehicle Yaw Sensor With Torque Specifications
GM3943402Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
  2. Front Floor Console Replacement
1 Electronic Brake Control Vehicle Yaw Sensor Nut [2x]
CAUTION:

Refer to Fastener Caution .


Tighten
7 N.m (62 lb in)
2 Electronic Brake Control Vehicle Yaw Sensor

Procedure

  1. Electronic Brake Control Vehicle Yaw Sensor Electrical Connector - Disconnect
  2. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
