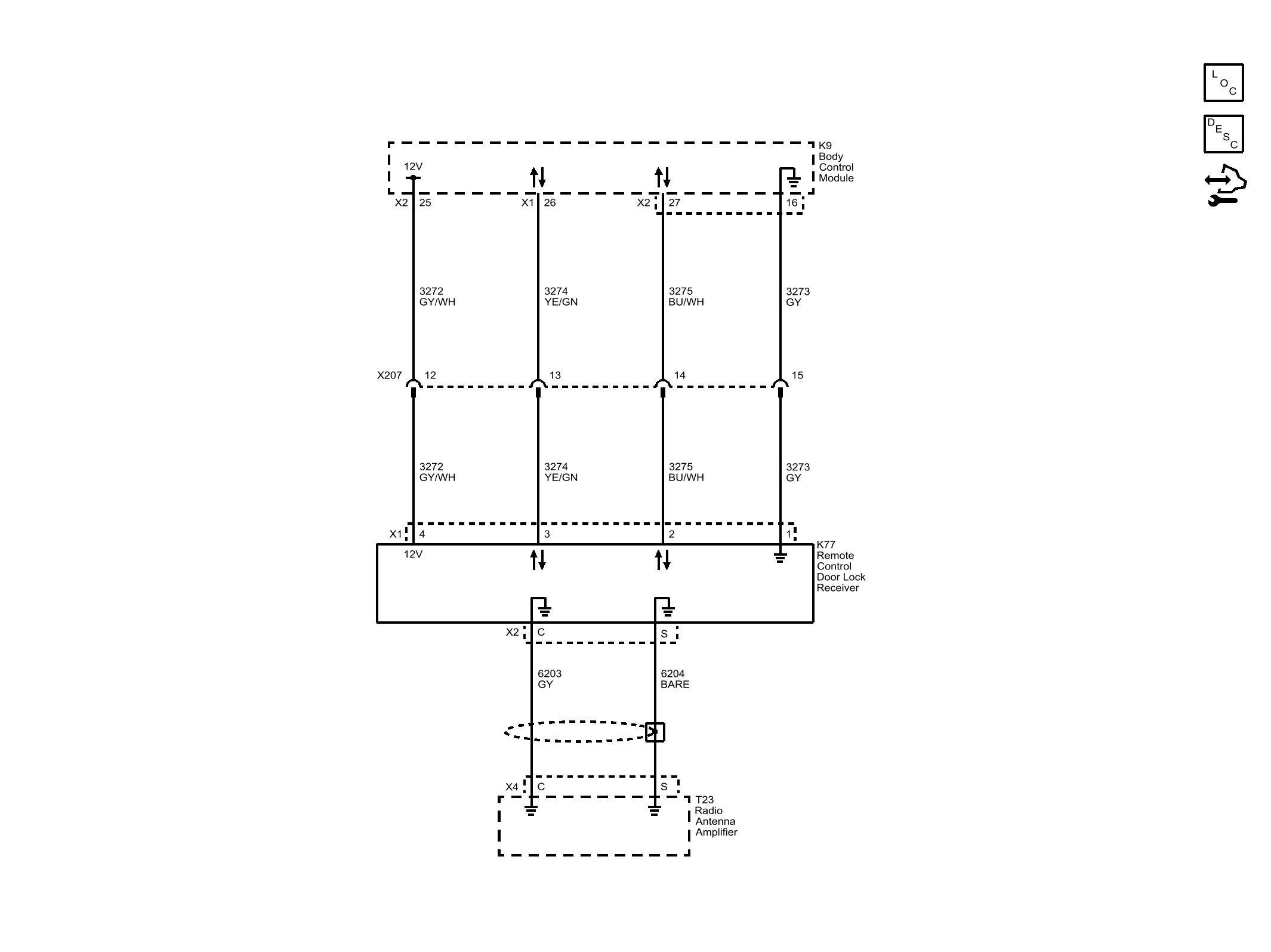

Home >> Chevrolet >> 2016 >> Caprice 6.0L Eng VIN 2 >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Keyless Entry System And Remote Functions >> Schematic and Routing Diagrams >> Remote Function Wiring Schematics >> Keyless Entry
