Top of Engine Components (LT1)

Top of Engine Components (LT1)

Items
1: B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor
2: Q17B Fuel Injector 2 Q17B Fuel Injector 2 (LT1)
3: Q17D Fuel Injector 4 Q17D Fuel Injector 4 (LT1)
4: Q17F Fuel Injector 6 (LGX or LT1)
5: Q17H Fuel Injector 8 (LT1) Q17H Fuel Injector 8 (LT1)
6: G18 High Pressure Fuel Pump G18 High Pressure Fuel Pump
7: B47B Fuel Rail Pressure Sensor B47B Fuel Rail Pressure Sensor (LT1)
8: Q17G Fuel Injector 7 (LT1) Q17G Fuel Injector 7 (LT1)
9: Q17E Fuel Injector 5 (LGX or LT1) Q17E Fuel Injector 5 (LT1)
10: Q17C Fuel Injector 3 Q17C Fuel Injector 3 (LT1)
11: Q17A Fuel Injector 1 Q17A Fuel Injector 1 (LT1)
12: Q43 Valve Lifter Oil Manifold Assembly (LT1)
13: B37B Engine Oil Pressure Sensor B37B Engine Oil Pressure Sensor (LGX)

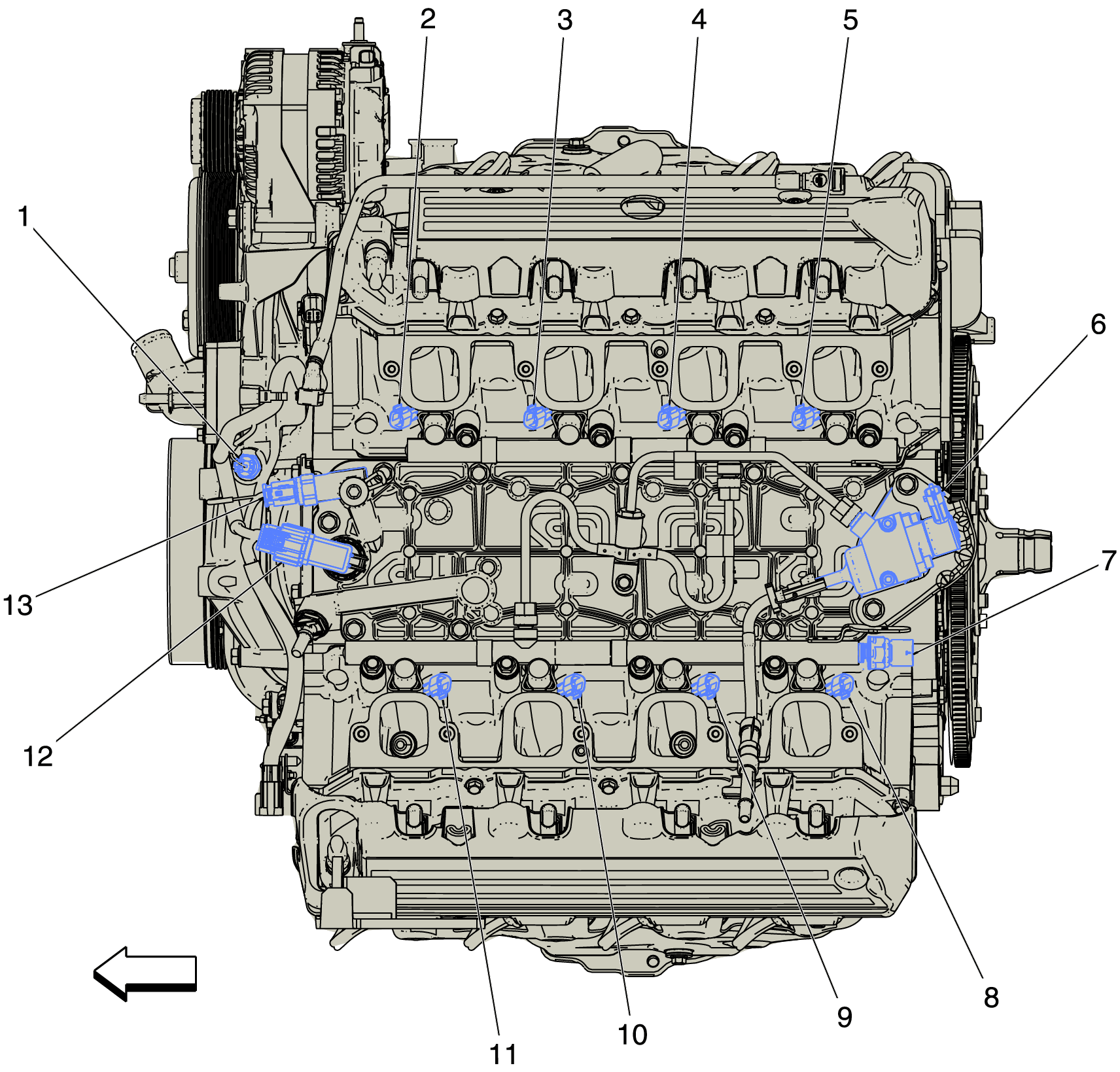

Fig 1: Top of Engine Components (LT1)
GM4279279Courtesy of GENERAL MOTORS COMPANY
