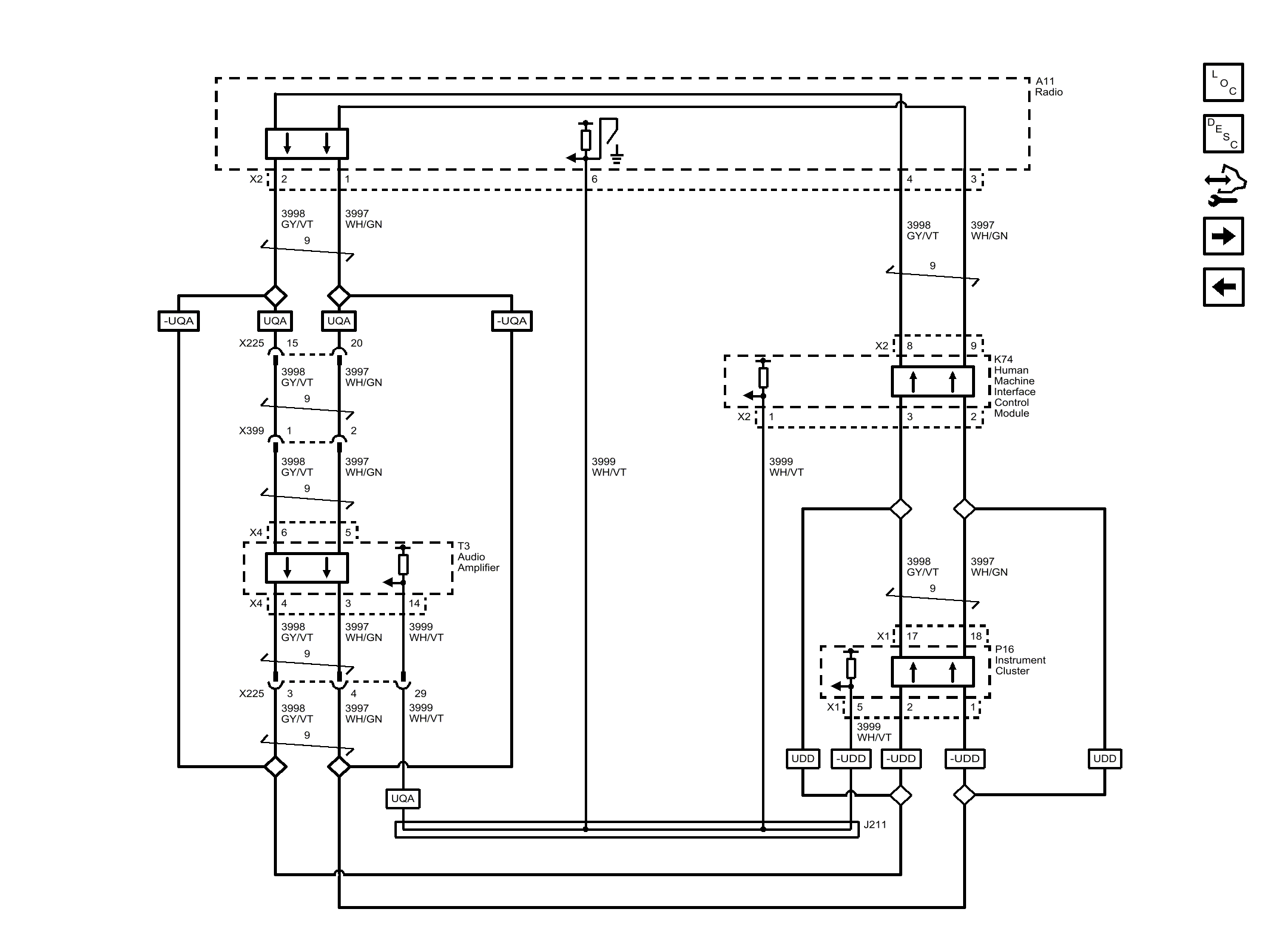

Home >> Chevrolet >> 2016 >> Camaro SS, 2D Convertible, Standard Trans >> Repair and Diagnosis >> Engine Performance >> System >> Data Communication System >> Schematic Wiring Diagrams >> Data Communication Wiring Schematics >> MOST Communication Bus (IO5/IO6)
