Engine Components - Right Side (LT1)

Engine Components - Right Side (LT1)

Items
1: T8H Ignition Coil 8 (LT1) T8H Ignition Coil 8
2: T8F Ignition Coil 6 (LGX or LT1) T8F Ignition Coil 6 (LT1)
3: T8D Ignition Coil 4 T8D Ignition Coil 4 (LGX)
4: T8B Ignition Coil 2 T8B Ignition Coil 2 (LT1)
5: G13 Generator G13 Generator X1G13 Generator X2
6: B68B Knock Sensor 2 B68B Knock Sensor 2
7: B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor (LT1/LTG)
8: B35 Engine Oil Level Switch B35 Engine Oil Level Switch
9: M64 Starter Motor M64 Starter Motor

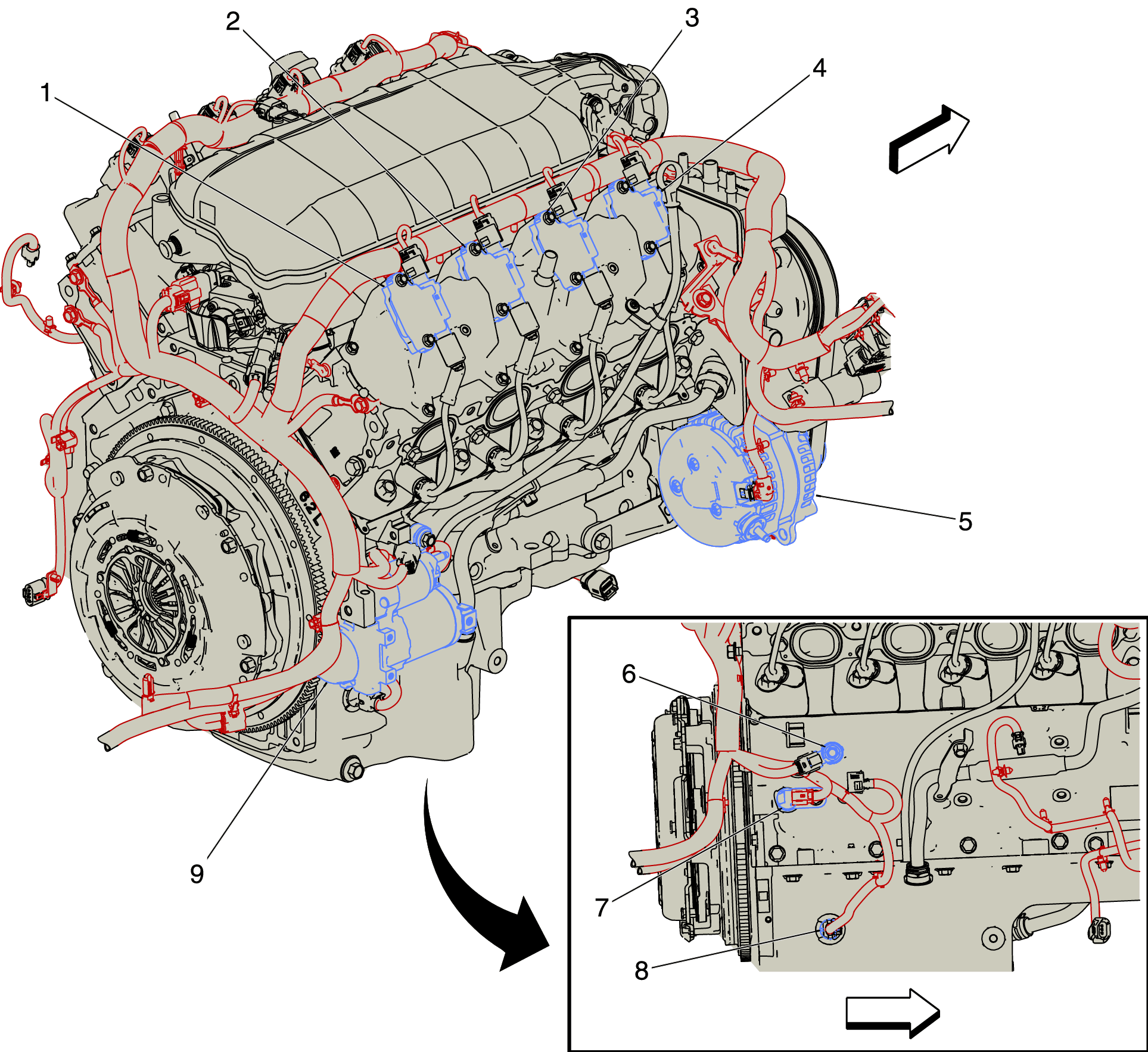

Fig 1: Engine Components - Right Side (LT1)
GM4276624Courtesy of GENERAL MOTORS COMPANY
