Power, Ground and Subsystem References (1 of 3) (Late Production)

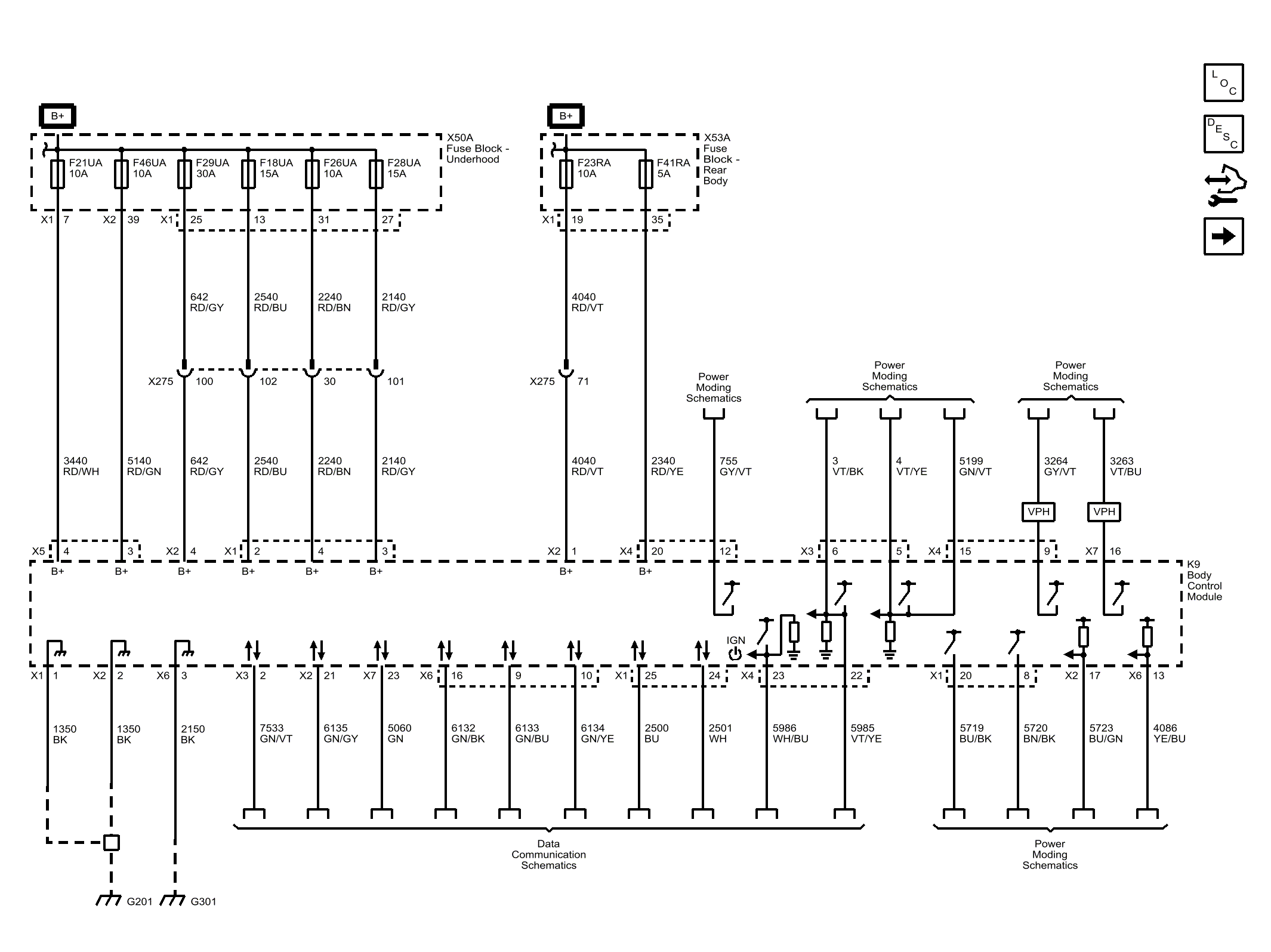

Fig 1: Power, Ground and Subsystem References (1 of 3) (Late Production)

GM4241237

Courtesy of GENERAL MOTORS COMPANY
