Power, Ground and Subsystem References (1 of 3) (Early Production)

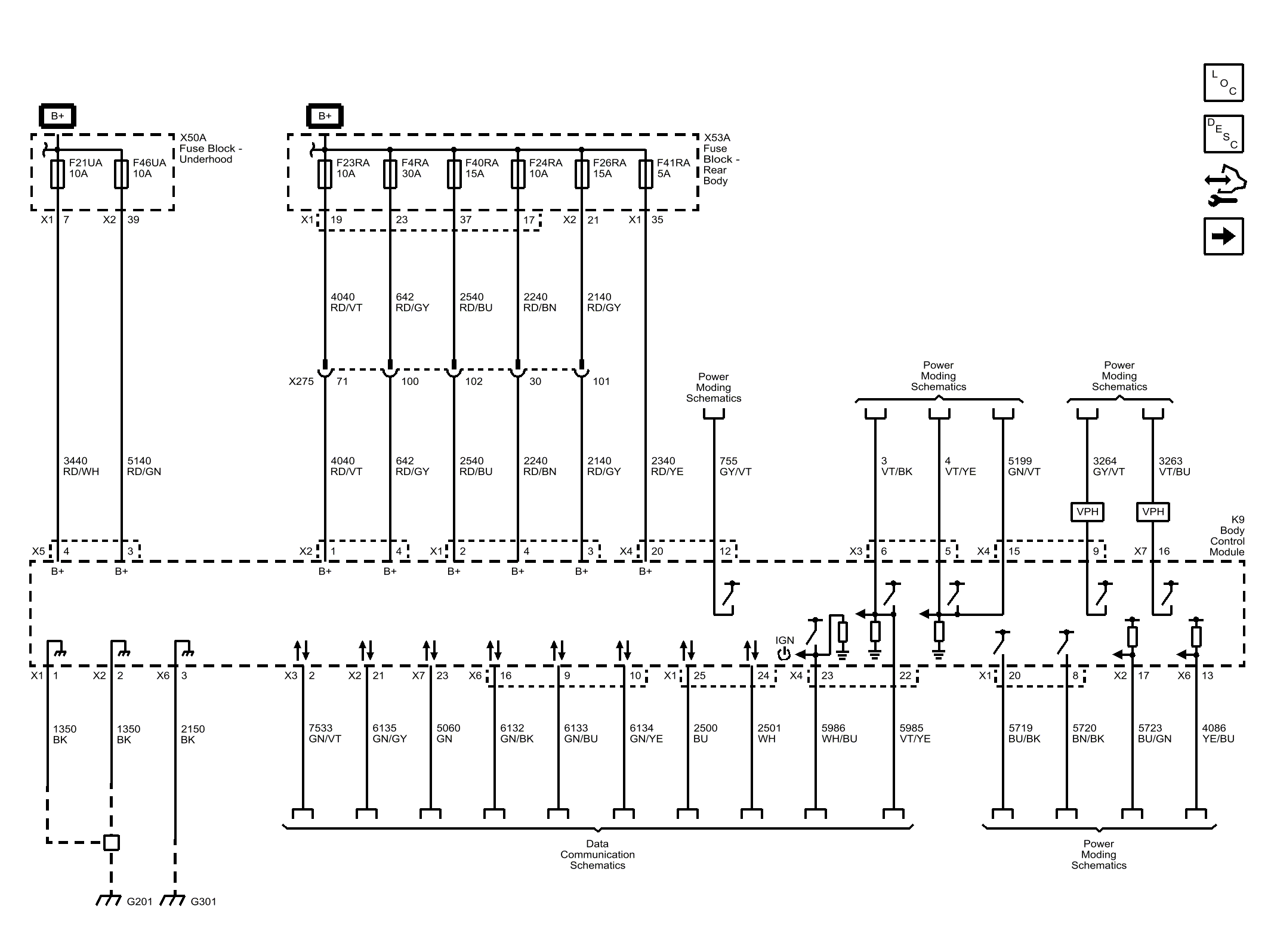

Fig 1: Power, Ground and Subsystem References (1 of 3) (Early Production)

GM4232256

Courtesy of GENERAL MOTORS COMPANY
