Mass Airflow Sensor with Intake Air Temperature Sensor Replacement

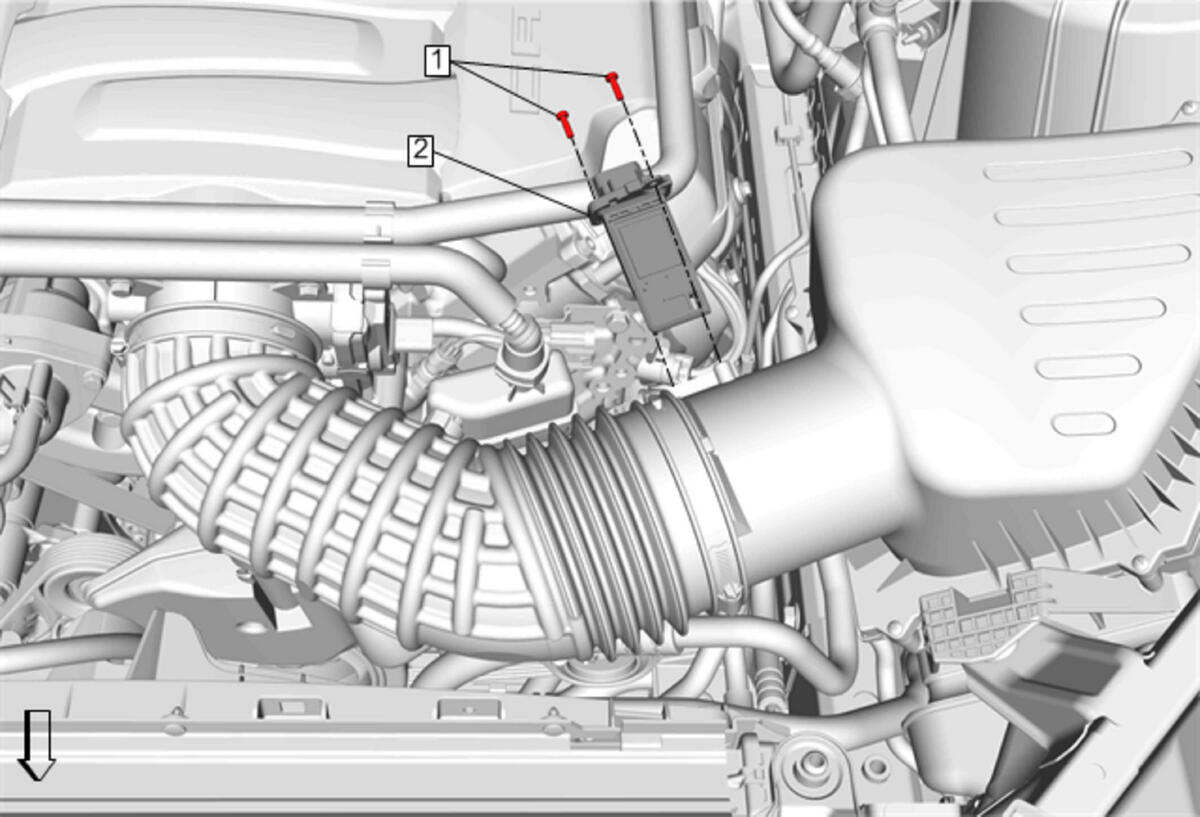

Fig 1: Mass Airflow Sensor with Intake Air Temperature Sensor
GM4194030Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Mass Airflow Sensor with Intake Air Temperature Sensor Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
8 N.m (70 lb in)
2 Mass Airflow Sensor with Intake Air Temperature Sensor
Procedure
Disconnect the electrical connector.
