Installation Procedure

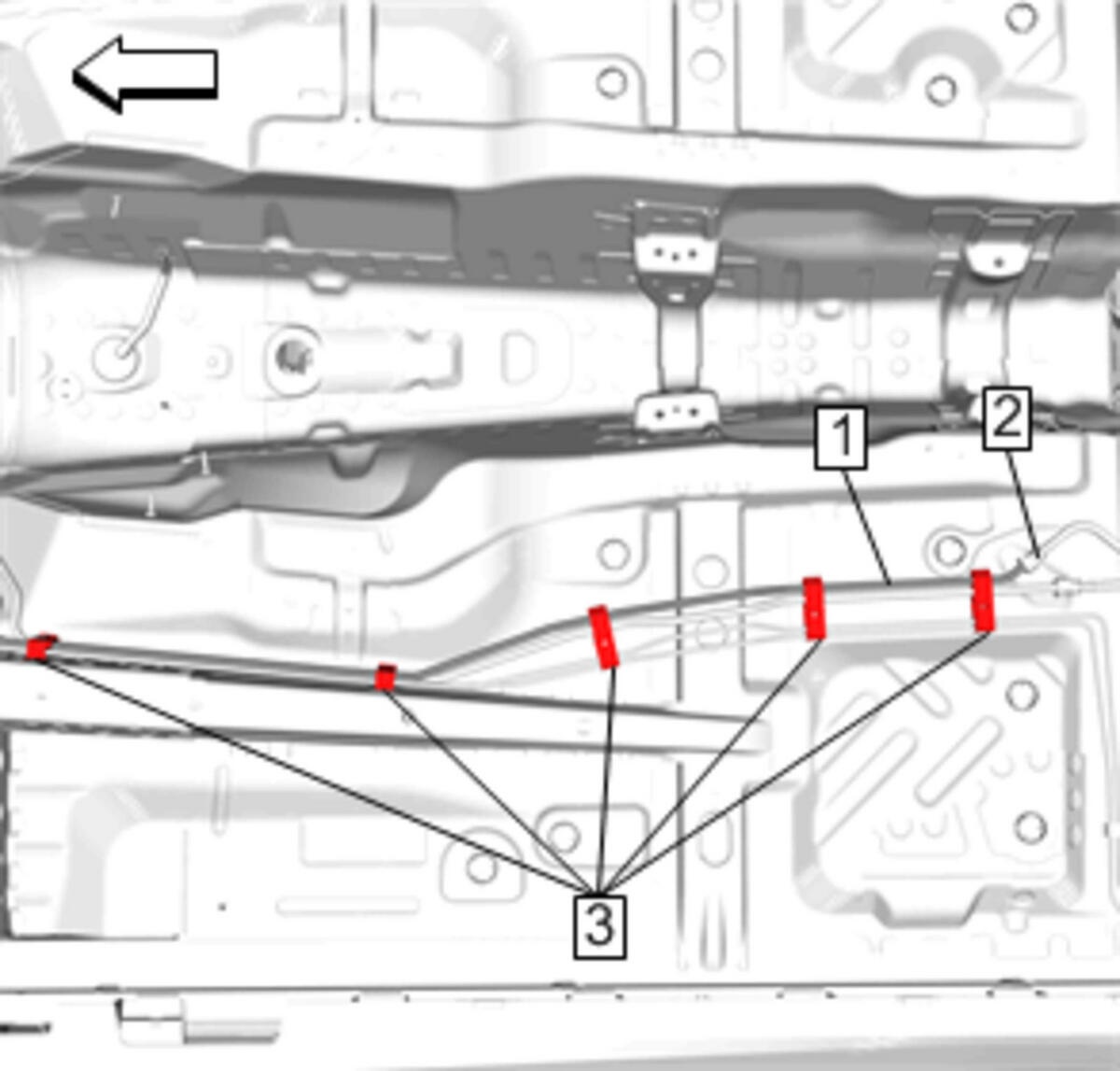

    Fig 1: Evaporative Emission Pipe
    GM4196763Courtesy of GENERAL MOTORS COMPANY
  1. Install Fuel Feed Pipe (1) at Retainer (3) (Qty: 5)
  2. Connect Fuel Feed Pipe (1) at Fuel Pump Fuel Feed Hose (2) - Plastic Collar Quick Connect Fitting Service
  3. Install Warm Up Three-Way Catalytic Converter Replacement (LH - LGX)Warm Up Three-Way Catalytic Converter Replacement (LTG)Warm Up Three-Way Catalytic Converter Replacement (RH - LGX) at Right Side.
  4. Install Front Body Exhaust Heat Shield Replacement (Right)Front Body Exhaust Heat Shield Replacement (Left)
  5. Install Underbody Front Air Deflector Replacement - Right Side
  6. Lower the vehicle.

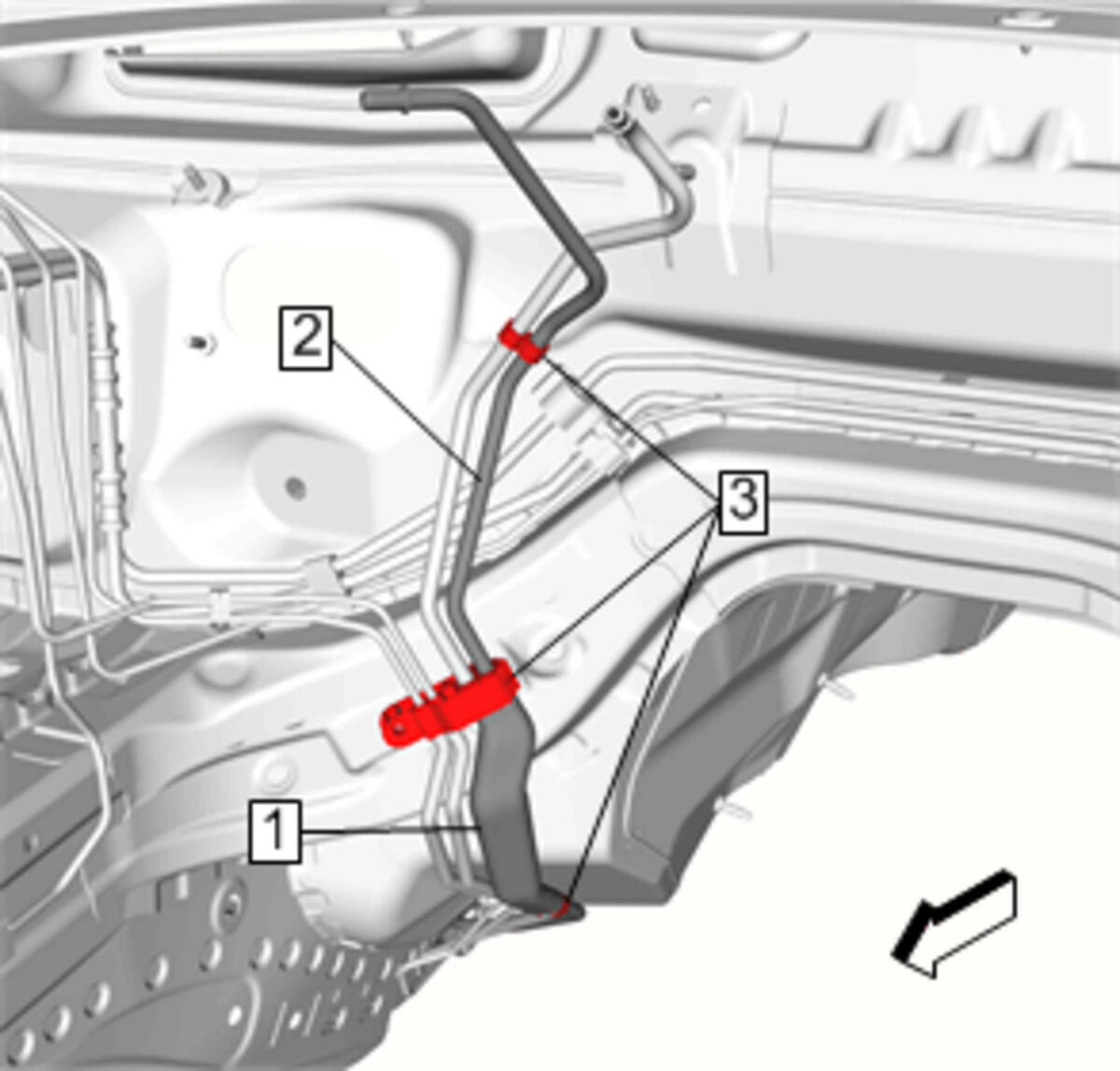

    7. Fig 2: Fuel Feed Pipe At Retainer
    GM4205317Courtesy of GENERAL MOTORS COMPANY
  7. Install Fuel Feed Pipe (2) at Retainer (3) (Qty: 3)
  8. Install Heat Sleeve (1)
  9. Install Fuel Feed Front Hose Replacement
