Air Cleaner Element Replacement

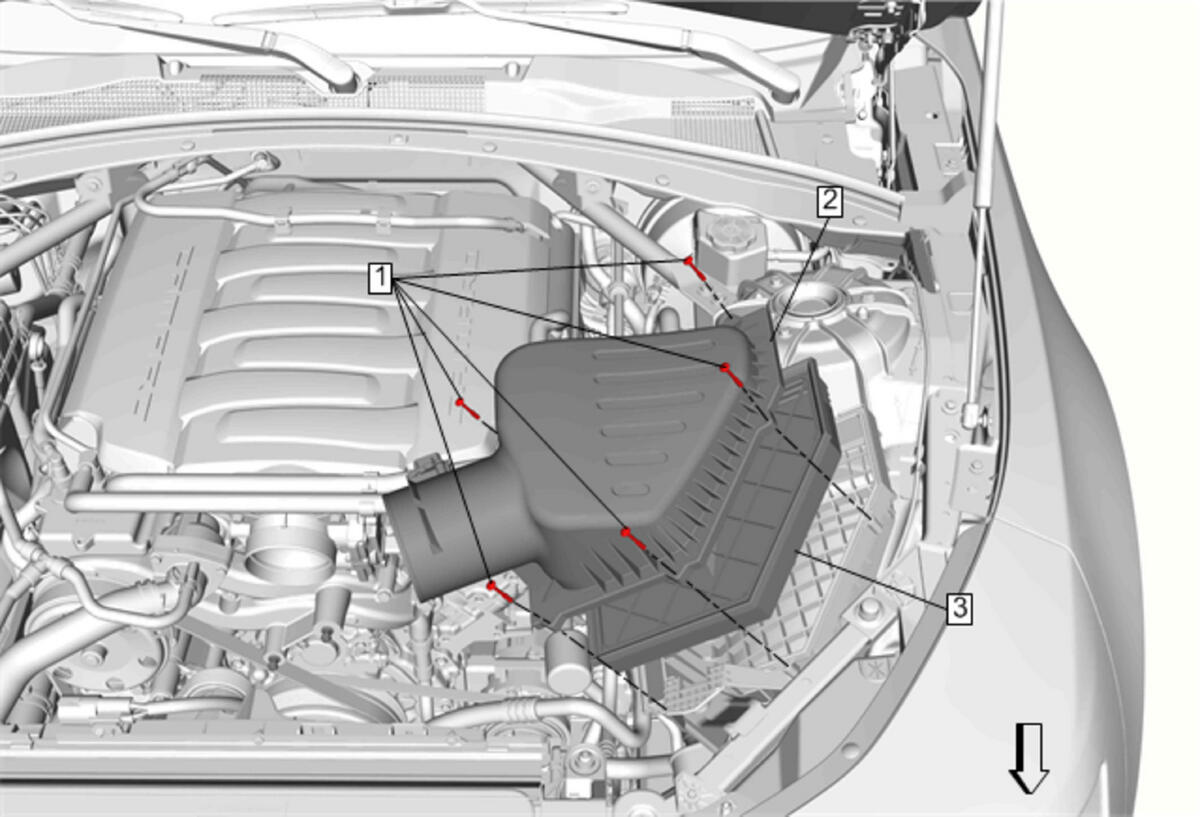

Fig 1: Air Cleaner Element
GM4194576Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Air Cleaner Upper Housing Bolt (Qty: 5)
CAUTION:

Refer to Fastener Caution .


Tighten
2 N.m (18 lb in)
2 Air Cleaner Upper Housing
3 Air Cleaner Element
