Low Frequency Console Antenna Replacement

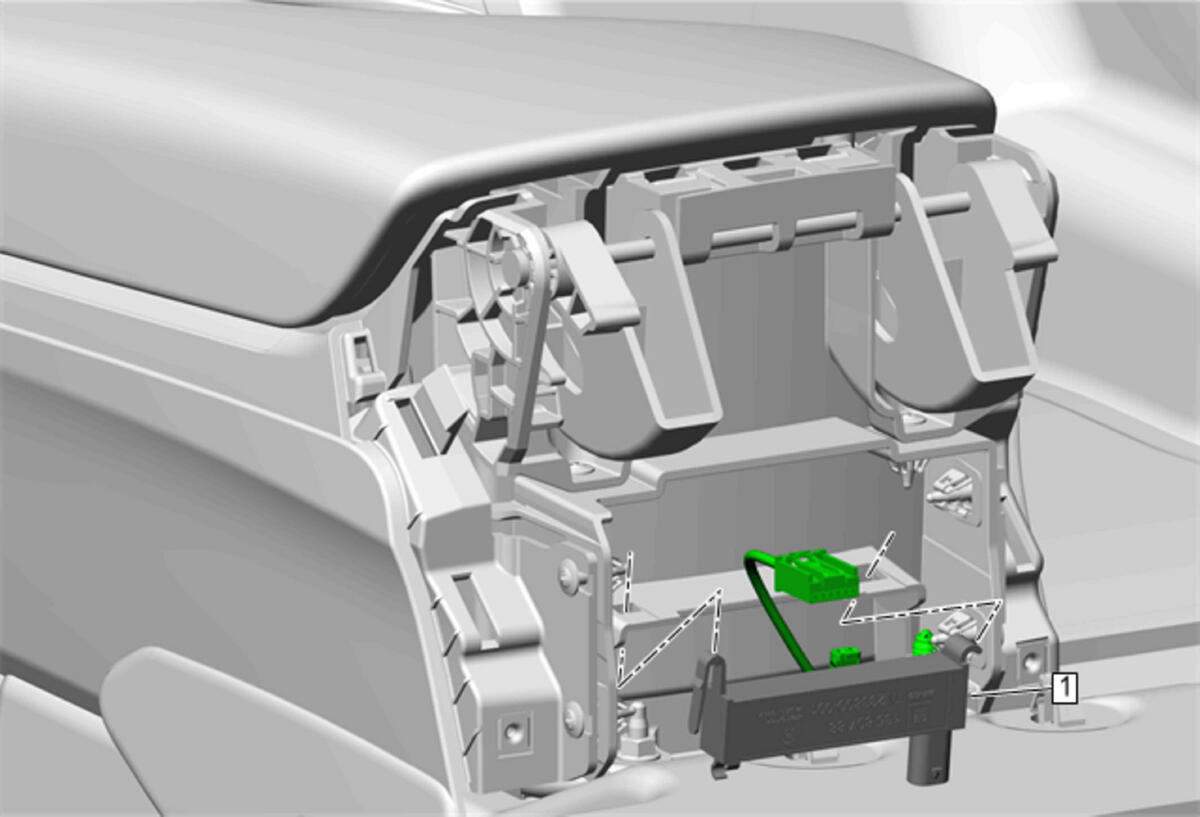

Fig 1: Low Frequency Console Antenna
GM4197262Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Floor Console Rear Trim Panel-Endcap»Remove — Front Floor Console Rear Trim Panel Replacement (Side Panel Front)Front Floor Console Rear Trim Panel Replacement (Endcap)
1 Low Frequency Console Antenna

Procedure

  1. Disconnect the electrical connector.
  2. Release the retaining tabs.
