Headlamp LED Driver Module Replacement

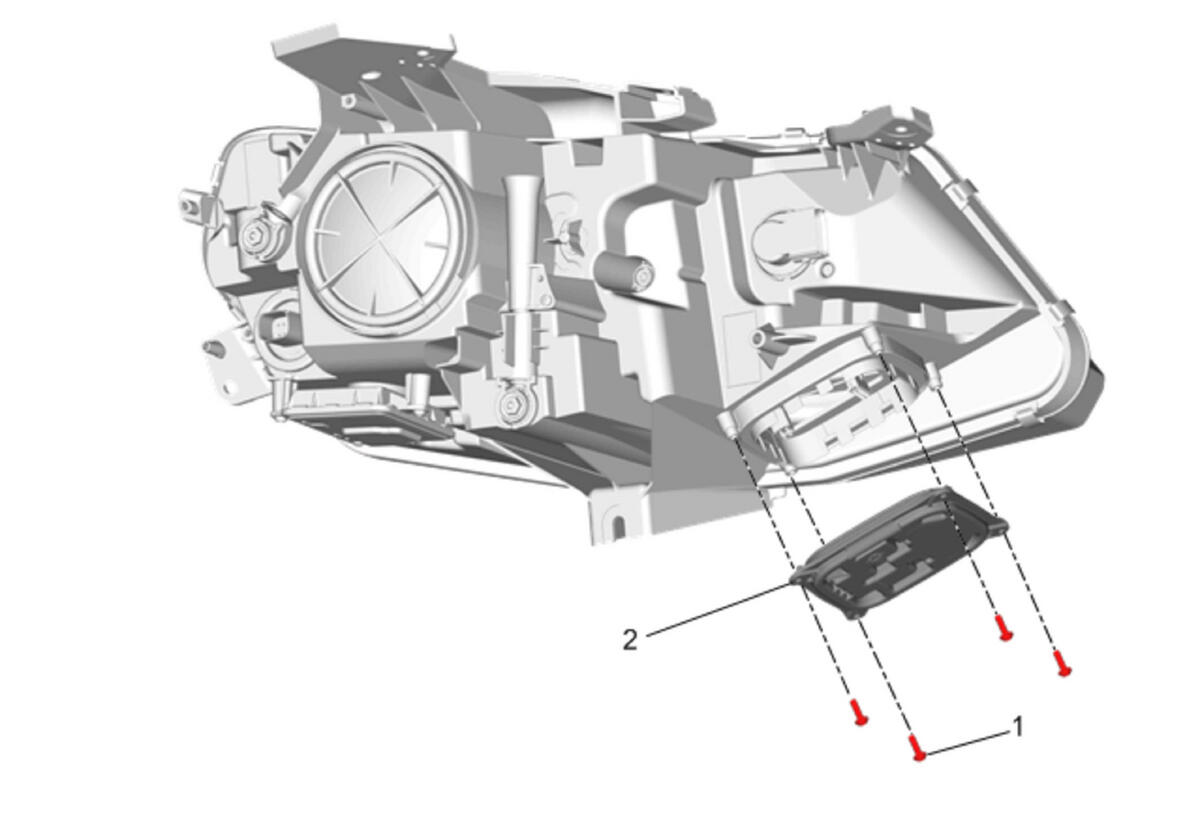

Fig 1: Headlamp LED Driver Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Headlamp Replacement (HID) Headlamp Replacement (Halogen)
1	Headlamp LED Driver Module Fastener (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Headlamp LED Driver Module
