Driver Information Display Replacement

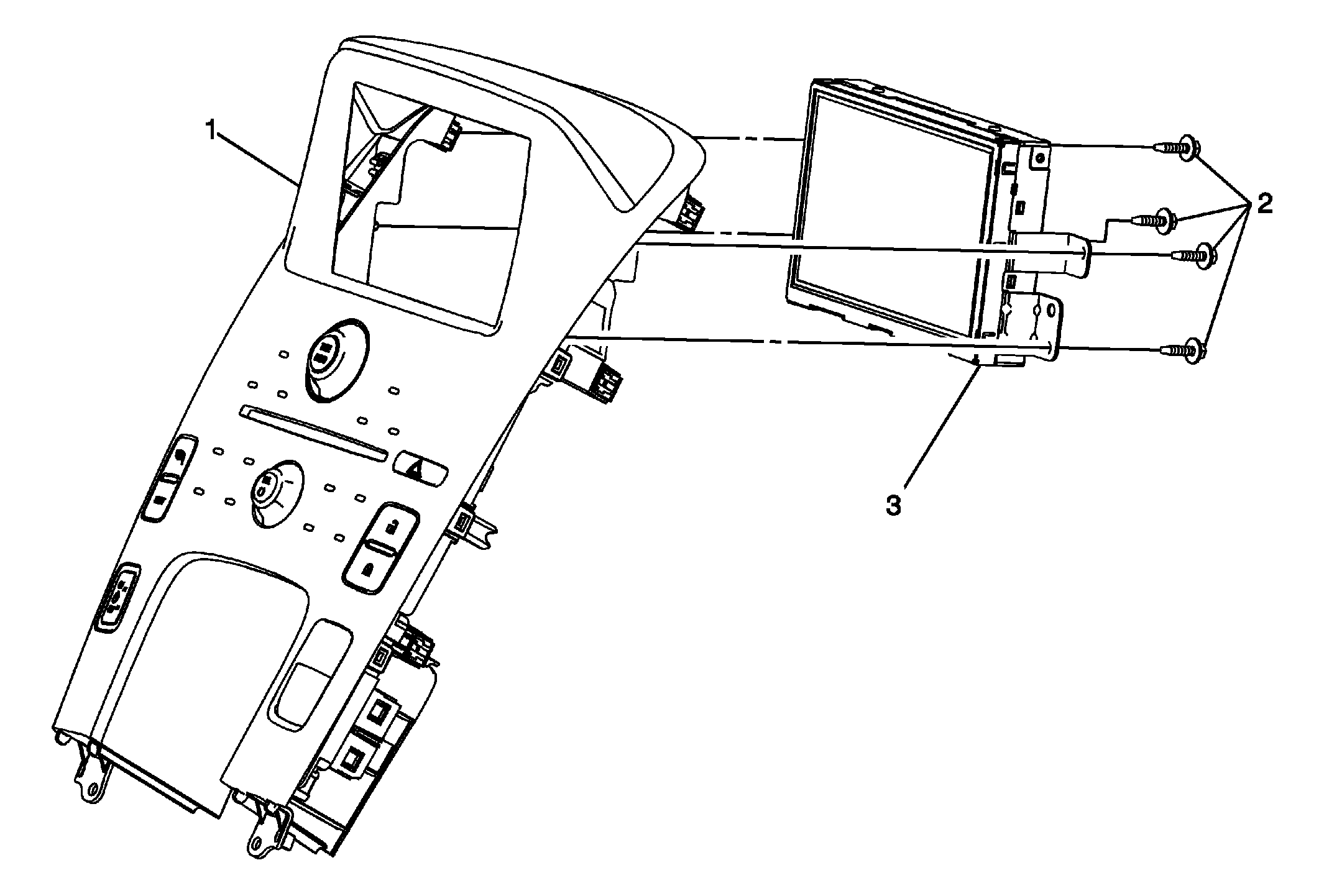

Fig 1: Driver Information Display

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Radio Control Assembly Procedure  Refer to Radio Control Assembly Replacement .
2	Drivers Information Display Fastener (Qty: 4) CAUTION: Refer to Fastener Caution .
3	Drivers Information Display Assembly Procedure  Refer to Control Module References for programming and setup information.
