Moveable Window Wiring Schematics: Driver

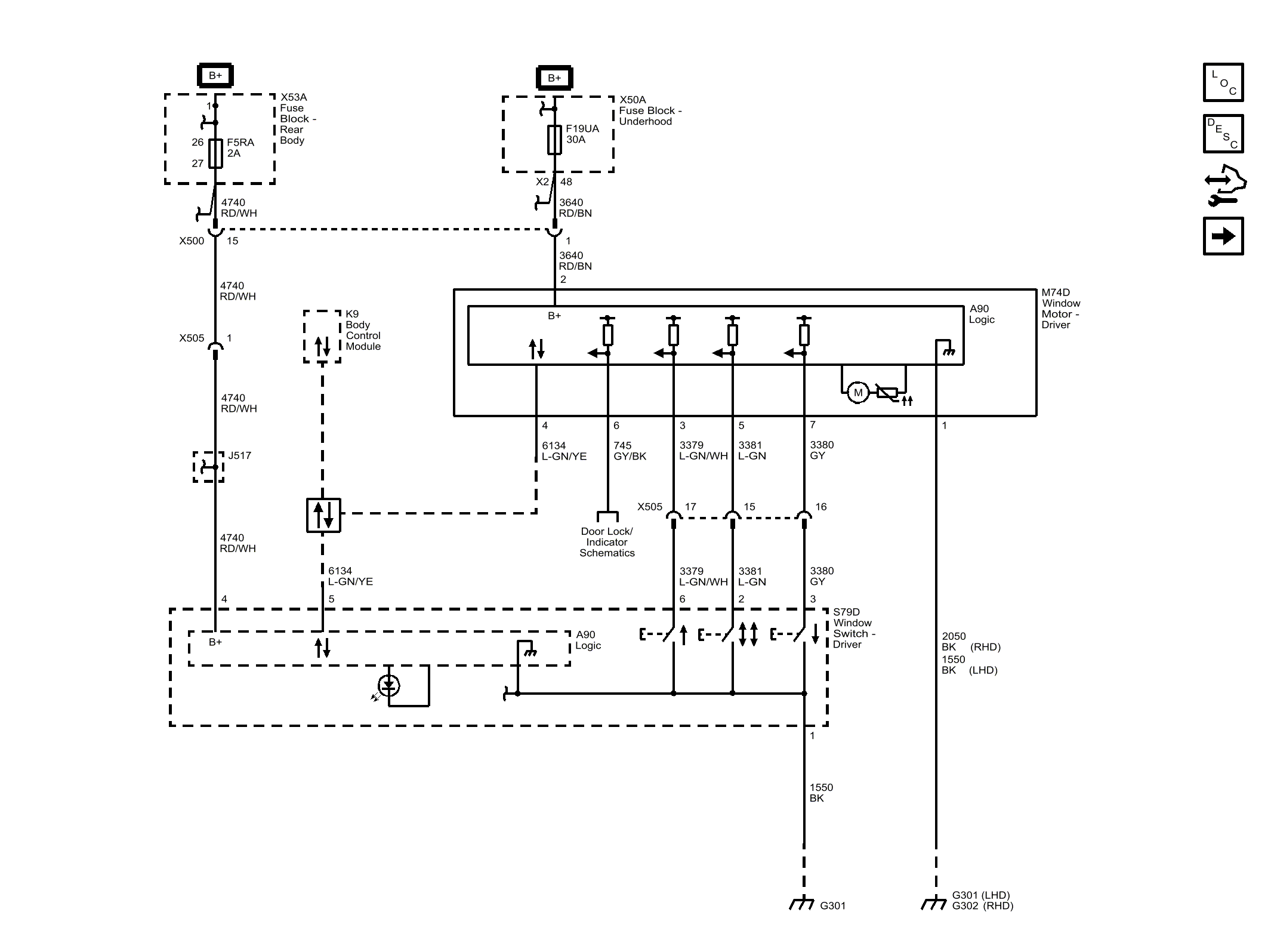

Fig 1: Driver

GM3745279

Courtesy of GENERAL MOTORS COMPANY
