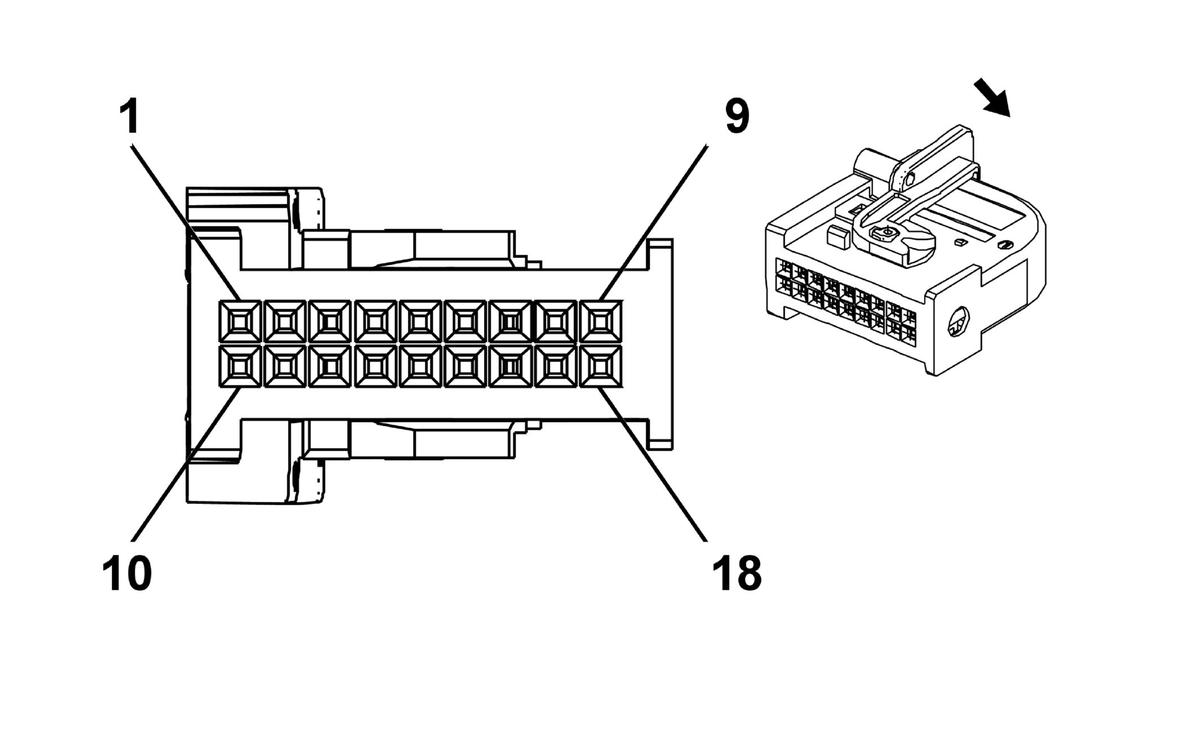

A12 Digital Radio Receiver Control Module
|
|
Connector Part Information
- Harness Type: Body
- OEM Connector: PPI0000557
- Service Connector: 13292662
- Description: 18-Way F 0.64 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
13579918 |
J-35616-64B (LT BU) |
J-38125-12A |
928999-5 |
15 |
J |
J |
| II |
13579918 |
J-35616-64B (LT BU) |
J-38125-12A |
928999-5 |
15 |
H |
H |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
- |
- |
Not Occupied |
- |
- |
| 2 |
0.5 |
YE |
5169 |
Mid Speed GMLAN Serial Data (+) |
I |
- |
| 3 |
0.5 |
YE |
5169 |
Mid Speed GMLAN Serial Data (+) |
I |
- |
| 4 |
0.5 |
RD/L-BU |
1240 |
Battery Positive Voltage |
I |
- |
| 5 |
0.5 |
BK |
1573 |
Front Audio Drain Wire |
I |
- |
| 6 |
0.35 |
BN/WH |
367 |
Remote Radio Left Audio Signal |
II |
- |
| 7 |
0.35 |
BN/BK |
372 |
Remote Radio Audio (-) |
II |
- |
| 8 |
0.35 |
L-GN/WH |
368 |
Remote Radio Right Audio Signal (1) |
II |
- |
| 9 |
0.35 |
GY/WH |
388 |
Remote Radio Right Audio Signal (2) |
II |
- |
| 10 |
- |
- |
- |
Not Occupied |
- |
- |
| 11 |
0.5 |
WH |
5170 |
Mid Speed GMLAN Serial Data (-) |
I |
- |
| 12 |
0.5 |
WH |
5170 |
Mid Speed GMLAN Serial Data (-) |
I |
- |
| 13 |
0.5 |
BK |
1450 |
Ground |
I |
- |
| 14-18 |
- |
- |
- |
Not Occupied |
- |
- |
