Instrument Panel Components (RHD) (2 of 2)

Instrument Panel Components (RHD) (2 of 2)

Items
1: K9 Body Control Module K9 Body Control Module X1 X1 , K9 Body Control Module X2 X2 , K9 Body Control Module X3 X3 , K9 Body Control Module X4 X4 , K9 Body Control Module X5 X5 , K9 Body Control Module X6 X6 and K9 Body Control Module X7 X7
2: B22 Brake Pedal Position Sensor B22 Brake Pedal Position Sensor
3: B201 Brake Control Brake Pedal Position Sensor B201 Brake Control Brake Pedal Position Sensor
4: K89 Immobilizer Control Module K89 Immobilizer Control Module
5: E32 Cigarette Lighter Receptacle E32 Cigarette Lighter Receptacle
6: B101 Immobilizer Antenna
7: K33 HVAC Control Module K33 HVAC Control Module X1 X1 , K33 HVAC Control Module X2 X2 and K33 HVAC Control Module X3 X3
8: K46 Radio Antenna Module<!--Old, use T25--> K46 Radio Antenna Module X1 X1
9: F114P Knee Air Bag - Passenger F114P Knee Air Bag - Passenger
10: T10B Keyless Entry Antenna - Instrument Panel Compartment T10B Keyless Entry Antenna - Instrument Panel
11: F114D Knee Air Bag - Driver F114D Knee Air Bag - Driver
12: B107 Accelerator Pedal Position Sensor B107 Accelerator Pedal Position Sensor

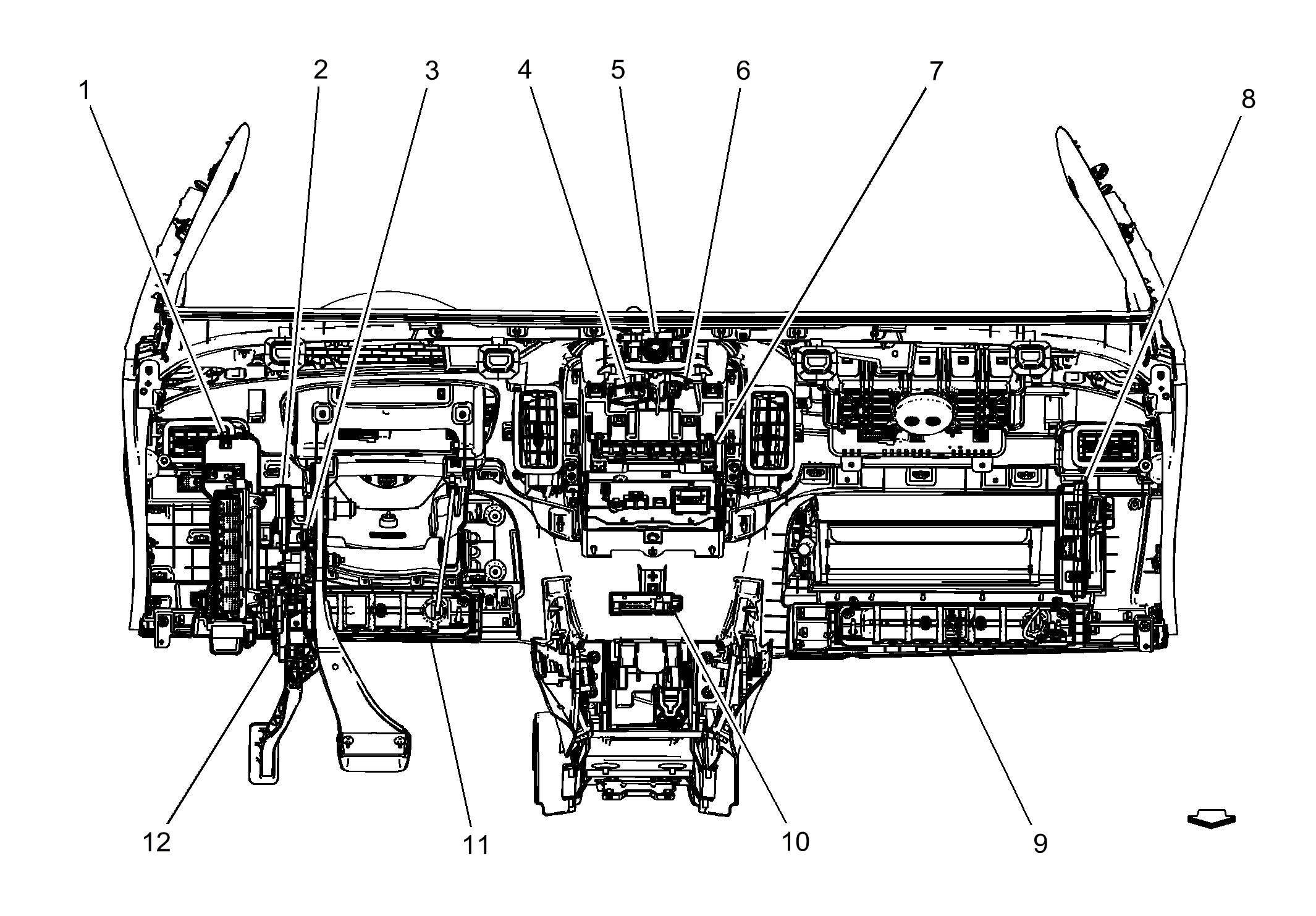

Fig 1: Instrument Panel Components (RHD) (2 Of 2)
GM3753752Courtesy of GENERAL MOTORS COMPANY
