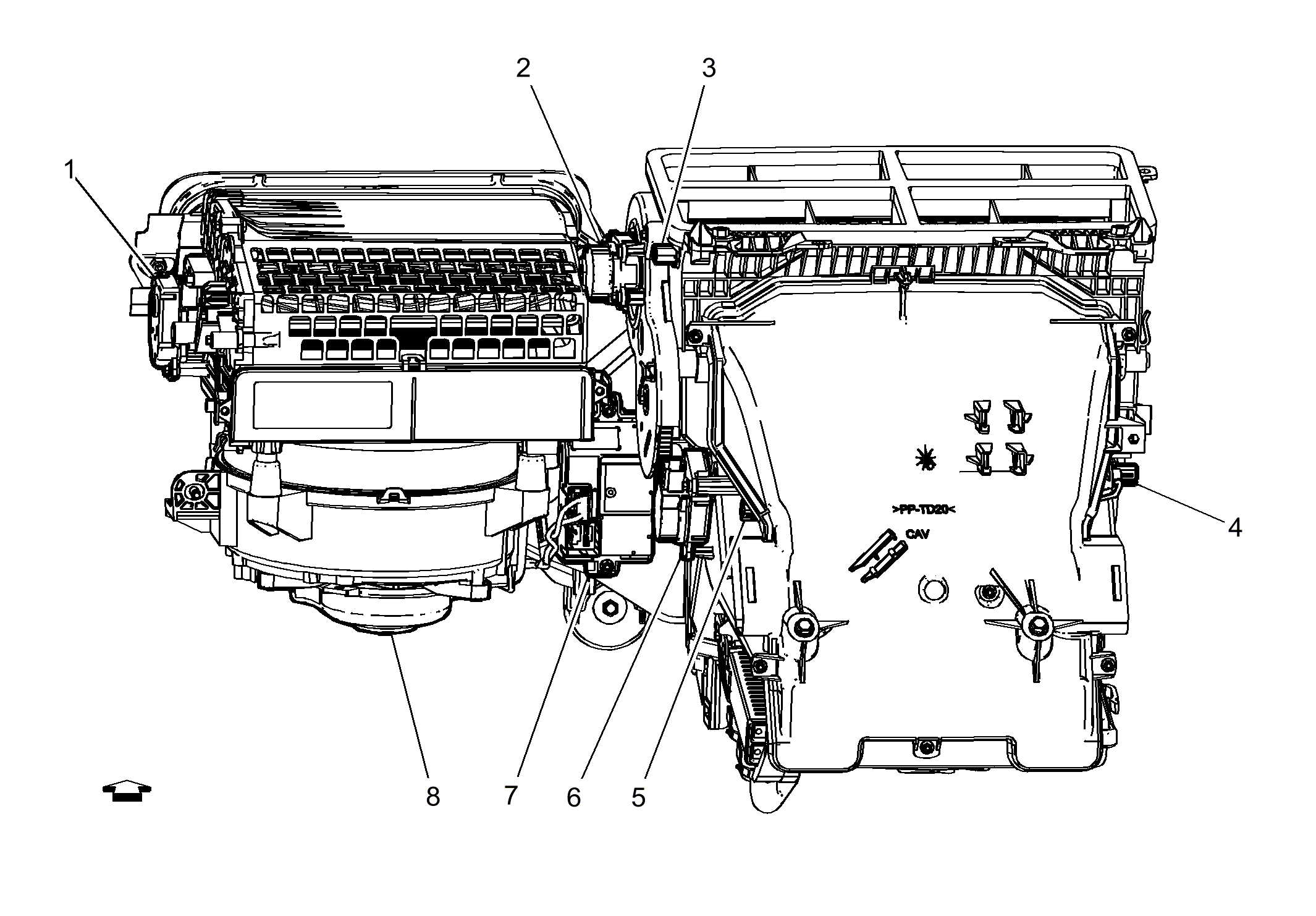

Instrument Panel - HVAC Components (RHD)
Instrument Panel - HVAC Components (RHD)
| Items |
|---|
| 1: M46 Air Recirculation Door Actuator M46 Air Recirculation Door Actuator |
| 2: M37 Mode Door Actuator M37 Mode Door Actuator |
| 3: B7F Air Temperature Sensor - Duct Upper B7H Air Temperature Sensor - Duct Left Upper |
| 4: B39 A/C Evaporator Temperature Sensor B39 A/C Evaporator Temperature Sensor |
| 5: B7B Air Temperature Sensor - Duct Lower B7D Air Temperature Sensor - Duct Left Lower |
| 6: M6 Air Temperature Door Actuator M6 Air Temperature Door Actuator |
| 7: K8 Blower Motor Control Module K8 Blower Motor Control Module X1 X1 and K8 Blower Motor Control Module X2 |
| 8: M8 Blower Motor M8 Blower Motor |
