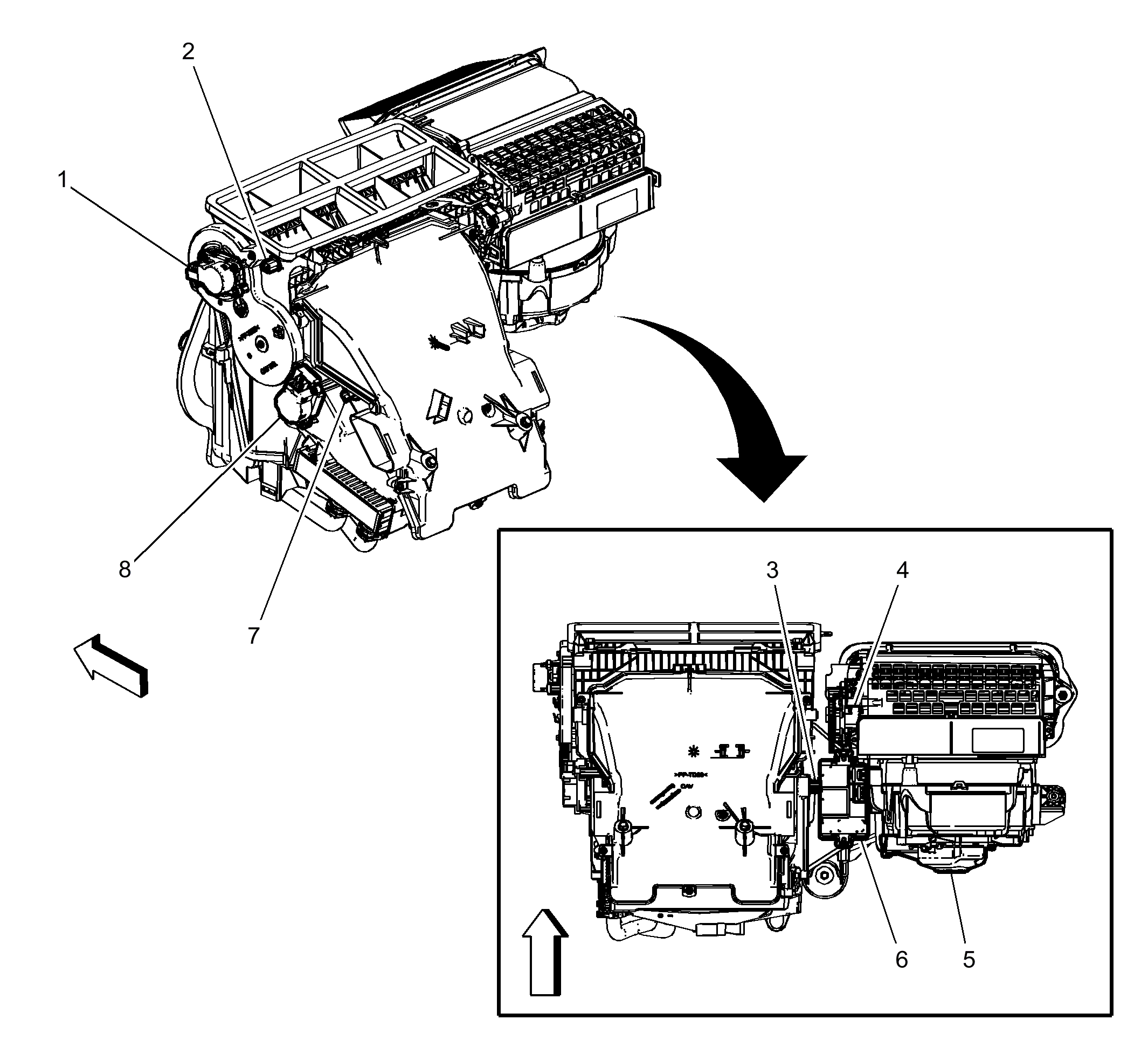

Instrument Panel - HVAC Components (LHD)
Instrument Panel - HVAC Components (LHD)
| Items |
|---|
| 1: M37 Mode Door Actuator M37 Mode Door Actuator |
| 2: B7F Air Temperature Sensor - Duct Upper B7H Air Temperature Sensor - Duct Left Upper |
| 3: B39 A/C Evaporator Temperature Sensor B39 A/C Evaporator Temperature Sensor |
| 4: M46 Air Recirculation Door Actuator M46 Air Recirculation Door Actuator |
| 5: M8 Blower Motor M8 Blower Motor |
| 6: K8 Blower Motor Control Module K8 Blower Motor Control Module X1 X1 and K8 Blower Motor Control Module X2 |
| 7: B7B Air Temperature Sensor - Duct Lower B7D Air Temperature Sensor - Duct Left Lower |
| 8: M6 Air Temperature Door Actuator M6 Air Temperature Door Actuator |
